American Standard WILLIAMSBURG 2804 - Manual

2804
Certified to comply with ANSI A112.18.1
Installation
Instructions
Centerset Lavatory Faucet with
Speed Connect™ Drain
Adjustable Wrench Screwdriver Channel Locks
Required tools
Tubing Cutter
1

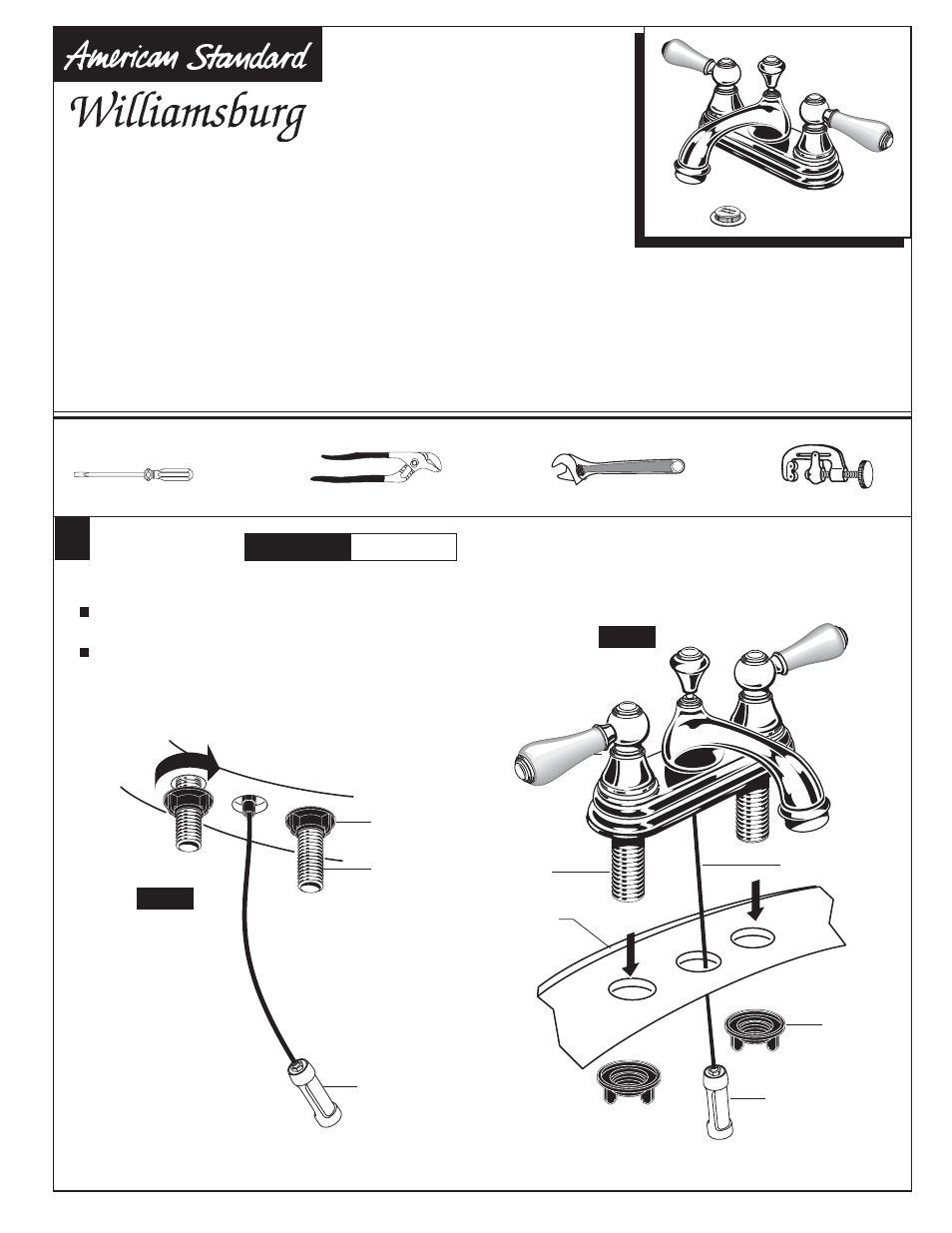

INSTALL FAUCET
SINK OR
MOUNTING
SURFACE
POP-UP
CABLE
Turn off hot and cold water supplies before beginning.
Insert FAUCET (1) and CABLE CONNECTOR (2) through
mounting holes of Sink or mounting surface.
Fig. A.
Assemble LOCKNUTS (3) onto SHANKS (4) ( from under
side of Sink. Hand tighten firmly.
Fig. B.
2
2
1
4
3
3
4
(HAND TIGHTEN)
M 9 6 8 4 2 2 R e v . 1 . 2
T M
Fig. A.
Fig. B.
1
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
*Your new American Standard faucet is designed to work only with the Speed Connect drain. Heplful tips for
removing your current drain can be found in the Troubleshooting section of these instructions.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Speed Connect™ Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
Turn off water at
main supply.
CAUTION
