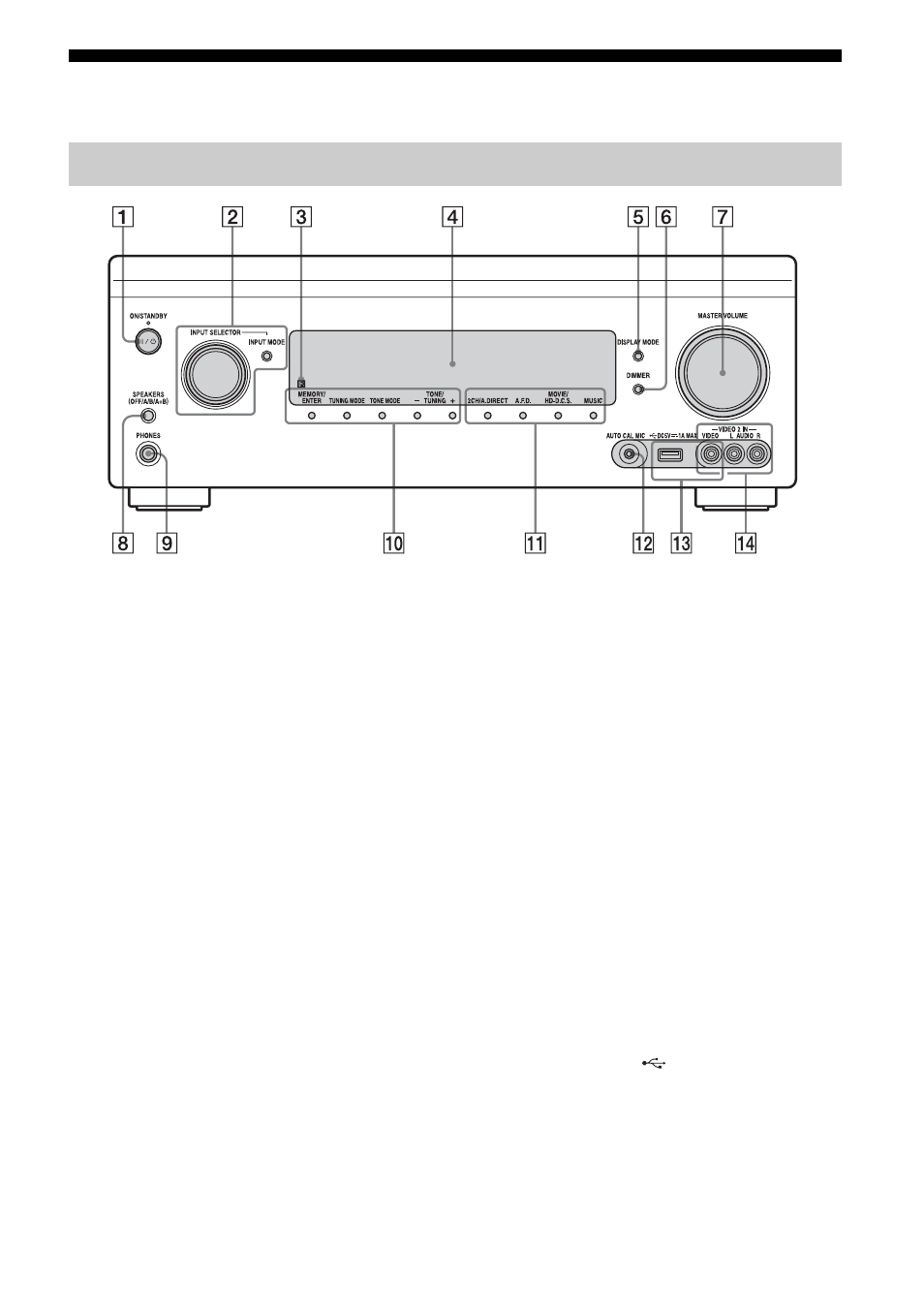

Description and location of parts
A ?/1 ON/STANDBY
Turns the receiver on or off.
The lamp above the button lights up as
follows:
Green: The receiver is turned on.
Amber: The receiver is in standby mode,
and
– “Control for HDMI” (page 103) or
“Network Standby” (page 105) is set to
“On.”
– “Pass Through” (page 103) is set to
“On” or “Auto.”
– The receiver in zone 2 is turned on.
The lamp turns off when the receiver is in
standby mode and the above settings are
off.
B INPUT SELECTOR (page 48)
C Remote sensor
Receives signals from remote control.
D Display window (page 12)
E DISPLAY MODE (page 116)
F DIMMER
Press DIMMER repeatedly to adjust the
brightness of the display window.
G MASTER VOLUME (page 48)
H SPEAKERS (OFF/A/B/A+B)
I PHONES jack
Connects to headphones.
J MEMORY/ENTER, TUNING MODE,
TONE MODE, TONE/TUNING +/–
(page 57)
Press TONE MODE repeatedly to select
the speaker and range. Then press TONE/
TUNING +/– to adjust the bass/treble
level of the speaker.
K 2CH/A.DIRECT, A.F.D., MOVIE/
HD-D.C.S., MUSIC (page 58, 59)
L AUTO CAL MIC jack (page 92)
Connect the supplied optimizer
microphone for “Auto Calibration” to this
jack.
M iPod/iPhone (
(USB) port and
VIDEO IN jack) (page 33, 49, 50)
N VIDEO 2 IN jacks (page 33)
Front panel
