Inserting a battery

To insert a battery

Turn the computer over, and slide the LOCK/UNLOCK switch on the bottom of the computer to the UNLOCK
position.

Align the grooves and tabs on the battery with those on the back of the computer.

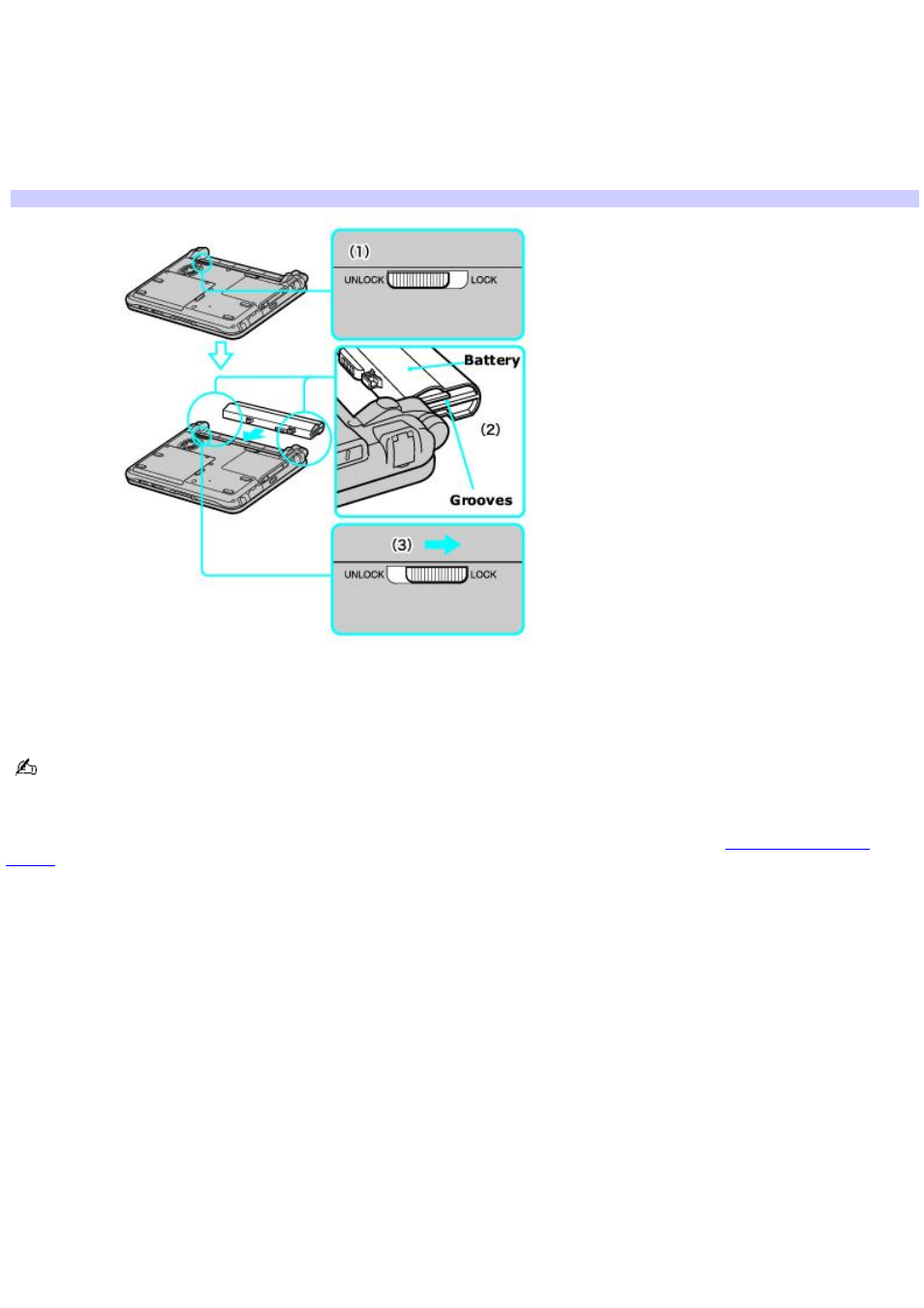

Inserting a Battery

Slide the battery into the computer until it clicks into place.

Slide the LOCK/UNLOCK switch into the LOCK position.

If the port replicator is attached to your computer, do not insert or remove the battery. Lifting and turning the

computer with the port replicator attached could cause a temporary loss of power.

Some software programs and peripheral devices prevent the system from entering Hibernate mode. If you are using a
program that prevents the system from entering Hibernate mode, save your data frequently. See

Using power saving

modes

for information on how you can manually activate a power saving mode.
