5. wiring on the right side, 6. front plate (l) assy, Mdr-if4000 – Sony MDR-IF4000 User Manual
Page 6
6
MDR-IF4000

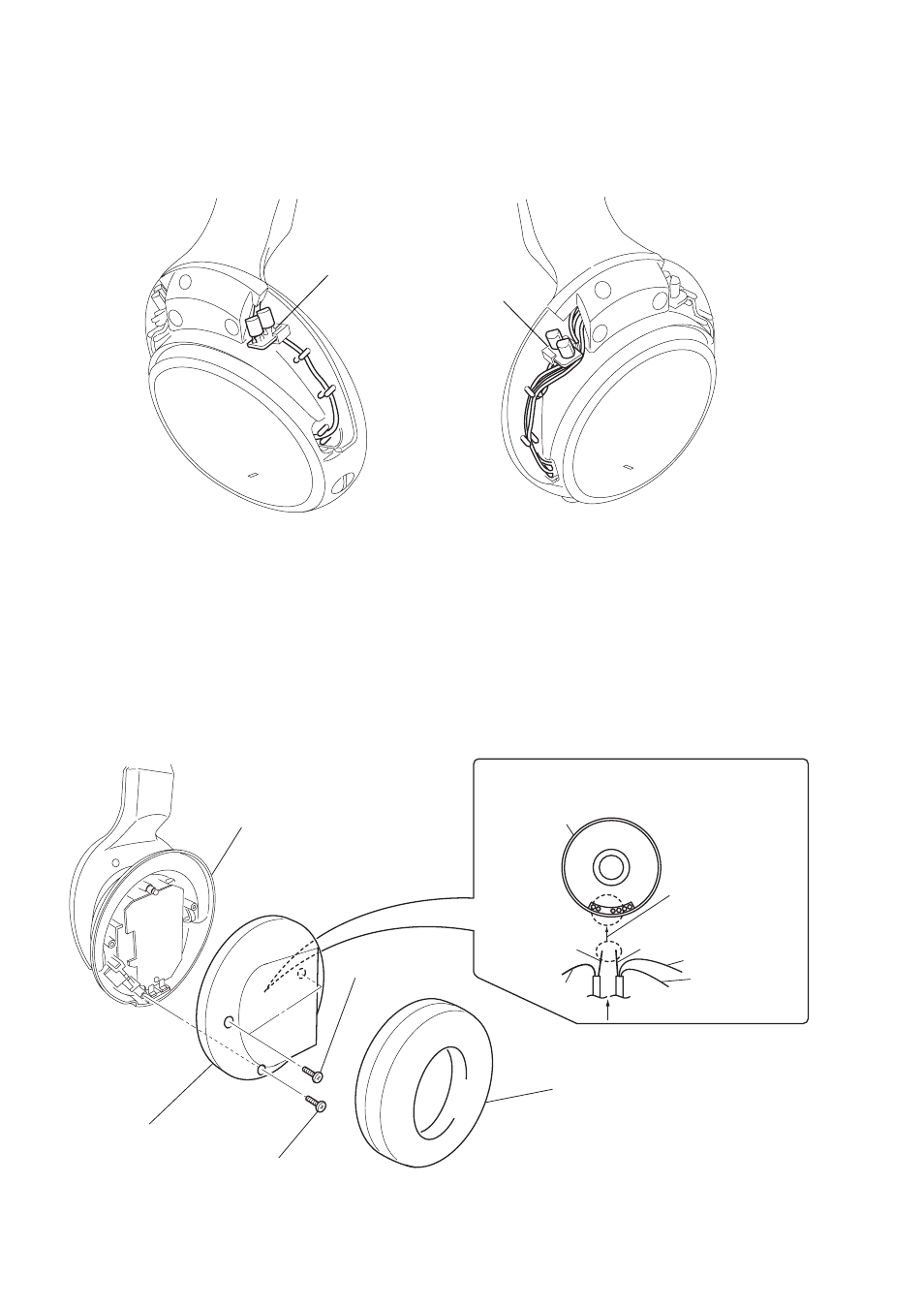

2-5.
WIRING ON THE RIGHT SIDE
2-6.
FRONT PLATE (L) ASSY
RD1 board (R-CH front)
RD2 board (R-CH rear)
1
ear pad (L)
4
Removal the solder at 2 places.
2
two screws
(P 2.6x6)
3
screw (P 2.6x6)
5
front plate (R) assy
from RX board
driver (R-CH) side
housing (L) assy
Note for installation : Solder the leads at the
places shown below with
attention to their colors.
natural
natural
GRN
GRN
RED
Connect a green lead to
the marked one of the
driver terminals.
