17

MDR-IF4000

Ref. No.

Part No.

Description

Remarks

Ref. No.

Part No.

Description

Remarks

SECTION 4

EXPLODED VIEWS

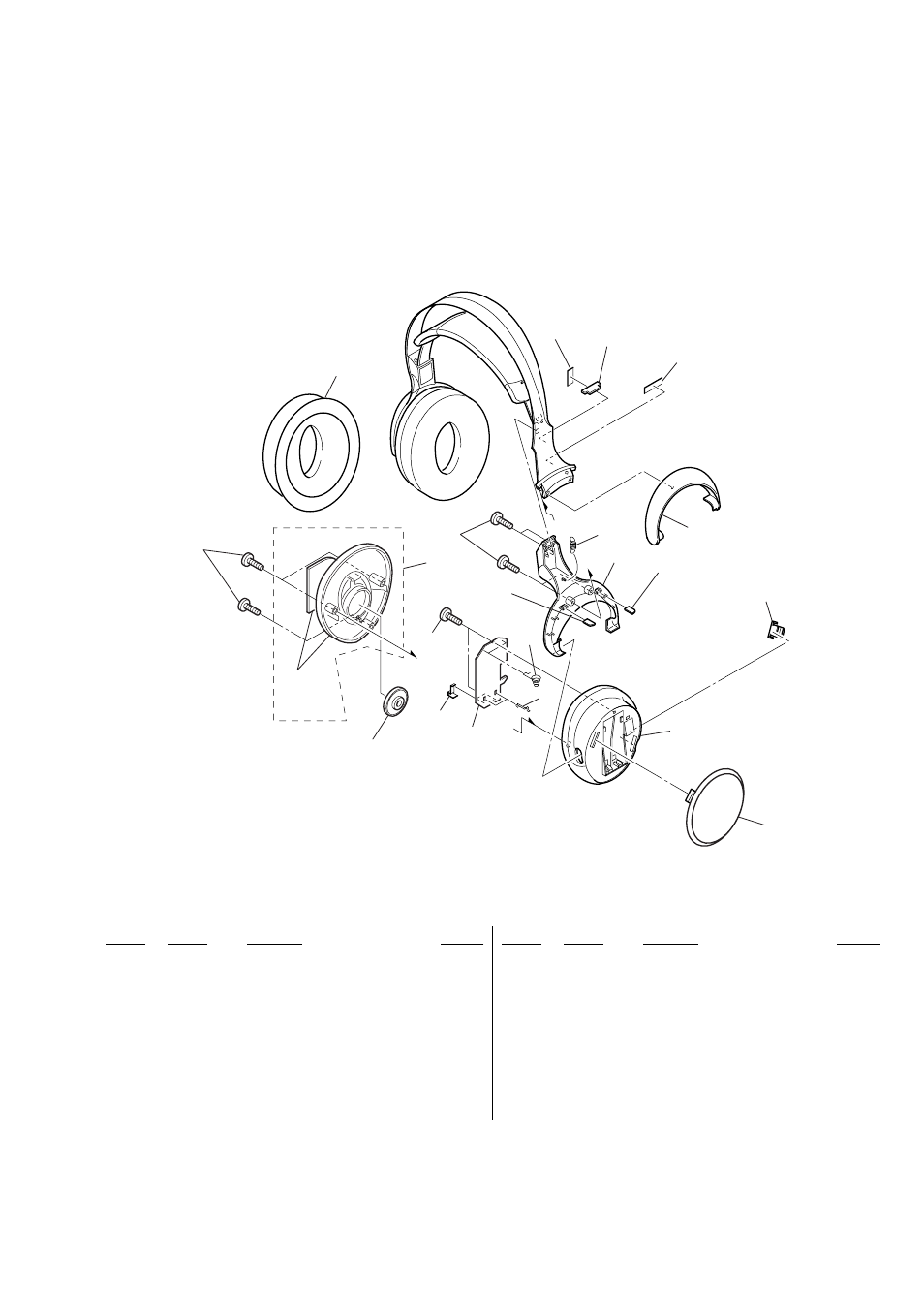

4-1. HOUSING (L) ASSY SECTION

NOTE:

-XX, -X mean standardized parts, so they may
have some differences from the original one.

Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

The mechanical parts with no reference number
in the exploded views are not supplied.

Accessories are given in the last of this parts
list.

1

2

3

5

4

6

7

8

9

10

11

13

12

not
supplied

SP002

not supplied
(SW board)

A

A

B

B

14

not supplied
(PD1 board)

(PD2 board)

not supplied

13

15

16

1

X-2024-577-1 LID ASSY, BATTERY

2

3-246-142-01 HOUSING (L)

3

3-246-148-01 BUTTON

4

2-547-961-01 LID (L), HANGER

5

2-345-564-01 HANGER (L)

6

3-257-911-01 SPRING, TENSION

7

3-246-151-03 TERMINAL (–), BATTERY

8

3-246-150-02 TERMINAL (+), BATTERY

9

A-1083-889-A BATT BOARD, COMPLETE

10

3-246-152-02 TERMINAL, CHARGE

11

X-2024-574-1 PLATE (L) SUB ASSY, FRONT

12

3-246-153-13 PAD (L), EAR

13

3-253-143-01 SCREW (B2.6), (+)P TAPPING

14

3-254-070-11 SCREW

15

3-257-555-02 CUSHION (S/W)

16

3-252-068-01 CUSHION (B)

SP002

1-542-593-11 DRIVER (040F020)
