42
Se
tu
p
DVD Player with
S VIDEO and Audio
Connectors Use this connection if your DVD player does not have component video (Y,
P
B
, P
R
) jacks.

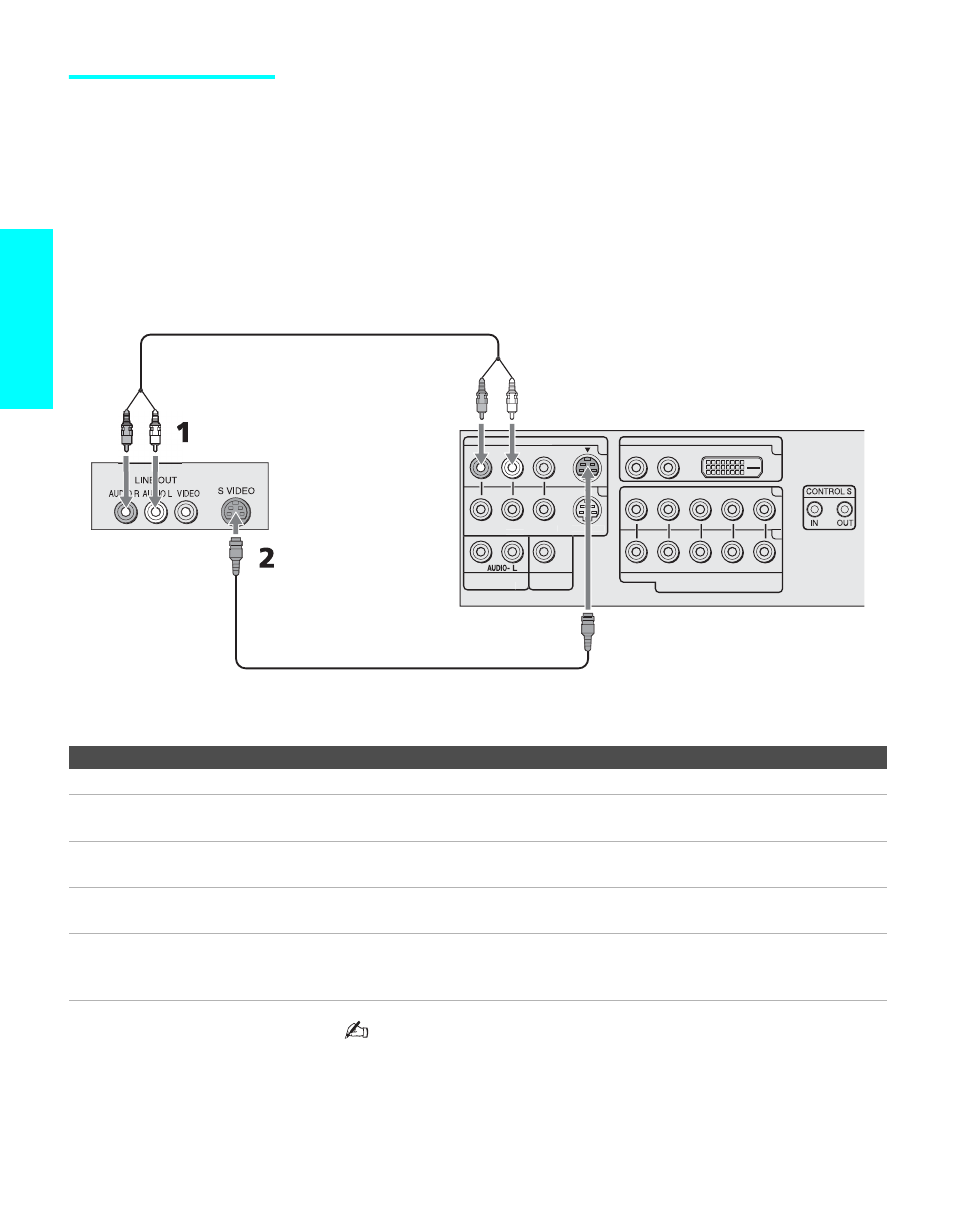

To connect a DVD player with A/V connectors
1
Use an audio cable to connect the DVD player’s audio output jacks to
the TV’s audio input jacks.
2
Use an S VIDEO cable to connect the DVD player’s S VIDEO jack to
the TV’s S VIDEO jack.
Notes on Using This Connection
Do not leave a still image, such as the DVD menu, displayed on
the screen.
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the illustration).
Set up the TV remote control to
operate the DVD player If you have a non-Sony DVD player, you must program the remote control. See
“Programming the Remote Control” on page 52.
Activate the TV remote control to
operate the DVD player Press VCR/DVD FUNCTION .
Control DVD functions with the
TV remote control See “Operating a DVD Player” on page 55.
Label video inputs to easily
identify equipment connected to
the TV See the instructions for setting up Video Labels on page 96.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTV R -AUDIO- L
R -AUDIO- L
R -AUDIO- L
(MONO)
R -
WOOFER OUT
(VAR/FIX) ( ) (VAR) ( )
Y P B P R
6
3
VIDEO S VIDEO
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
DVD player
Audio cable
S VIDEO cable
