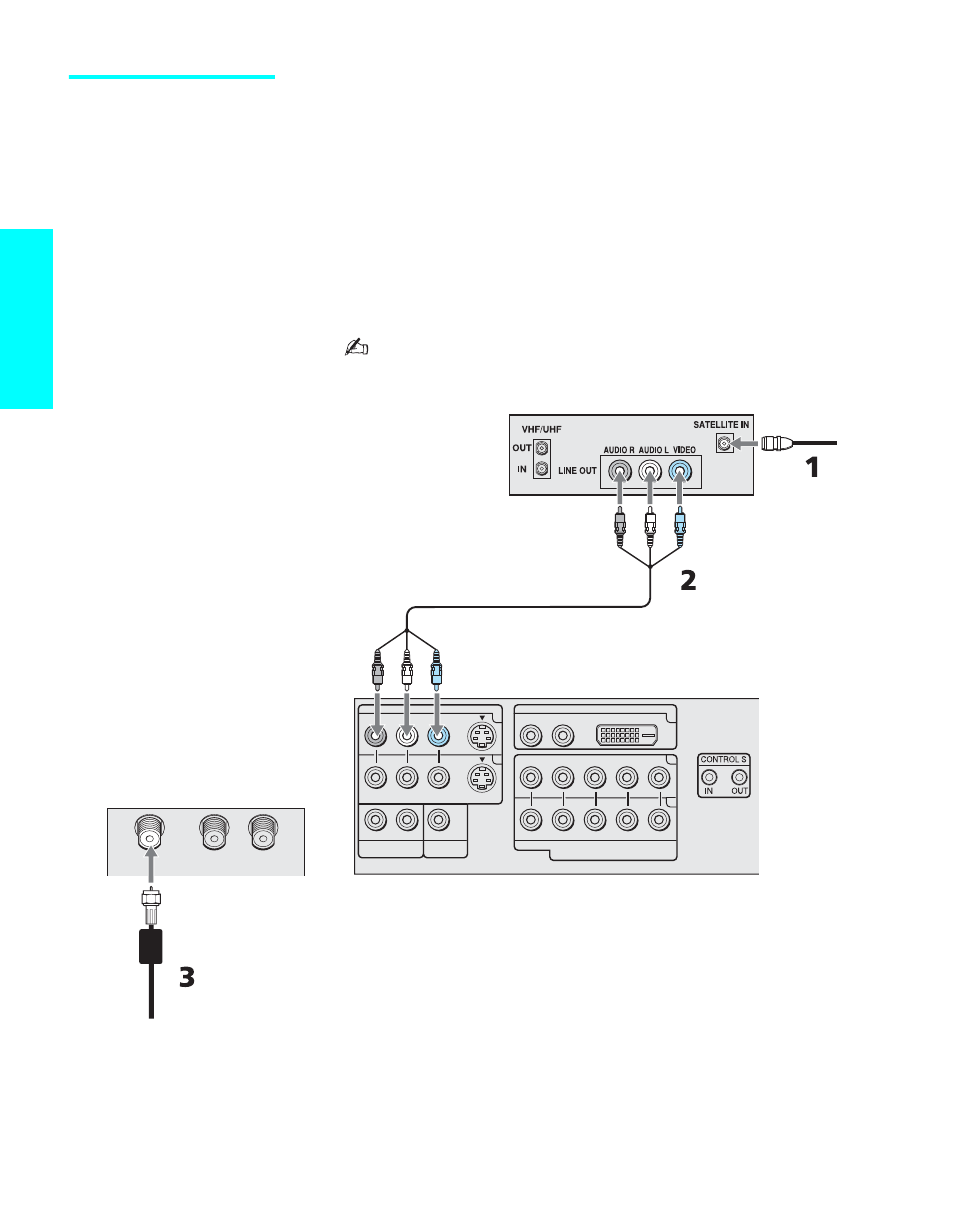

Satellite Receiver To connect a satellite receiver
1
Connect the satellite antenna cable to the satellite receiver’s satellite
input jack.
2
Use an A/V cable to connect the satellite receiver’s A/V output jacks to
the TV’s A/V input jacks.
3 Connect the supplied antenna cable from your cable or antenna to the
TV’s VHF/UHF jack.
4 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 29.
