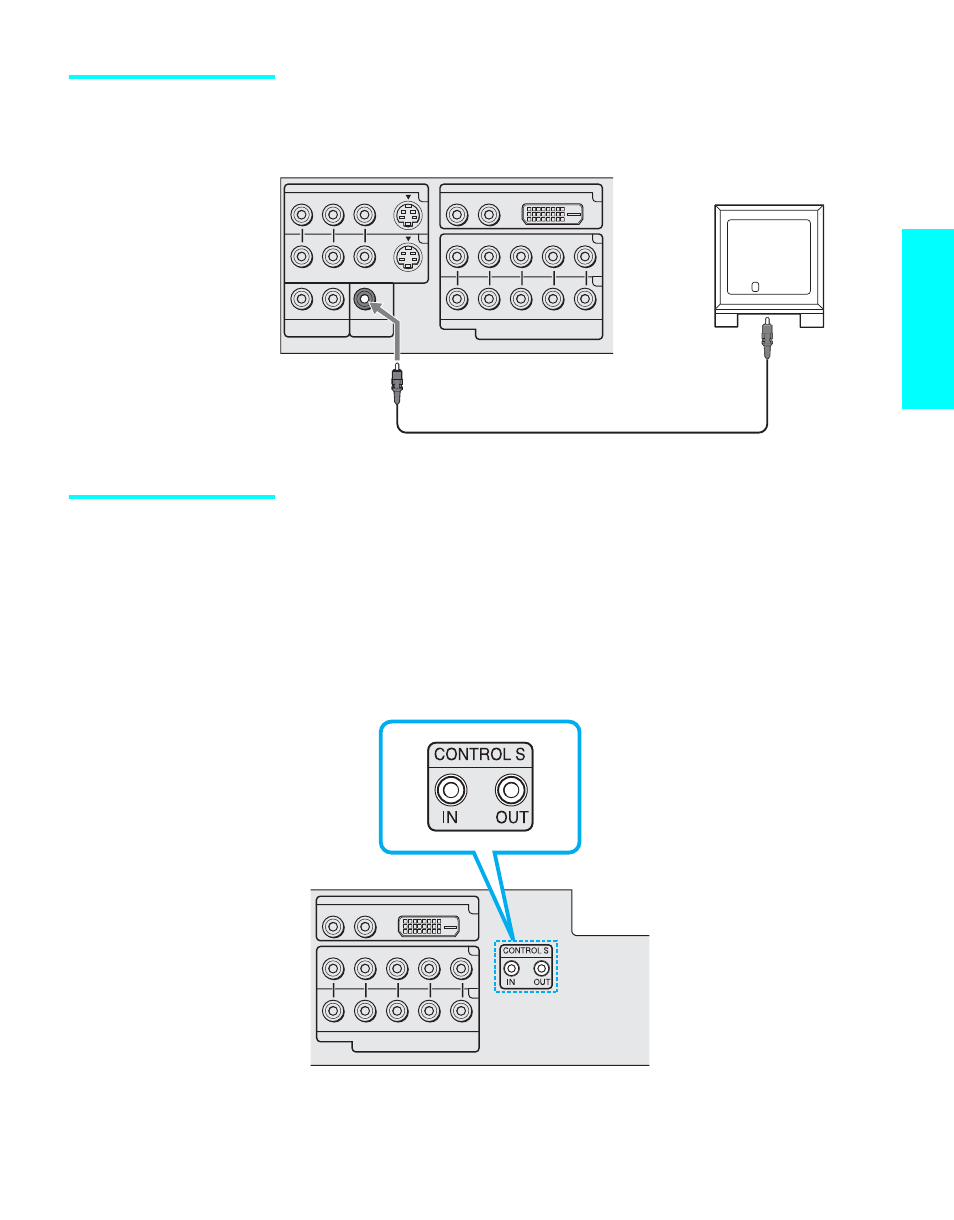

Sub Woofer Use a monaural audio cable to connect the TV’s WOOFER OUT jack to the
sub woofer’s input jack.
Using the CONTROL
S Feature CONTROL S allows you to control your system and other Sony equipment
with one remote control. In addition to allowing you to control multiple
devices with one remote control, the CONTROL S feature allows you to
always point your remote control at your TV, instead of having to point it at
the other equipment, which might be hidden or out of direct line of sight.
Use CONTROL S IN to send signals to the TV.
Use CONTROL S OUT to send signals to connected equipment.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTV R -AUDIO- L
R -AUDIO- L
R -AUDIO- L
(MONO)
R -AUDIO- L
WOOFER OUT
(VAR/FIX) (VAR)
Y P B P R
6
3
VIDEO S VIDEO
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
Sub woofer
Monaural audio cable (not supplied)
Sub woofer
input
DVI-HDTV IN
DVI-HDTV R -AUDIO- L
R -AUDIO- L Y P B P R
6
4
5
HD/DVD IN
(1080i/720p/480p/480i)
Rear of TV
