Getting Started
Step 1: Hooking up the system

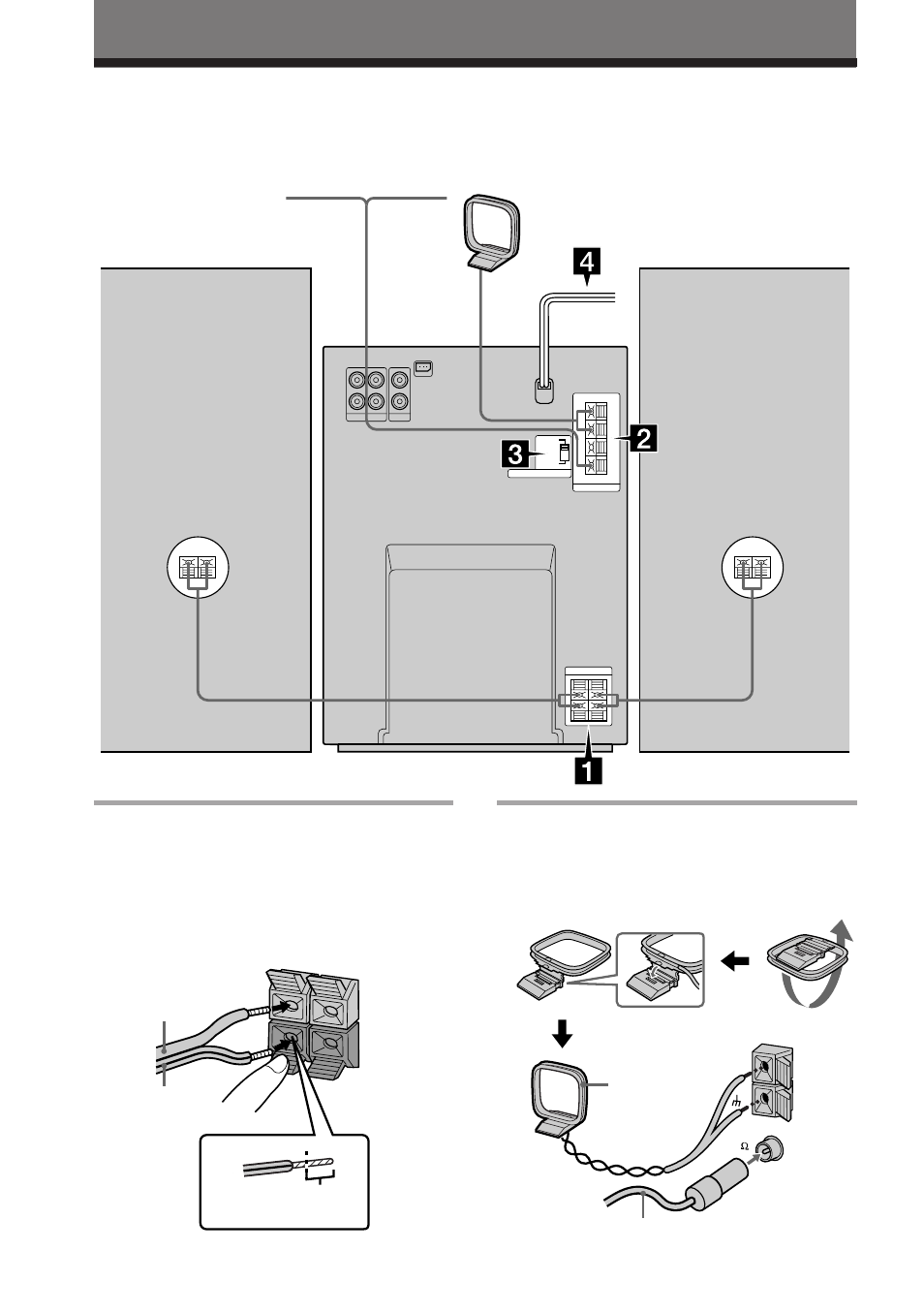

Follow steps 1 and 2 to hook up your system using the supplied cords and accessories. Follow
steps 3 and 4 to complete the hook up procedure.
Left speaker Right speaker
DHC-MD515
rear panel
FM antenna
AM loop antenna
Connect the speakers.
Connect the speaker cords to SPEAKER
terminals of the same color.
Keep the speaker cords away from the
antennas to prevent noise.
1
Solid (‘)
Stripe (’)
Connect the FM/AM antennas.
Set up the AM loop antenna, then
connect it.
European model
2
AM loop
antenna
Extend the FM lead
antenna
horizontally.
Insert this portion.
FM 75
COAXIAL
AM
