Ba
se Station
Pre
p
ar
ations
10
Attach the supplied IR Blaster to the device
connected to the base station.
You can control the device with the LocationFree
TV’s on-screen remote control via the IR Blaster.
With reference to the operating instructions of the
device, make sure to place the IR Blaster just
above the infrared receiver.
Note
Do not remove the backing paper from the IR Blaster
yet.
After configuring LocationFree Player remote control
settings (
1 page 30), remove the backing paper from
the IR Blaster and fix it in place.
When operating two devices with the IR Blaster,
set the devices and the IR Blaster as shown.
Note
For details on setting up a device, refer to the operating
instructions of the device.
If the infrared receivers on the two devices do not
line up like the picture above, you cannot control
them with the single supplied IR Blaster, and you
need to purchase a plug adapter (PC-230M, not
supplied) and another IR Blaster. Connect the
plug adapter to the IR BLASTER port on the base
station and connect each IR Blaster to a port on
the adapter plug.
z
Tips
• If the IR Blaster cable is too short, use the extension
cable (RK-G138, not supplied).
• Infrared receivers on Sony VCRs and other products
are identified with the symbol.
• You can set up two on-screen remote controls for
each video input connector. These on-screen remote
controls allow you to operate two devices connected
directly to the base station, and to control video
input via those devices.

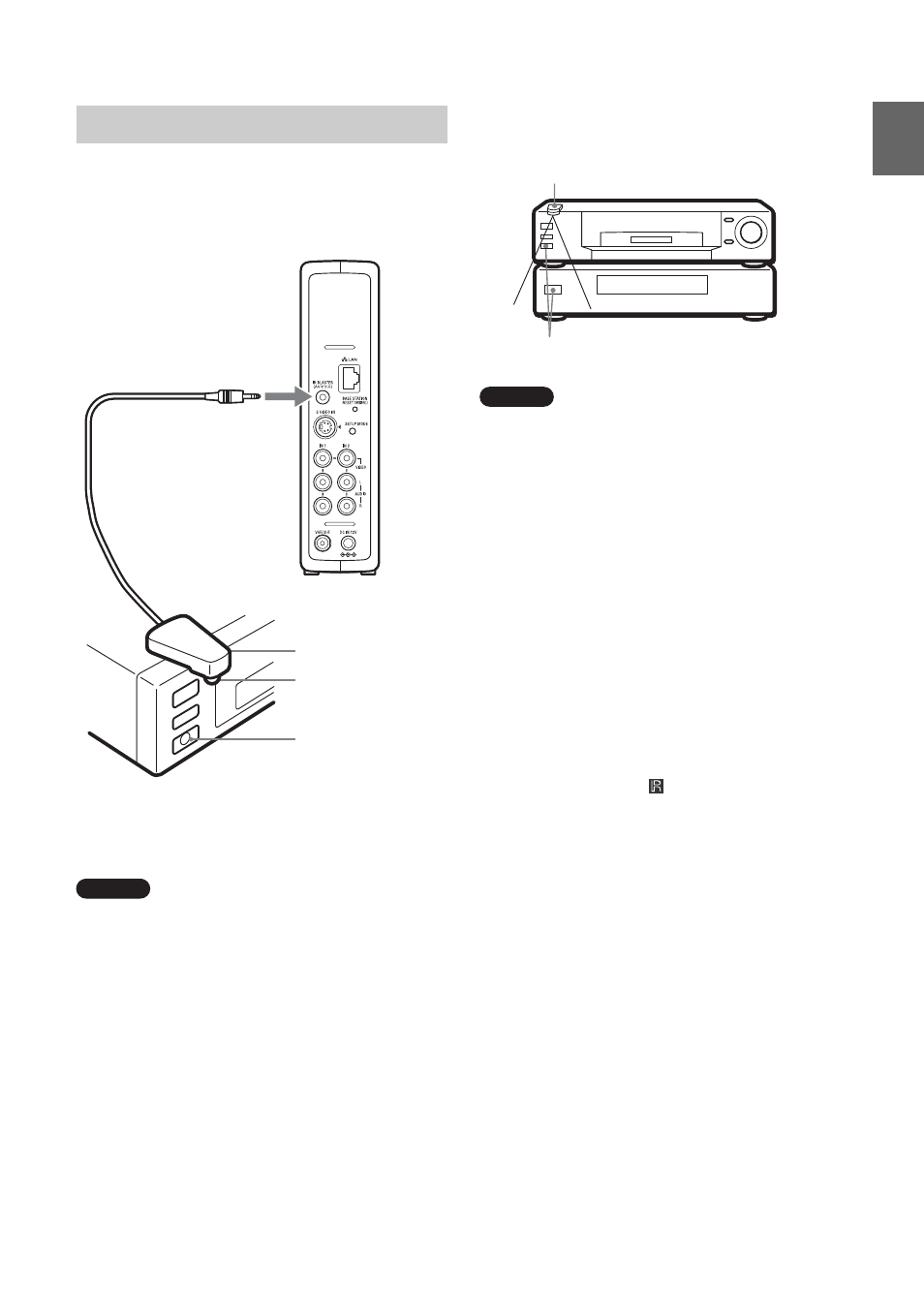

Connecting the IR Blaster
IR Blaster
Infrared transmitter
Infrared receiver
to IR BLASTER port
IR Blaster
Infrared receivers
