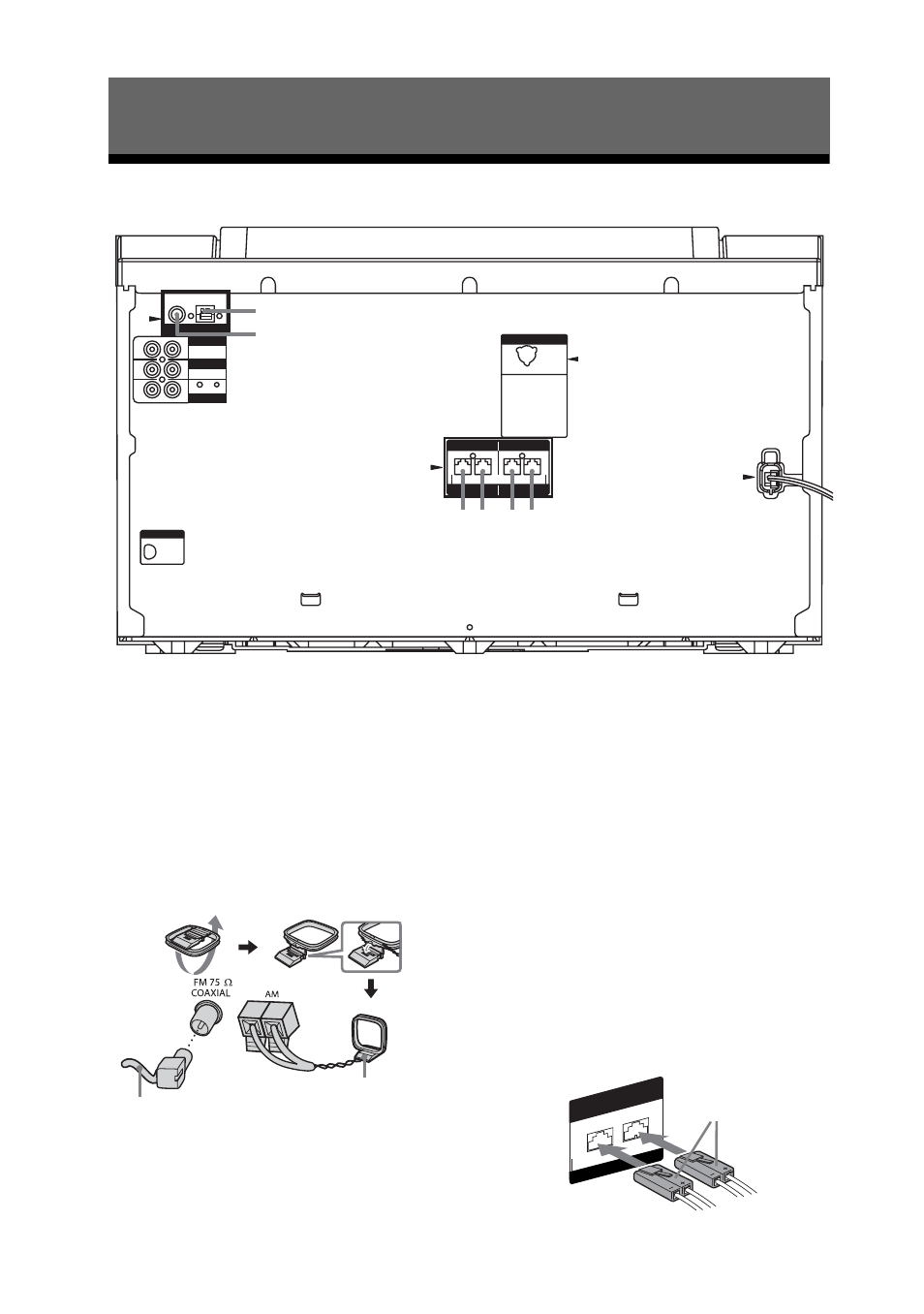

Hooking up the system
A Antennas
Set up the AM loop antenna, then connect
it.
Note
Keep the antennas away from the speaker cords,
the power cord and the USB cable to avoid
picking up noise.
B Speakers
The speaker connectors are color-coded
with their respective speaker terminals on
the unit.
Front speakers
Getting Started
1
2
A
B
C
4 3 5 6
D
1 To AM loop antenna
2 To FM lead antenna
3 To front speaker (right)
4 To front speaker (left)
5 To surround speaker (right)
6 To surround speaker (left)
Extend the FM lead
antenna horizontally
AM loop antenna
R
L
FRONT
SPEAKER
ONLY FOR SS-ZUX9
White
