7
(US)
3

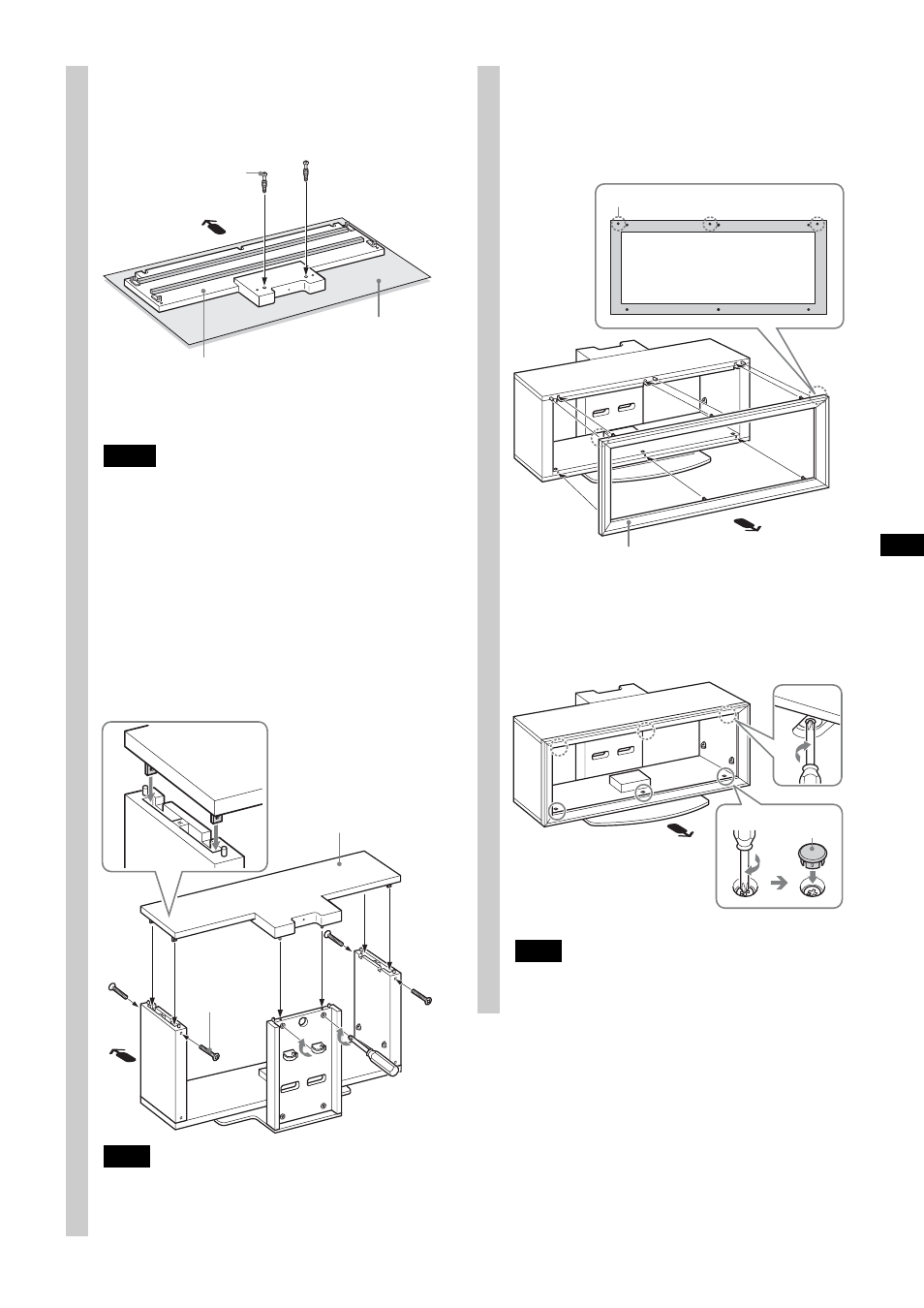

Attach the Top Board.
1 Tighten the two supplied Cam-lock screws to the
Top Board.
The illustration shown above is SU-FL300L as an
example. For SU-FL300M, there is only one
reinforcing bar on the Top Board.
Notes
• To prevent damaging the glossy surface of the Top Board,
make sure to clean and place a soft cloth on the work
surface.
• If you attach the Home Theatre System to the TV Stand,
also refer to “Installing the Center Speaker (For Home
Theatre Systems only)” on page 11.
2 Align and insert fixing brackets either side of the
Top Board into the Side Pillars.
3 Secure the Side Pillars with the four supplied screws
(+PWH5 × 25). And secure the two remaining Cam-
lock screws on the back side of the Rear Pillar.
Note
Be careful not to pinch your fingers when attaching the Top
Board.
Soft cloth
Cam-lock screw
Top Board
Top Board
Screw
(+PWH5 × 25)
4
Attach the Front Panel to the TV
Stand.
1 Align the three dowels of the TV Stand with the
three holes of the Front Panel.
2 Turn the six Cam-lock screws on the Top and the
Base Boards clockwise to secure the Front Panel.
And attach the three supplied screw caps to the
three bottom screws.
Note
Be sure to attach the Front Panel in the correct direction.
Front Panel
Dowel hole
Screw cap
(Continued)
