10
(US)
Design and specifications are subject to change without
notice.
2

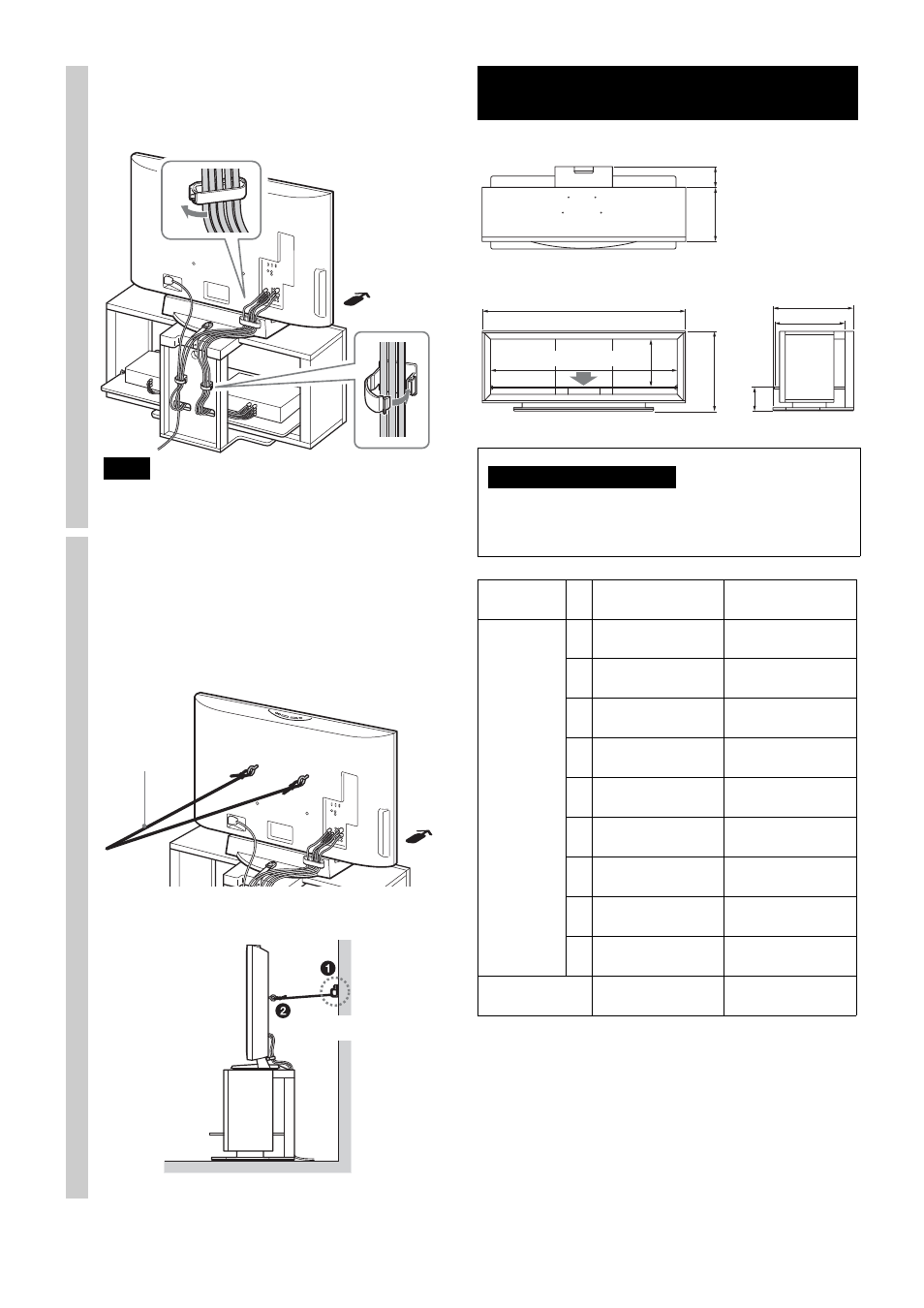

Connect the cables.
Run the cables through the cable holders and the Rear
Pillar holes.
Note
If the cables are not installed properly, they might be pinched
and damaged, and could result in electric shock, etc.
3
Anchor the TV to the wall.
Prepare a strong, commercially-available rope or chain
and wall anchor bracket for this purpose.
1
Secure the wall anchor bracket to a solid wall.
2 Pass the rope or chain through both holes of the
anchor bolts and then tighten the other end of the
rope or chain to the wall anchor bracket.
Strong rope or
chain
Wall anchor bracket
Specifications
Do not place any equipment on the Glass Shelf which
exceeds its maximum weight, as it may break and cause
injury.
SU-FL300M SU-FL300L
Dimensions:
mm (inches) A 1,035
(40 3/4)
1,280
(50 1/2)
B 503
(19 7/8)
503
(19 7/8)
C 487
(19 1/4)
518
(20 1/2)
D 895
(35 1/4)
1,140
(45)
E 303
(12)
303
(12)
F 418
(16 1/2)
468
(18 1/2)
G 146
(5 3/4)
146
(5 3/4)
H 120
(4 3/4)
130
(5 1/8)
I 272
(10 3/4)
340
(13 1/2)
Weight: 35 kg
(77 lb 3 oz)
52 kg
(114 lb 11 oz)
H
I
A
D
E
B
G
F
C
30 kg (66 lb 2 oz)
Note on carrying capacity
