Installation

802734

Installing Extension Onto Coin Slide:
Option 1

1. Insert coins and partially extend coin slide.
2. Insert coin slide on its side through meter case

opening. Then rotate 90 degrees to its proper

orientation.

3. Return coin slide and hook slide pins onto meter

case.

4. Continue coin slide installation according to

manufacturer’s instructions.

5. Check to make sure coin slide is operating

properly by inserting coins and starting a cycle.

The IN USE light will turn on, or flash if it is

already on, to indicate proper operation.

Installing Extension Onto Coin Slide:
Option 2

1. Install coin slide according to manufacturer’s

instructions.

2. Insert coins into coin slide and slowly push slide

in. Stop before coins fall into coin box. This will

allow installing extension through meter case

service door opening.

3. Install slide extension onto top of coin slide using

4. Check to make sure coin slide is operating

properly by inserting coins and starting a cycle.

The IN USE light will turn on, or flash if it is

already on, to indicate proper operation.

Models Prepped for Card Reader

The machine is shipped from the factory with the

Electronic Control Diagnostic Harness Assembly

unplugged. To avoid unauthorized manual

programming or vending, perform the following steps.

1. Open control panel. Refer to Figure 26.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/

blue” wire together.

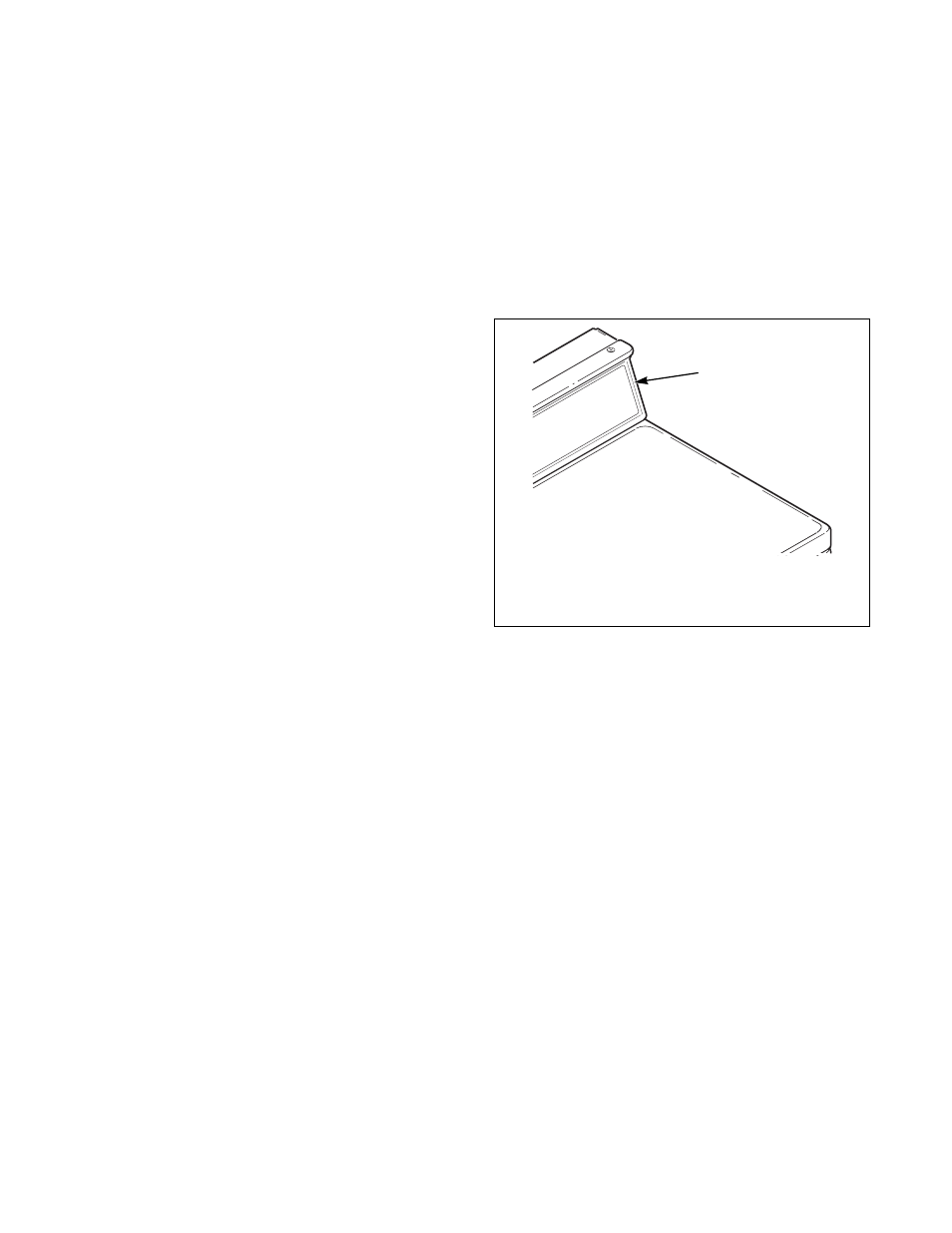

Figure 26

FLW6R

Control Panel
