Installation

802734

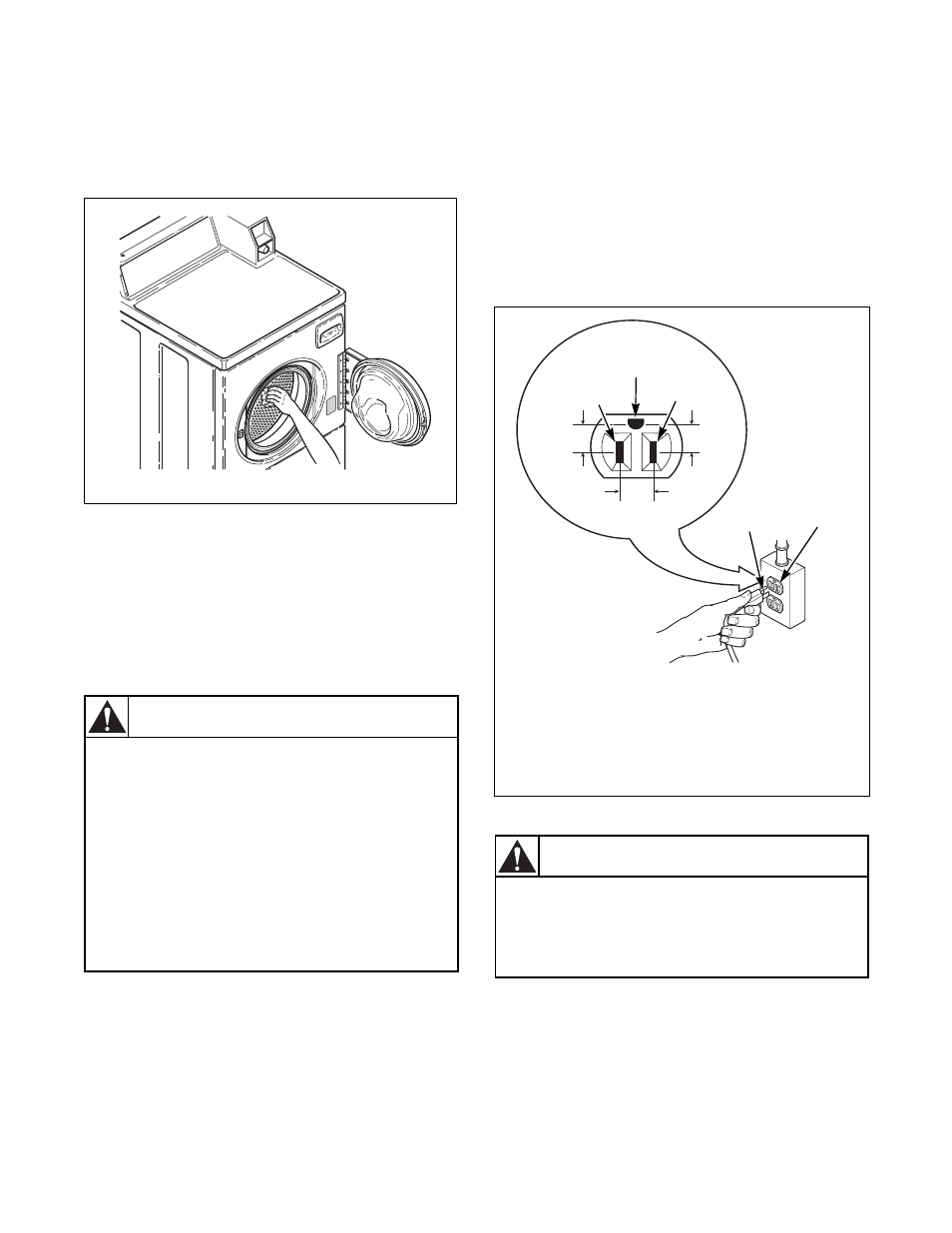

Step 7: Wipe Out Inside of Wash Drum

Before using washer for the first time, use an all-purpose

cleaner, or a detergent and water solution, and a damp

cloth to remove shipping dust from inside wash drum.

Figure 15

Step 8: Plug In the Washer
Electrical Requirements

(120 Volt, 60 Hertz with 3-Prong Grounding Plug)

NOTE: The wiring diagram is located in the

control hood.

When plugging in the washer:

• DO NOT overload circuits.
• DO NOT use an extension cord.
• DO NOT use an adapter.
• DO NOT operate other appliances on the same

circuit. Use separately fused 15 Amp circuits.

The washer is designed to be operated on a separate

branch, polarized, three-wire, effectively grounded,

120 Volt, 60 Hertz, AC (alternating current), circuit

protected by a 15 ampere fuse, equivalent fusetron or

circuit breaker.
The three-prong grounding plug on the power cord

should be plugged directly into a polarized three-slot

effectively grounded receptacle rated 110/120 Volts

AC (alternating current) 15 Amps. Refer to Figure 16

to determine correct polarity of the wall receptacle.

FLW2126N

To reduce the risk of fire, electric shock,

serious injury or death, all wiring and

grounding MUST conform with the latest

edition of the National Electrical Code,

ANSI/NFPA No. 70, and such local

regulations as might apply. It is the

customer’s responsibility to have the

wiring, fuses and circuit breakers

installed by a qualified electrician to make

sure adequate electrical power is

available to the washer.

W518

WARNING

DRY2022N

Ground

Neutral Side

Round Grounding Prong

Neutral

Figure 16

Standard 120 Volt, 60 Hertz

3-Wire Effectively

Grounded Circuit

0 V.A.C.

120±12

V.A.C.

120±12

V.A.C.

To reduce the risk of an electric shock or

fire, DO NOT use an extension cord or an

adapter to connect the washer to the

electric power source.

W082

WARNING
