Installation

802734

10

Connecting Hoses

Insert each filter screen into the end of each fill hose

that will connect to the water supply faucet. The screen

must be facing outward. Refer to Figure 4.
Insert each plain rubber washer into the other end of

each fill hose that will connect to the water mixing

valve at the rear of the washer. Refer to Figure 4.
Thread hose couplings onto valve connections finger-

tight, then approximately 1/4 turn with pliers.

IMPORTANT: DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

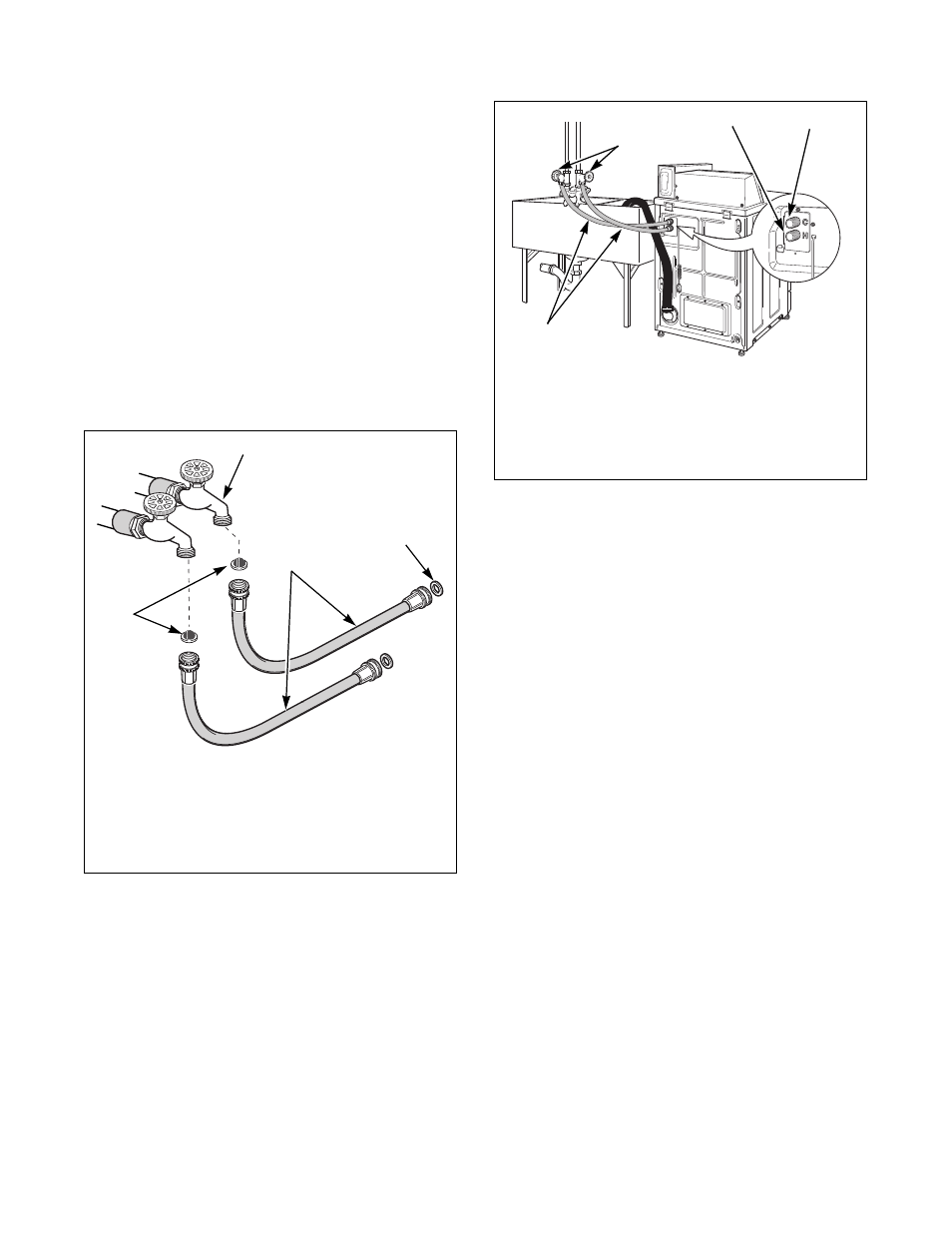

Figure 4

IMPORTANT: Hoses and other natural rubber

parts deteriorate after extended use. Hoses may

develop cracks, blisters or material wear from the

temperature and constant high pressure they are

subjected to.

All hoses should be checked on a monthly basis for

any visible signs of deterioration. Any hose showing

the signs of deterioration listed above should be

replaced immediately. All hoses should be replaced

every five years.

Figure 5

IMPORTANT: Turn off water supply faucets after

check-out and demonstration. Owner should turn

off water supply whenever there will be an

extended period of non-use.

NOTE: Longer fill hoses are available (as optional

equipment at extra cost) if the hoses supplied with

the washer are not long enough for the installation.

Order hoses as follows:

No. 20617 Fill Hose (8 feet) (2.44 m)

No. 20618 Fill Hose (10 feet) (3.05 m)
