Installing Extension Onto Coin Slide:
Option 1

1. Install slide extension onto top of coin slide using

two remaining screws and lockwashers. Refer to

Figure 19.

2. Insert coins and partially extend coin slide.
3. Insert coin slide on its side through meter case

opening. Then rotate 90 degrees to its proper

orientation.

4. Return coin slide and hook slide pins onto meter

case.

5. Continue coin slide installation according to

manufacturer’s instructions.

NOTE: During coin slide installation, make sure

activation lever is up and off the switch. Refer to

Figure 20.

6. Check to make sure coin slide is operating

properly by inserting coins and starting a cycle.

The IN USE light will turn on, or flash if it is

already on, to indicate proper operation.

Installing Extension Onto Coin Slide:
Option 2

1. Install coin slide according to manufacturer’s

instructions.

2. Insert coins into coin slide and slowly push slide

in. Stop before coins fall into coin box. This will

allow installing extension through meter case

service door opening.

3. Install slide extension onto top of coin slide using

two screws and lockwashers. Refer to Figure 19.

NOTE: Make sure extension lever is above switch

activation lever.

4. Check to make sure coin slide is operating

properly by inserting coins and starting a cycle.

The IN USE light will turn on, or flash if it is

already on, to indicate proper operation.

Slide Extension Assembly – Models
Starting Serial No. 1211

1. Remove slide extension parts from parts

accessories bag included in unit.

2. Install extension lever with arm that has one star

facing down. Refer to Figure 21.

NOTE: If more switch down-force is required,

install lever with arm that has two stars facing

down to provide additional switch travel.

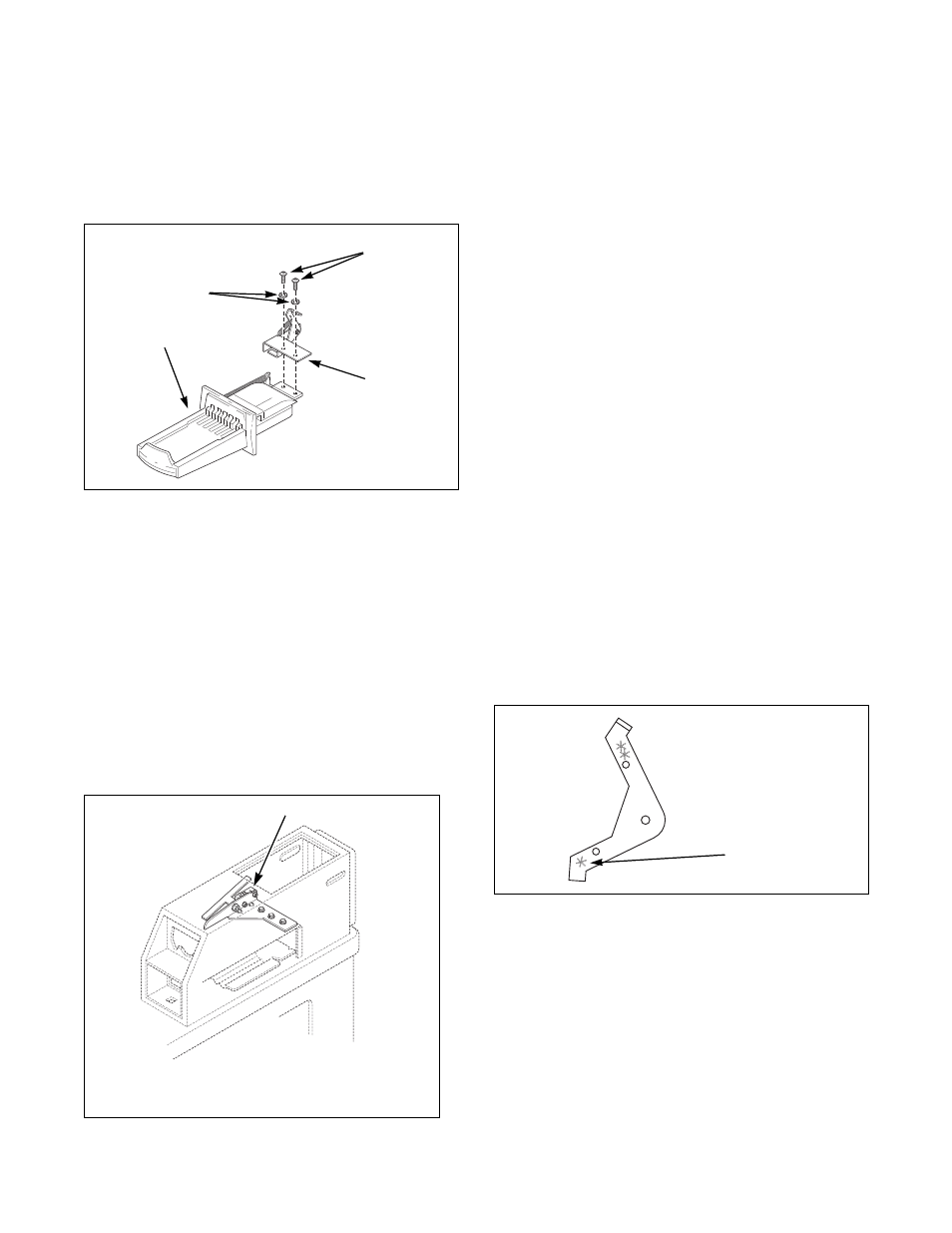

Figure 19

TLW2090N

1

Lever Off Switch

Figure 20

Coin Slide

Slide

Extension

Attaching

Screws

Lockwashers

TLW1564K

TLW2090N

1

Figure 21

One Star

TLW2088N
