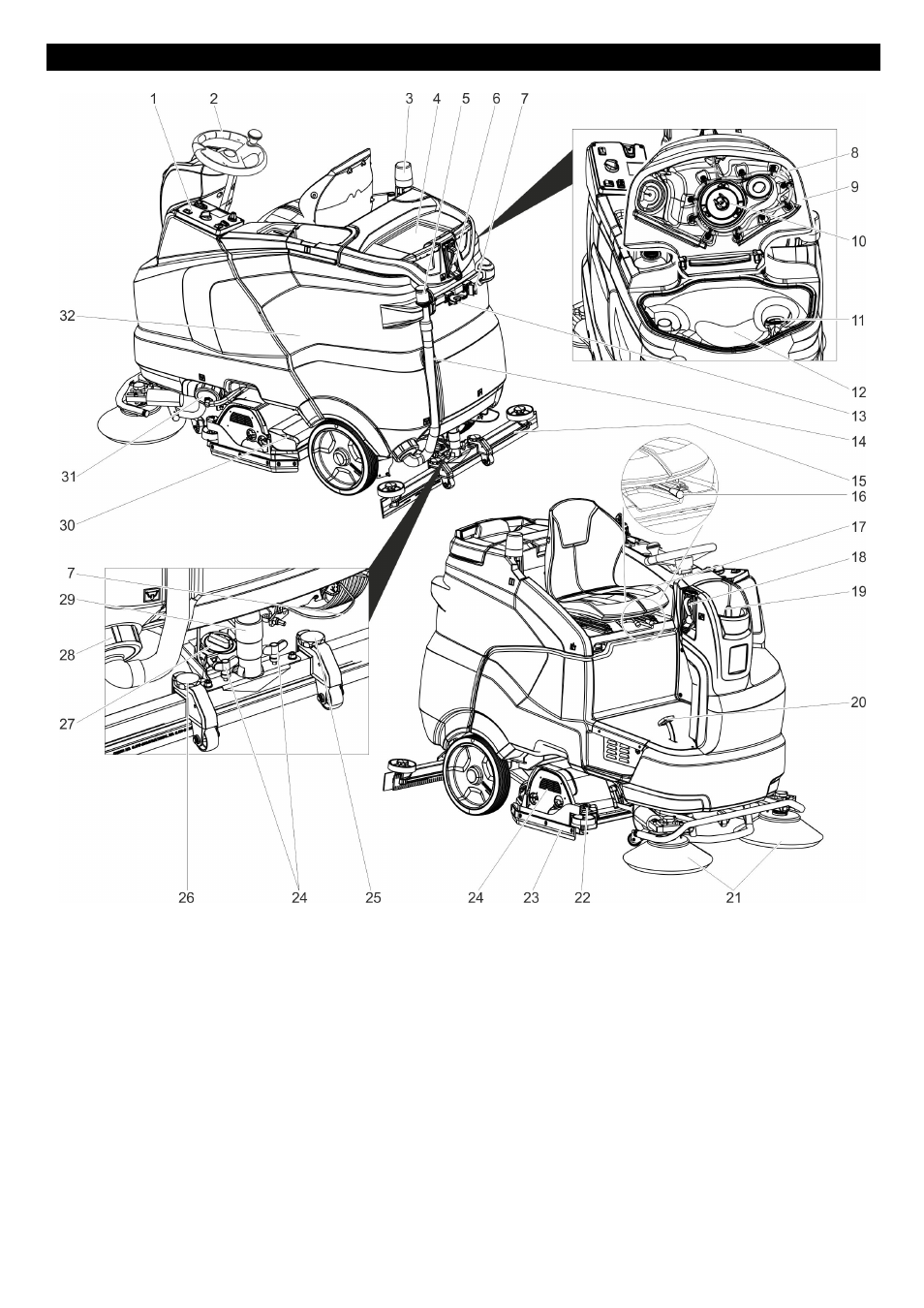

1 Operating field
2 Steering wheel
3 Warning lamp **
4 Storage surface for cleaning set
"Home base box“
5 Dosing equipment for dirt water
6 Water connection for wastewater
tank rinsing system **
7 Mop holder **
8 Wastewater tank rinsing system **
9 Cover dirt water reservoir
10 Float
11 Fluff filter
12 Dirt water reservoir
13 Tool holder **
14 Dirt water discharge hose
15 Vacuum bar *
16 Lever for seat adjustment
17 Seat (with seat switch)
18 Filling system **
19 Fresh water tank cover
20 Drive pedal
21 Side brush (only SB version)
22 Adjustment wheel for wiping flap*
23 Wiping flap
24 Cleaning head *
25 Height adjustment of suction bar
26 Wing nuts for fastening the vacuum
bar
27 Rotary handle to incline the vacuum
bar
28 Lock, dirt water reservoir
29 Suction hose
30 Waste container (only with R clean-
ing head) *
31 Closure fresh water tank with fresh
water filter
32 Battery
* not included in the delivery
** option
