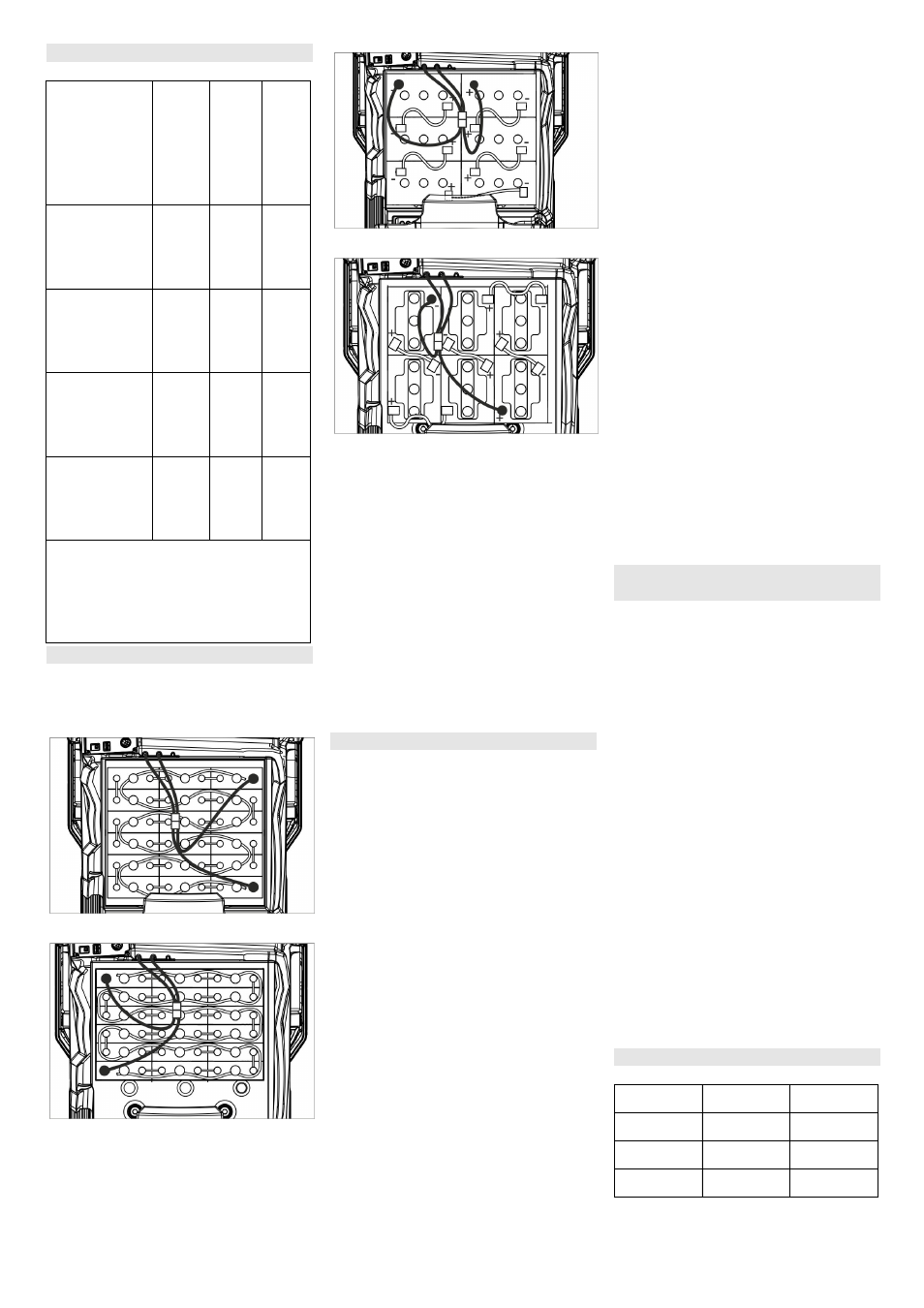

Page 11

-
9
Bring the safety switch into the "0"
position.
Tilt the wastewater tank backwards.
4.035-987.7
4.035-988.7
4.654-306.7 (arrangement A)
4.654-307.7 (arrangement B)
ATTENTION
Risk of damage. Ensure correct polari-
ty.
Lubricate the battery pole with pole
grease.
Connect pole using the enclosed
connecting cable.
Connect the connection cable to
the free battery poles (+) and (-).
Insert battery plug.
ATTENTION
Risk of damage due to full discharge!
Charge the batteries before commis-
sioning the appliance.
NOTICE
The appliance is equipped with a total
discharge protection, i.e. if the still ad-
missible minimum of the capacity is
reached, the appliance can only be
driven. The display shows the mes-
sage "Battery low - cleaning not possi-
ble" and "Battery empty - please
charge".
Drive the appliance directly to the
charging station; avoid any steep
gradients in the process.
NOTICE
While using other batteries (for e.g.
batteries from other manufacturers)
the total discharge protection level
must be reset by the Kärcher after-
sales service according to the respec-
tive battery.
ƽ
DANGER
Risk of electric shock. Observe supply
network and fuse protection - see
"Charger". Only use the charger in dry
rooms with sufficient ventilation!
NOTICE
Average charging time is approx. 10 -
12 hours.
The recommended chargers (match-
ing the batteries used) are regulated
electronically and will automatically
switch off the charging process.
ƽ
DANGER
Danger of explosion. The room, where
the machine is kept to charge the bat-
tery, must feature a minimum volume
and an air exchange with a minimum
flow rate, depending on the type of bat-
tery (see "Recommended Batteries").
Danger of explosion. The charging of
wet batteries is only permitted if the
waste water reservoir is tilted up.
Swivel the wastewater tank up-
wards.
Separate the battery plug and con-
nect the charger cable.
Plug in the mains plug of the char-
ger.
Execute the charging process ac-
cording to the seperate instrucion
manual of the battery charger.
Add distilled water one hour before
the charging process comes to an
end; follow the correct acid level.
There are corresponding indicators
on the battery. At the end of the
charging process, all cells must
gas.
ƽ
DANGER
Danger of chemical burns. Filling water
in while the battery is discharged can
lead to acid leaks!
Wear goggles when handling battery
acid and adhere to instructions to pre-
vent injuries and damage to clothing.
Flush any acid drops on the skin or
clothes immediately with plenty of wa-
ter.
ATTENTION
Use only distilled or desalinated water
(EN 50272-T3) for filling the battery.
Do not add any substances (so-called
performance improving agents), else
warranty claims will not be entertained.
Recommended batteries
Order No.
Volume [m
3
} *
Air flow [m
3
/h] **
Battery set
240Ah,
trough, low-
maintenance
4.035-
987.7
27
10,8
Battery set
180Ah,
trough, low-
maintenance
4.035-
988.7
20,25 8,1
Battery set
240Ah, 6
blocks, main-
tenance-free
4.654-
306.7
6,975 2,79
Battery set
180Ah, 6
blocks, main-
tenance-free
4.654-
307.7
5,175 2,07
* Minimum volume of the battery
charging room
** Minimum air flow between the bat-
tery charging room and the surround-
ings
Insert batteries and connect
Charge the batteries
Low maintenance batteries (wet bat-
teries)
Maximum battery dimensions
Layout
A
B
Length
244 mm
312 mm
Width
190 mm
182 mm
Height
275 mm
365mm
11
