5
WARMER DRAWER
P/N 1010889 Rev. A 04/05
POWER
HEATER
THERMOSTAT
OFF
1 2 3 4 5 6 7 8 9 10
Dimensions
Capacity
WD-20 Holds up to 40 standard hot dog buns.
WD-21A One 4” (100 mm) deep full size steam table
pan. Holds 40-50 standard hot dog buns.
WD-35A Two 4” (100 mm) deep 2/3 size steam table
pan. Holds 50-60 standard hot dog buns.
Shipping Weight
WD-20 58 lbs. (27 kilos)
WD-21A 56 lbs. (26 kilos)
WD-35A 72 lbs. (33 kilos)

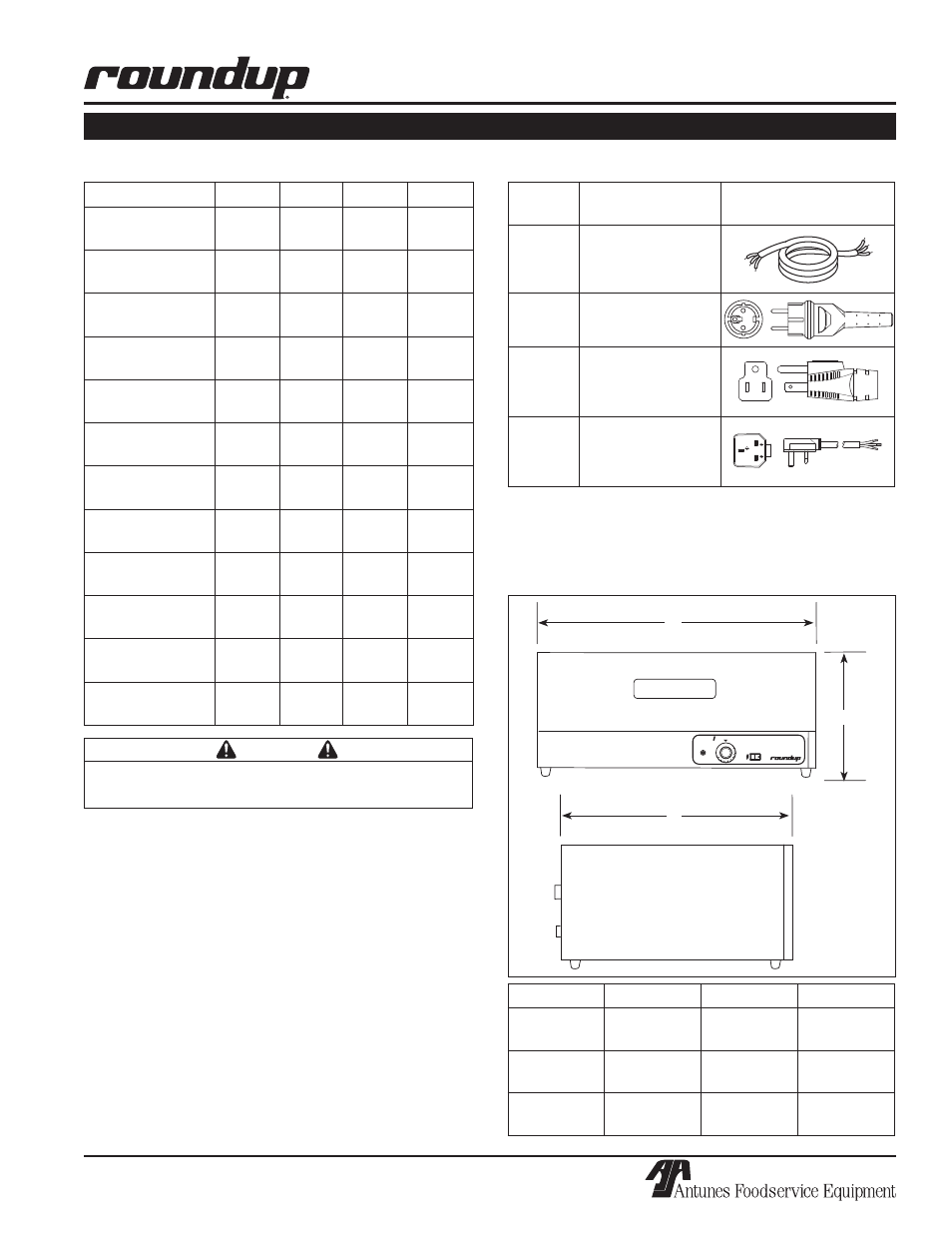

SPECIFICATIONS
Electrical Ratings
CAUTION
All electrical connections must be in accordance with
local electrical codes and any other applicable codes.
A
B
C
Electrical Cord & Plug Configurations
* Used in model designation
* * Indicates that the plug comes with a Harmonized Cord
** * Indicates that the plug comes with a Commercial Cord
Letter
Code*
Description Configuration
H Harmonized Cord
(H)C** CEE 7/7 16 Amp, 250
VAC (Assembly Only)
(C)F*** 5-15P, 15 Amp, 250
VAC, Non-Locking
(Assembly Only)
(H)G** BS-1365 Fused,
Permaplug, 16 Amp,
250 VAC (Assembly
Only)
WHT BLK
GRN
Model Width (A) Depth (B) Height (C)
WD-20 18-3/4”
(476 mm)
21”
(533 mm)
10-5/8”
(270 mm)
WD-21A 22-3/16”
(564 mm)
17”
(432 mm)
10-3/8”
(264 mm)
WD-35A 32-1/2”
(826 mm)
17”
(432 mm)
10-3/8”
(264 mm)
Model & Mfg. No Volts Watts Amps Hertz
WD-20-CF
9400130 120 500 4.2 50/60
WD-20-HC
9400132 230 500 2.2 50/60
WD-20-CF
9400134 230 500 2.2 50/60
WD-20-HG
9400136 230 500 2.2 50/60
WD-21A-CF
9400140 120 1000 8.3 50/60
WD-21A-HG
9400142 230 1100 4.8 50/60
WD-21A-HC
9400144 230 1100 4.8 50/60
WD-21A-CF
9400146 230 1100 4.8 50/60
WD-35A-CF
9400150 120 1400 11.7 50/60
WD-35A-HG
9400152 230 1530 6.7 50/60
WD-35A-HC
9400154 230 1530 6.7 50/60
WD-35A-CF
9400156 230 1530 6.7 50/60
