Nikon LS-1000 - Manual (Page 23)

- 23 -

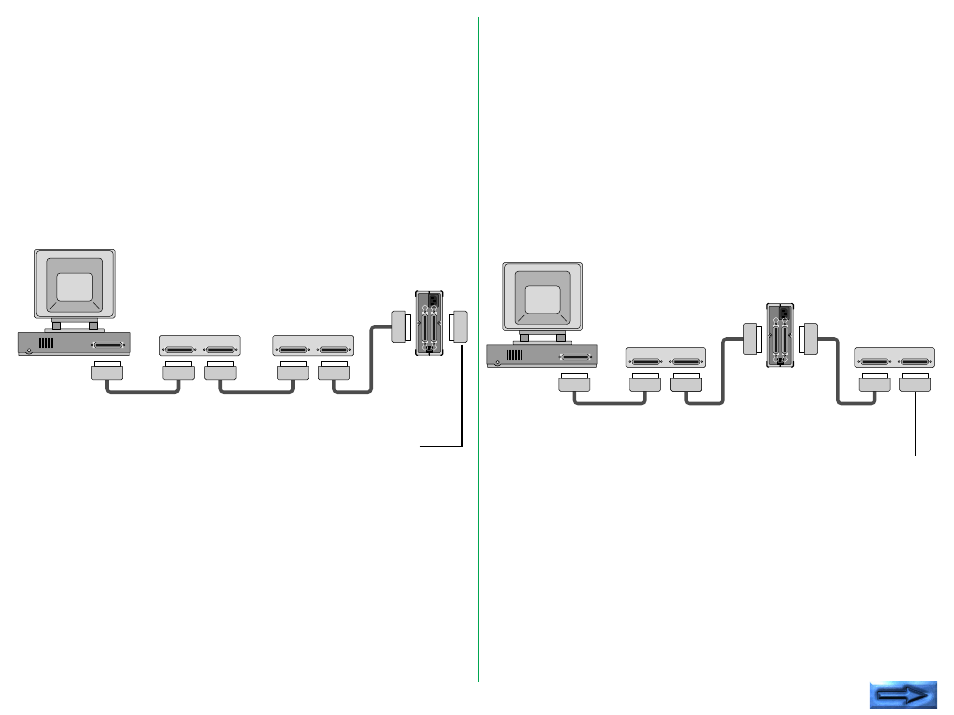

SCSI Chain Connection with Other Devices
If the LS-1000 is connected at the end of the SCSI
chain;
• Connect the 50-pin full pitch connector of the SCSI cable to
the SCSI connector located on the rear panel of the Unit,
and insert the other end to the SCSI connector of other
SCSI device.
• Connect the supplied terminator (terminal resistance) to the
other SCSI connector on the rear panel of the Unit.
If LS-1000 is connected between the other SCSI de-
vices;
• Connect the 50-pin full pitch connector of the SCSI cable to
the SCSI connector located on the rear of the Unit, and
insert the other end to the SCSI connector of other SCSI
device.
• Connect the other SCSI device by using the other SCSI
connector on the rear panel of the Unit.
• Connect the supplied terminator (terminal resistance) to the
SCSI device connected at the end of SCSI chain.
Terminator
Terminator
