ATTACHING THE WIRES
1. Route the coil high tension wire from the distributor to
the coil. The coil wire should positively snap onto the
coil terminal. If your coil wire has the incorrect terminal
end, replace it with the provided terminal and boot.
(See Step #4)
2. Connect all of the wires that were removed from the
negative coil terminal of the old coil to the negative
terminal of the Flame-Thrower HC coil. If necessary, use
the provided new ring terminals.
3. Connect the wires that were removed from the positive
coil terminal of the old coil to the positive terminal of the
Flame-Thrower HC coil. If necessary, use the provided
new ring terminals.
4. If the coil wire has a male stye terminal, you will need
to replace it with the provided female terminal. Follow
these steps:
FINAL CHECKS
1. Check all connections for correctness.
2. Re-attach the battery if disconnected.
3. In performance applications, the spark gap may be increased to take advantage of the extra energy, produced by the
Flame-Thrower HC coil. Since PerTronix cannot test every configuration, the end user must determine what spark
plug gap works best for their application.

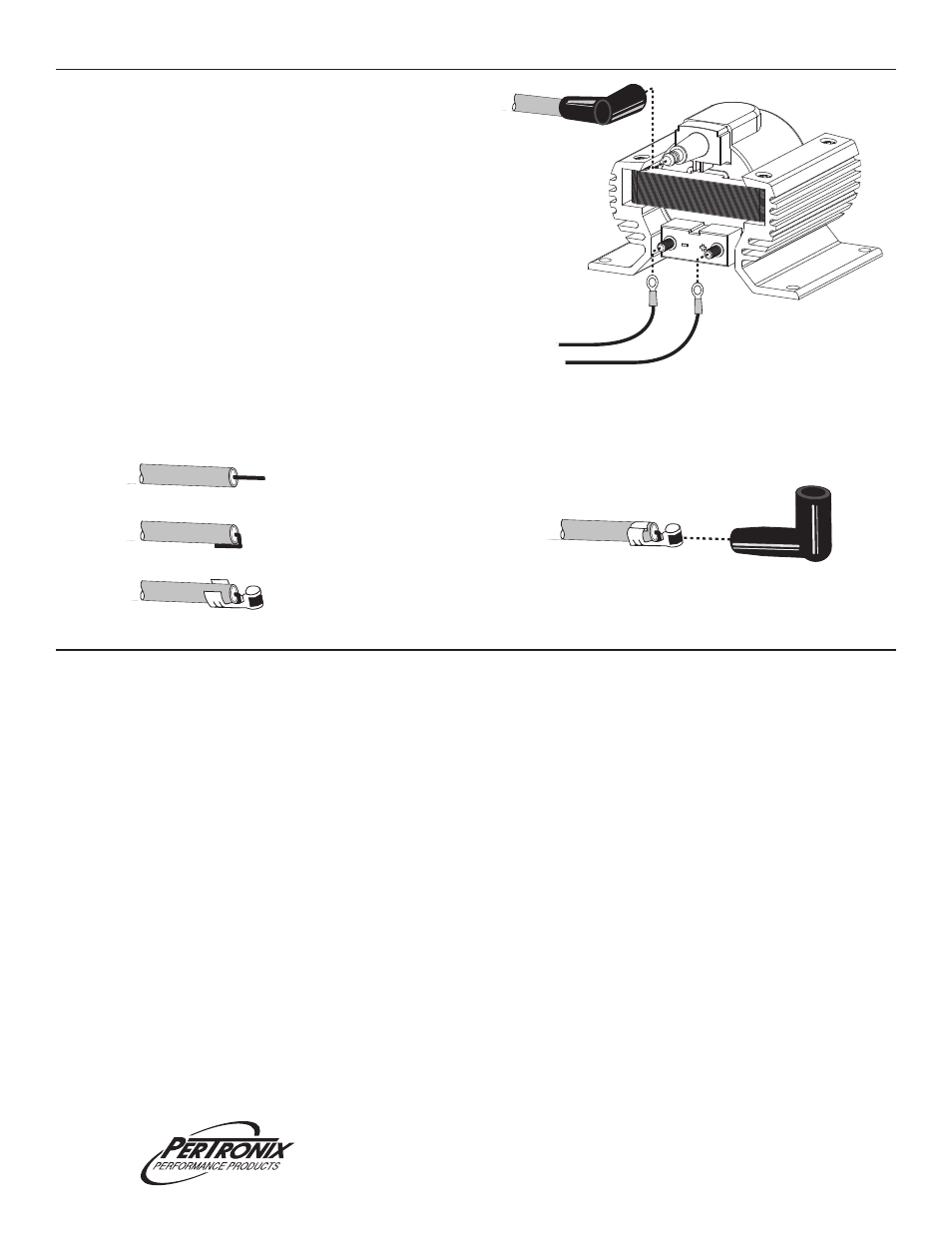

A. Strip 3/4” of the insulation to expose the conductor.
Be extra careful not to cut or damage the core.
B. Fold the conductor back onto the wire.
C. Slide the terminal into place.
D. Crimp the terminal into place with an ignition wire
crimping tool. Apply a small amount of dielectric
grease to the terminal. Spray the inside of
the boot with a silicone spray and slide
it into place.
To ignition
switch
To distributor
trigger
To distributor
cap
+
-
