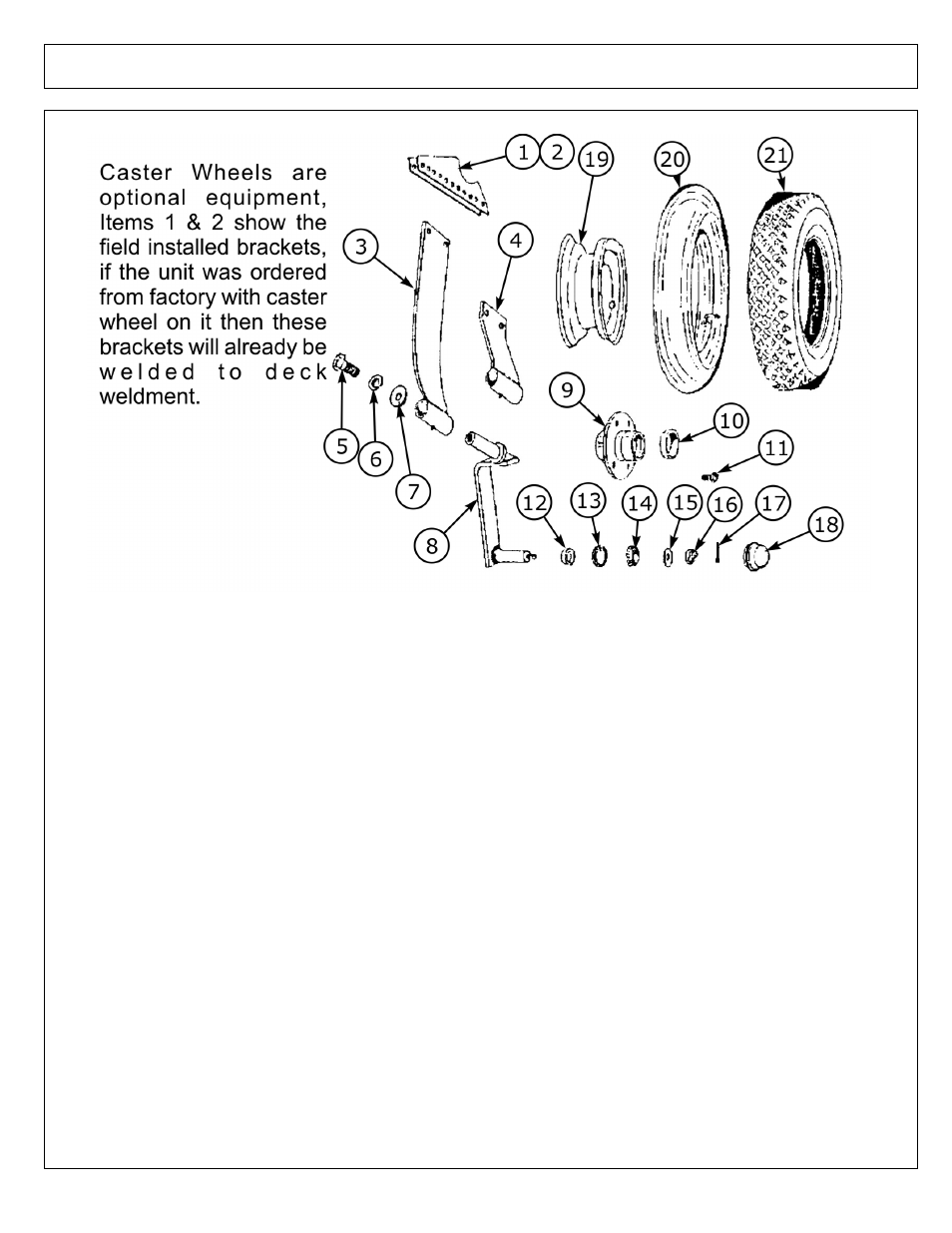

OPTIONAL CASTER WHEELS - REAR MOWER PNEUMATIC (PART 1)

ITEM

PART NO. QTY.

DESCRIPTION

700500

1

CASTER WHEEL PKG, PNEUMATIC 180` SWIVEL, FIELD INSTALL

701056M

1

CASTER WHEEL PKG, PNEUMATIC 360` SWIVEL, FIELD INSTALL

702882

1

PKG CSTR 180 PNEU

702192

1

PKG.CSTR 360 PNEU

1

100752

2

CSTR BRKT RH, FIELD INSTALL

2

100753

2

CSTR BRKT LH, FIELD INSTALL

3

701058M

2

CSTR SCKT ASY W/ZERK 360 DEG.

4

700191

2

CSTR SCKT ASY W/ZERK 180 DEG.

000142

4

BOLT

000520

4

LOCKWASHER

000170

4

NUT

5

000554

2

BOLT

6

000520

2

LOCKWASHER

7

103767

2

WASHER

8

100141

2

CSTR HALF FORK, LH OR RH

9

000621

2

HUB, W/ BRG CUPS

10

000226

4

BEARING CUP

11

00766771

8

NUT LUG 1/2 NF

12

000573

2

SPACER

13

000201

2

SEAL

14

000225

4

BEARING CONE

©2011 Alamo Group Inc.

Parts Section -88

Interstater (10-07) Rev 06-11
