Alamo 803213P User Manual
Page 24

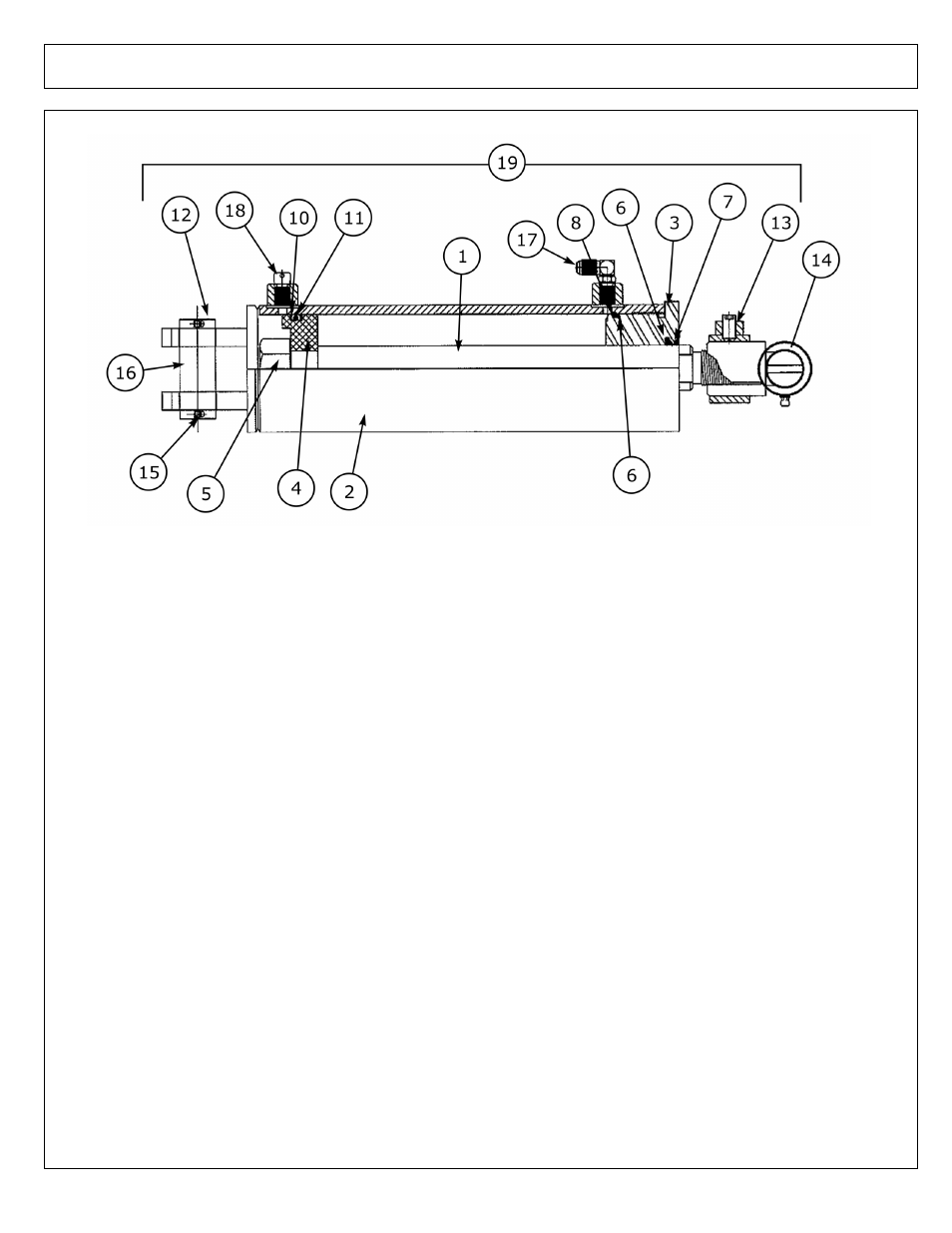

CYLINDER ASY - LIFT CYL - P/N 701104A
ITEM
PART NO. QTY.
DESCRIPTION
701104A
1
LIFT CYL ASY (W/0 FITTINGS)
1
002615
1
CYLINDER ROD
2
002614
1
CYLINDER BARREL
3
002613
1
CYLINDER HEAD
4
002616
1
PISTON
5
5JRC16140
1
NUT
11
*
1
SEAL PISTON
12
001007
2
COTTER PIN
13
700992
1
ROD END CLAMP W/ SET SCREW
14
700907
1
ROD END W/ GREASE FITTING
15
00755153
2
COTTER PIN
16
001750
2
PIN
17
02960018
2
ELBOW
18
02960054
1
PLUG
19
103139A
1
CYLINDER (W/O ITEMS 13 & 14)
20
000872
1
SEAL KIT, (ITEMS 6, 7, 8, 9, 10 & 11)
©2011 Alamo Group Inc.
Parts Section -21
Interstater (10-07) Rev 06-11
