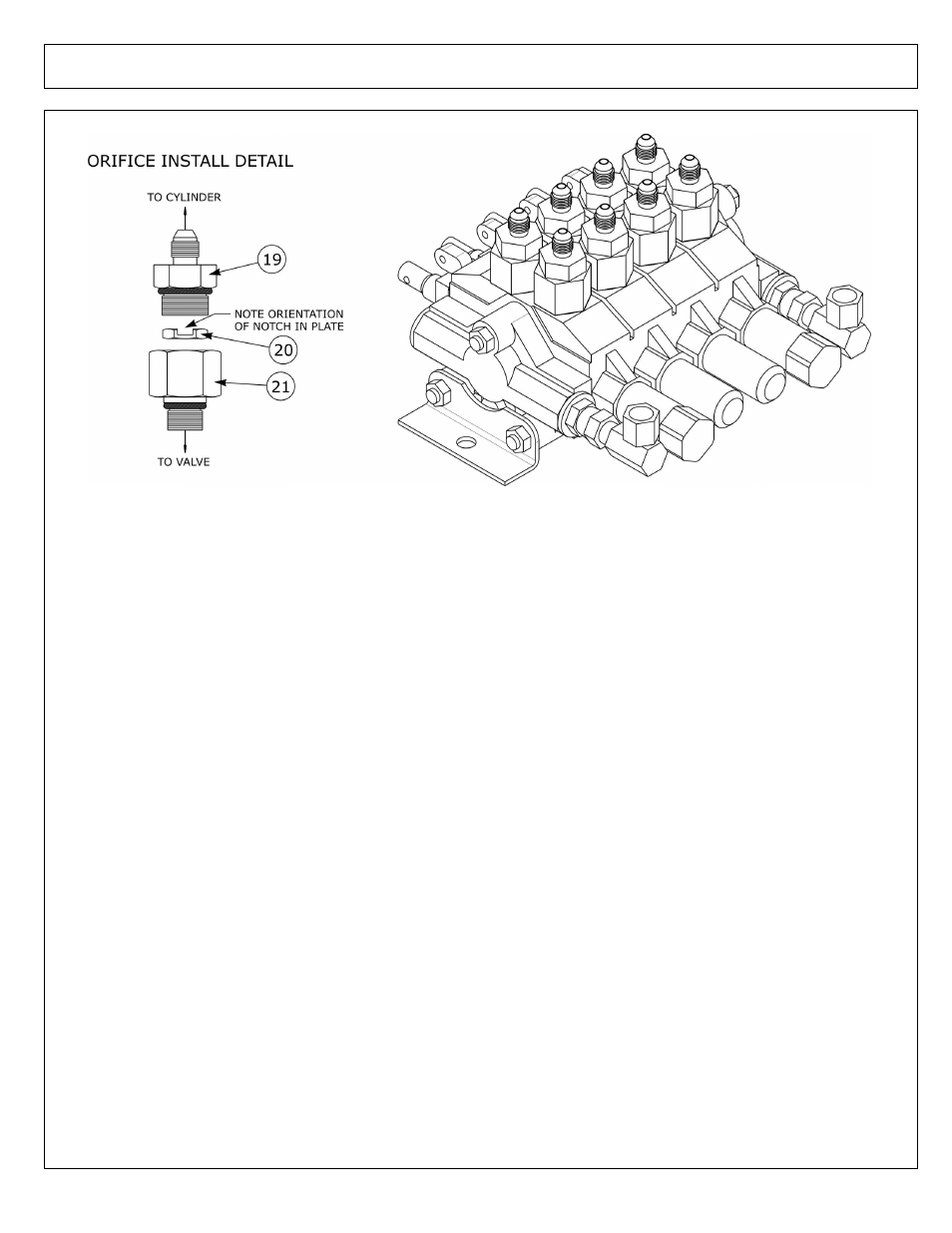

CONTROL VALVE ASY - 4 SPOOL (SEPT 2010 TO CURRENT)
ITEM PART NO. QTY. DESCRIPTION
02989811 1 VALVE 4-SPOOL W/BRKTS
1 001415 4 KIT,HANDLE ASSY
2 001416 1 KIT,CHECK VALVE ASSY
3 001417 4 KIT SPOOL POSITION
4 001418 4 DUST COVER (TILT SECTION)
5 001419 4 SECTION TILT COMPLETE
6 001420 4 KIT, BODY SEAL
7 001424 1 SECTION, OUTLET
8 001425 1 KIT, RELIEF VALVE
9 001426 1 KIT, INLET SECTION SEAL
10 001427 1 SECTION, INLET W/RELIEF VALVE
11 001428 2 BRACKET MOUNTING
12 001430 1 KIT TIE ROD
13 002487 4 KNOB,CONTROL VALVE
14 002488 2 BRACKET,CONTROL VALVE
15 02978229 2 BRACKET,CONTROL VALVE
16 02979134 4 SPOOL WIPER
17 02988821 2 O-RING, SPOOL SEAL
18 02988822 2 BUSHING, SPOOL SEAL
19 02822300 4 ADP HYD STGHT 6MB-4MJ
20 02969398 4 ORIFICE, 0.055 ONE-WAY RSTCR
21 02972112 4 ADP HYD STGHT 6MB-4MJ
