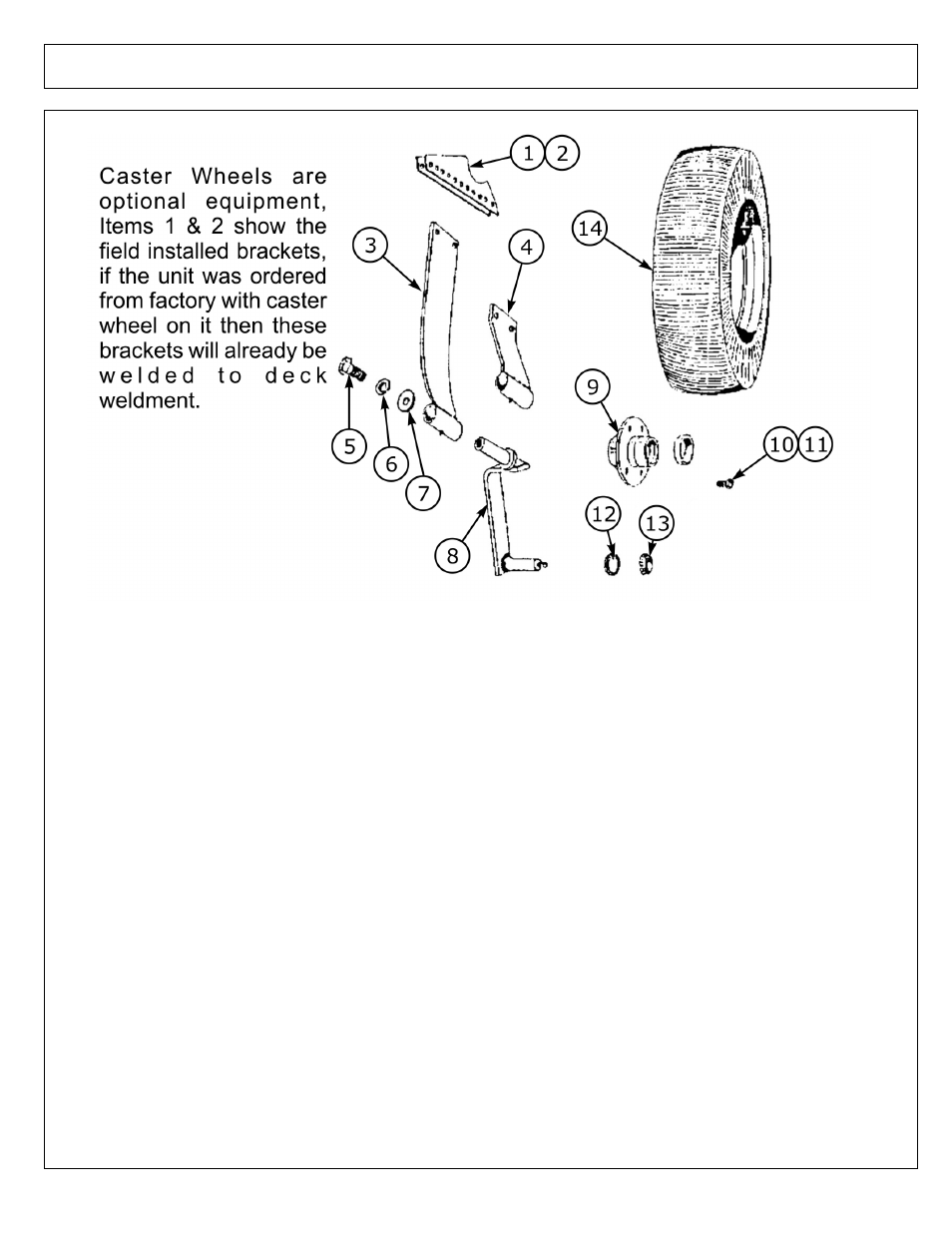

OPTIONAL CASTER WHEELS - REAR MOWER LAMINATED
ITEM PART NO. QTY. DESCRIPTION
700502 1 PKG,180 LAM. CSTR WHL,FLD INSTL
701057M 1 PKG,360 LAM. CSTR WHL FLD INSTL
702883 1 PKG,CSTR,180 LAM.
702193 1 PKG,CTR,360 LAM.
11 00001300 8 LOCKWASHER,1/2 PLATED
1 100752 2 RH CASTER BRACKET
2 100753 2 LH CASTER BRACKET
3 701058M 2 CASTER, SOCKET ASY W/ZERK 360°
4 700191 2 CASTER SOCKET ASSY W/ZERK 180°
5 00749130 4 HHCS 1/2-13UNC 1-3/4 PL5
6 000170 4 UT 1/2 NC HEX PL
7 103767 2 WASHER,1-3/4 X 33/64 X 1/4
8 02985508 2 HALF FORK COMP
9 373024C 2 HUB W/BRG CUPS&GREASE FITTING
10 00752255 8 BOLT,HHCS 1/2 NF X 1 PL5
12 373024E 2 SEAL
13 00013701 4 BEARING CONE 1" ID
14 373024H 2 ASY,WHEEL & TIRE
