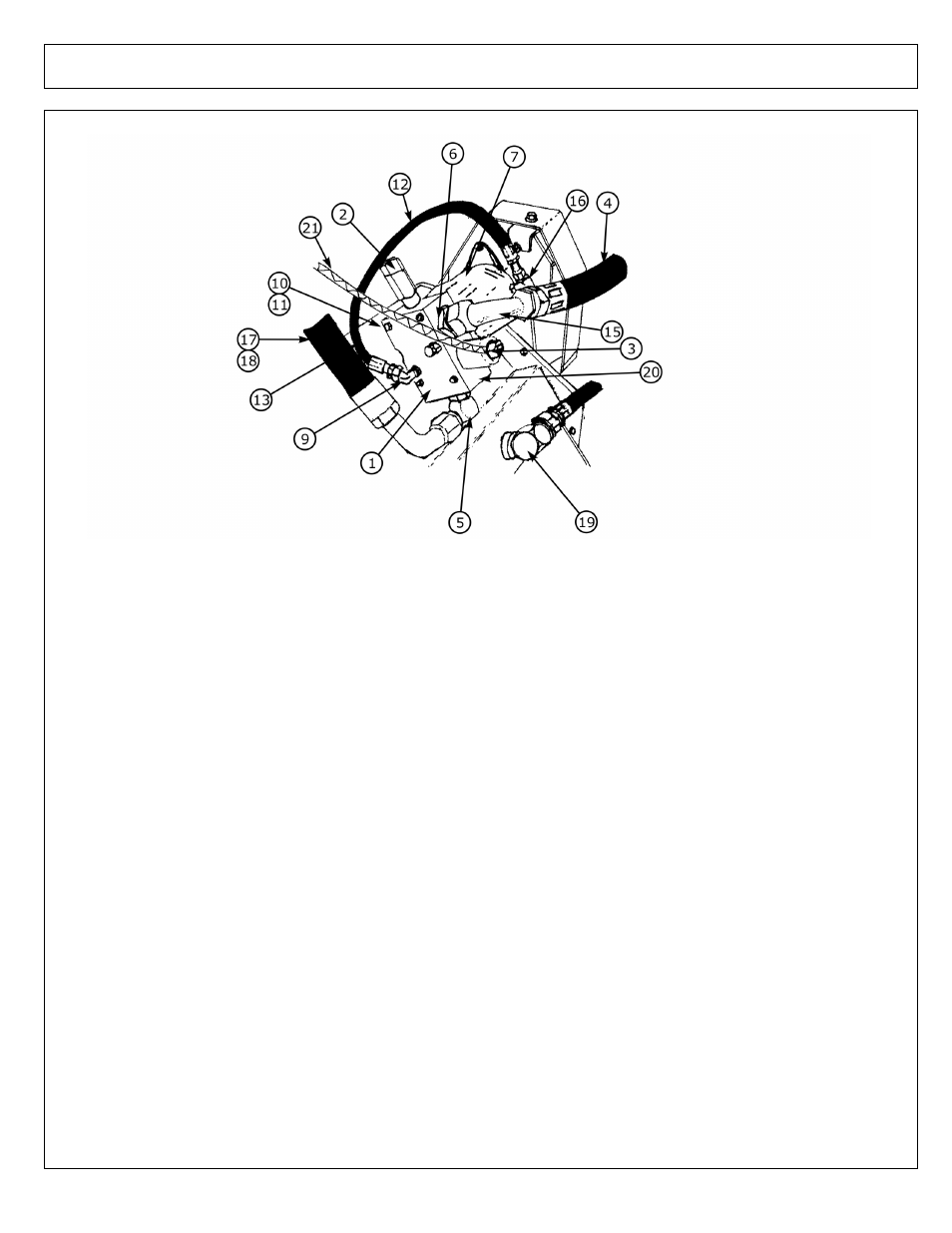

MOTOR ASY - RIGHT WING

ITEM

PART NO. QTY.

DESCRIPTION

1

02964792

1

MANIFOLD

2

001759

1

RELIEF

3

02989700

1

SOLENOID VALVE - COMPLETE

02989699

1

SOLENOID VALVE CARTRIDGE

02989698

1

SOLENOID COIL

4

*

1

HOSE, PRESSURE

5

02090900

1

ELBOW

6

7AH551832

1

ADAPTER

7

02985522

1

MOTOR

8

02964793

2

O-RING (NOT SHOWN)

9

63149100

1

ELBOW

10

00011700

4

LOCKWASHER

11

7AH551832

4

BOLT

12

001579

1

HOSE-DRAIN

13

002017

1

HOSE RETURN CROSSOVER

15

02958858

1

FORMED TUBE

16

001654

1

ELBOW ADAPTER

17

03200283

1

ADAPTER

18

001574

1

CAP

19

02956851

1

ADAPTER

20

03200587

1

PLUG (NOT SHOWN)

21

002496

1

WIRE HARNESS RIGHT WING
