5. While holding this position, plug the battery into the receiver; power receiver
6. The LED on the receiver will go solid and within 5 seconds the LED will flash 3

times quickly, indicating servo is now reversed

7. Disconnect battery from receiver
8. Turn transmitter off

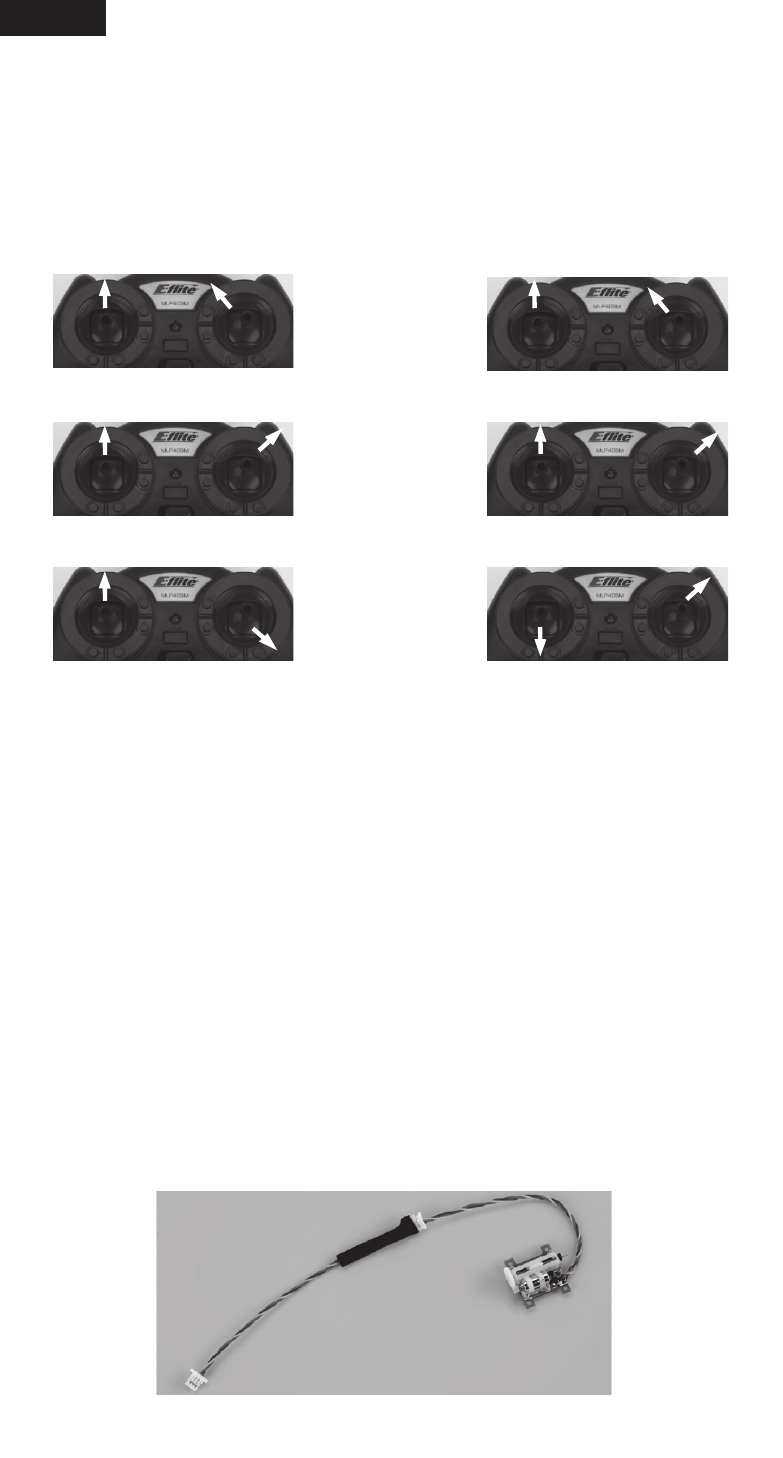

Mode 1

Mode 2

Reversing Optional Linear Servos

Reversing the servo is useful when implementing certain installations, such

as dual ailerons, flaps, etc. Spektrum offers a servo reversing lead that can be

plugged between the receiver and the optional servo.

To safely accomplish advanced programming feature changes, please enlist the

use of a helper. One to hold the aircraft to prevent unintended flyaways, and one to

make the changes on the transmitter.

To reverse the servo using the reversing lead:

1. Plug the reversing lead into the servo

2. Plug servo into CH2 or Reversed CH2/CH6 ports

3. Power receiver using a charged battery

4. Once receiver connects, the servo is now reversed

5. Disconnect battery from receiver

6. Remove servo reversing lead and store it in a safe place for future use

7. Reinstall servo lead into servo port

CH2

1. Full THRO

2. Down ELEV

3. Left AILE

CH3

1. Full THRO

2. Down ELEV

3. Right AILE

CH4

1. Full THRO

2. Up ELEV

3. Right AILE

THRO/RUDD ELEV/AILE

ELEV/RUDD THRO/AILE

THRO/RUDD ELEV/AILE

ELEV/RUDD THRO/AILE
