6 SPEKTRUM DX18 • TRANSMITTER INSTRUCTION MANUAL
EN
Function
1
Antenna 1
2
RIght Trim
3
Right Knob
4 Switch E
5
Switch H
6
Switch G
7
Switch F
Function
8
Throttle/Aileron Stick (Mode 1)
Elevator/Aileron Stick (Mode 2)
Throttle/Rudder Stick (Mode 3)
Elevator/Rudder Stick (Mode 4)
9
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
10
Aileron Trim (Mode 1,2)
Rudder Trim (Mode 3,4)
11 Roller
12
Charge Port
13 On/Off Switch
14 LCD
Function
15 Clear Button
16 Back Button
17
Speaker Grill
18 Rudder Trim (Mode 1,2)
Aileron Trim (Mode 3,4)
19
Elevator Trim (Mode 1,3)
Throttle Trim (Mode 2,4)
20
Elevator/Rudder Stick (Mode 1)
Throttle/Rudder Stick (Mode 2)
Elevator/Aileron Stick (Mode 3)
Throttle/AileronStick (Mode 4)
21 Switch C
Function
22 Switch B
23 Switch A
24
Switch D
25 Bind/Switch I
26 Left Trim
27 LED
The transmitter comes with a thin,
clear plastic fi lm applied to some
front panels for protection during
shipping. Humidity and use may
cause this fi lm to come off. Carefully
remove this fi lm as desired.

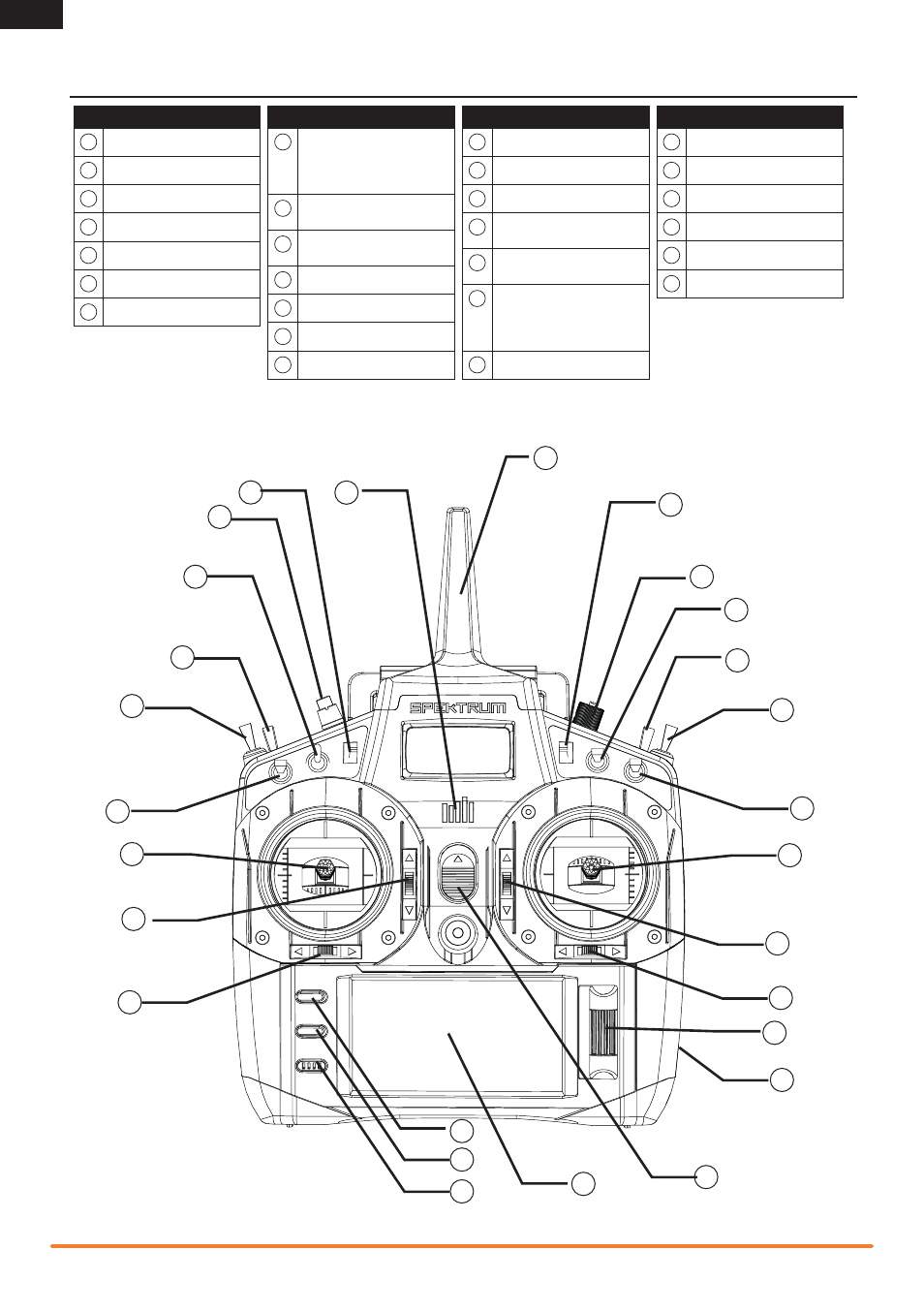

TRANSMITTER FUNCTIONS
