28 SPEKTRUM DX18 • TRANSMITTER INSTRUCTION MANUAL
EN

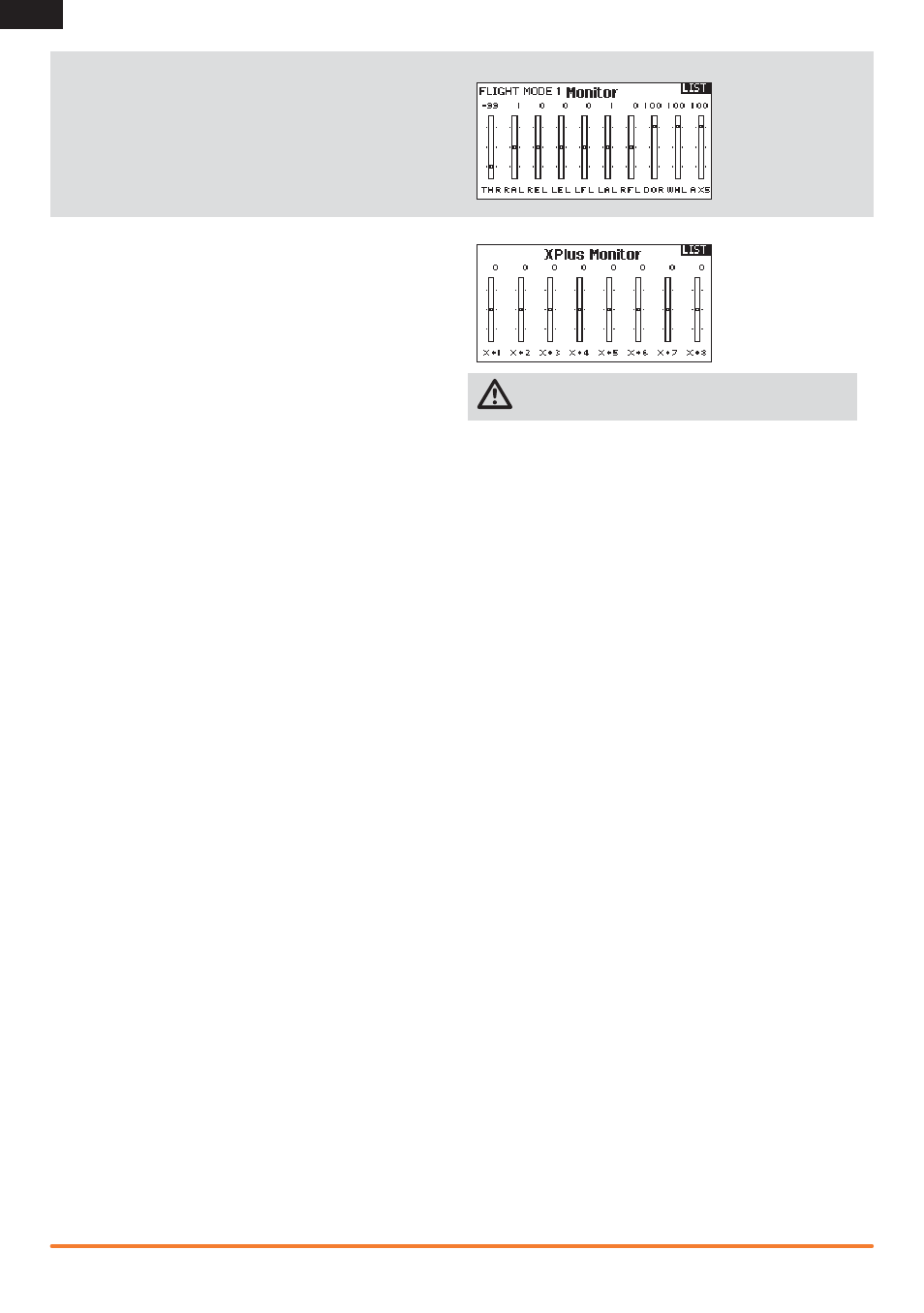

Monitor
The Monitor screen displays the servo positions for each chan-
nel graphically and numerically. This is useful to verify program-
ming functions, trim settings, mix directions, etc. The numeric
value is directly relative to the travel adjust and mix values (e.g.,
100% travel adjust equals 100% value in the Monitor).
X-Plus Monitor
Use of the X-Plus Monitor requires X-Plus to be active. The
X-Plus Monitor screen displays the output position for each
X-Plus channel graphically and numerically. This is useful to
verify programming functions, trim settings, mix directions, etc.
The numeric value is directly relative to the travel adjust and
mix values (e.g., 100% travel adjust equals 100% value in the
X-Plus Monitor). The X-Plus Monitor shows the additional chan-
nels and requires servos which can be connected to the optional
X-Plus module and an X-Plus-capable receiver. X+1 and X+2
channels also serve as the monitor for channels 11 and 12 on a
12 channel receiver.
CAUTION: Do NOT connect throttle or any primary
control sur face to the X-Plus Module.
