15 SPEKTRUM DX18 • TRANSMITTER INSTRUCTION MANUAL
EN

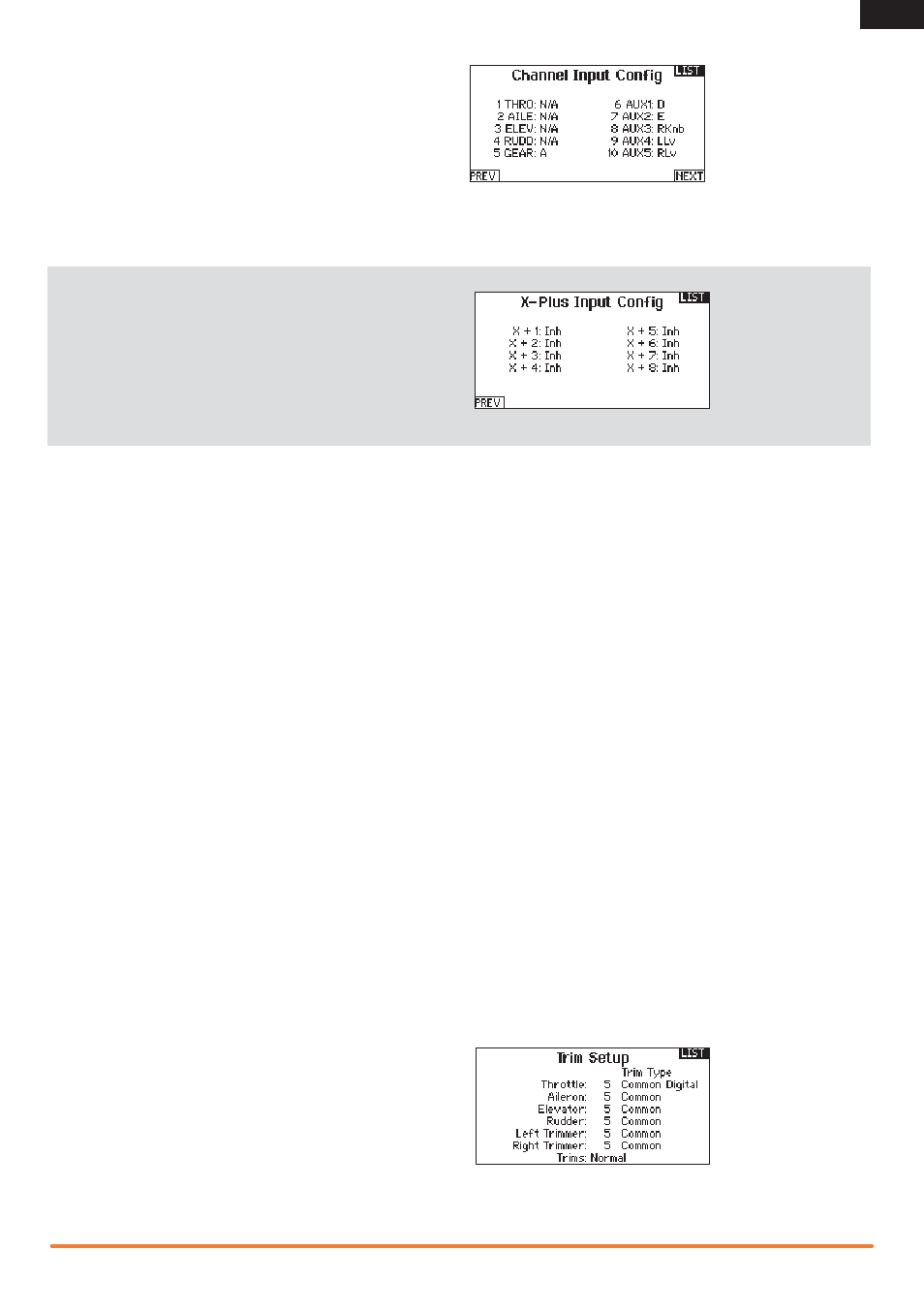

Channel Input Confi guration
The Channel Input Confi guration screen enables you to assign a
transmitter channel to a different control stick or switch.
1. Select NEXT on the RX Port Assignments screen to access
the Channel Input Confi guration screen.
2. Scroll to the transmitter channel you wish to re-assign and
press the scroll wheel. The box around the current input
selection fl ashes.
3. Scroll left or right to select the desired control stick or
switch.
4. Press the scroll wheel to save the selection.
Trim Setup
Use the Trim Setup screen to change the size of the trim step
and the trim type.
Trim Step
Adjusting the trim step value determines how many “clicks” of
trim you input each time you press the trim button. Changing
the trim step value to 0 disables the trim for the channel.
To change the trim step value:
1. Scroll to the trim step channel you wish to change.
2. Select the trim step value and scroll left or right to change
the value.
3. Press the scroll wheel to save the selection.
Trim Type
The two Trim Type options are Common and F Mode.
Common trim type maintains the same trim values for all fl ight
modes.
F Mode trim type enables you to save trim values for individual
fl ight modes if you fi nd, for example, the aircraft requires aileron
trim in Flight Mode 1 but not in Flight Mode 2.
Trim Assignment
In a few instances, you can reassign a trim to a different loca-
tion.
Aircraft Model Type
Throttle
- Throttle Digital trim button (default)
- Left Analog lever
- Right Analog lever
Helicopter Model Type
Throttle and Pitch Hover Trim-Used to trim the throttle and pitch
setting for precision hovering. Note: This does not affect normal
throttle trim operation.
-Right Knob
-Left Analog Lever
-Right Analog Lever
-L Trim
-R Trim
Active Gyro and Governor Trim-Used to trim the gyro and gover-
nor settings in fl ight.
-L Trim
-R Trim.
Trim Location
Normal and Cross trim types are available. Normal trims align
with the control stick; for example, the throttle trim is next to the
throttle stick.
Cross trims reverse the position of the trims; for example, the
Throttle trim is next to the Elevator stick and vice versa.
To change the Trim Position from Normal to Crossed, select
Normal at the bottom of the Trim Setup screen and press the
scroll wheel.
IMPORTANT: Crossed trims will cross both sets of trims for both
gimbals.
X-Plus Input Confi guration
The X-Plus Input Confi guration screen enables you to assign any
X-Plus channel to any transmitter input.
1. Select NEXT on the Channel Input Confi g screen to access
the X-Plus Input Confi g screen.
2. Scroll to the X-Plus channel you wish to change.
3. Press the scroll wheel once and scroll left or right to change
the X-Plus Input for that X-Plus channel.
