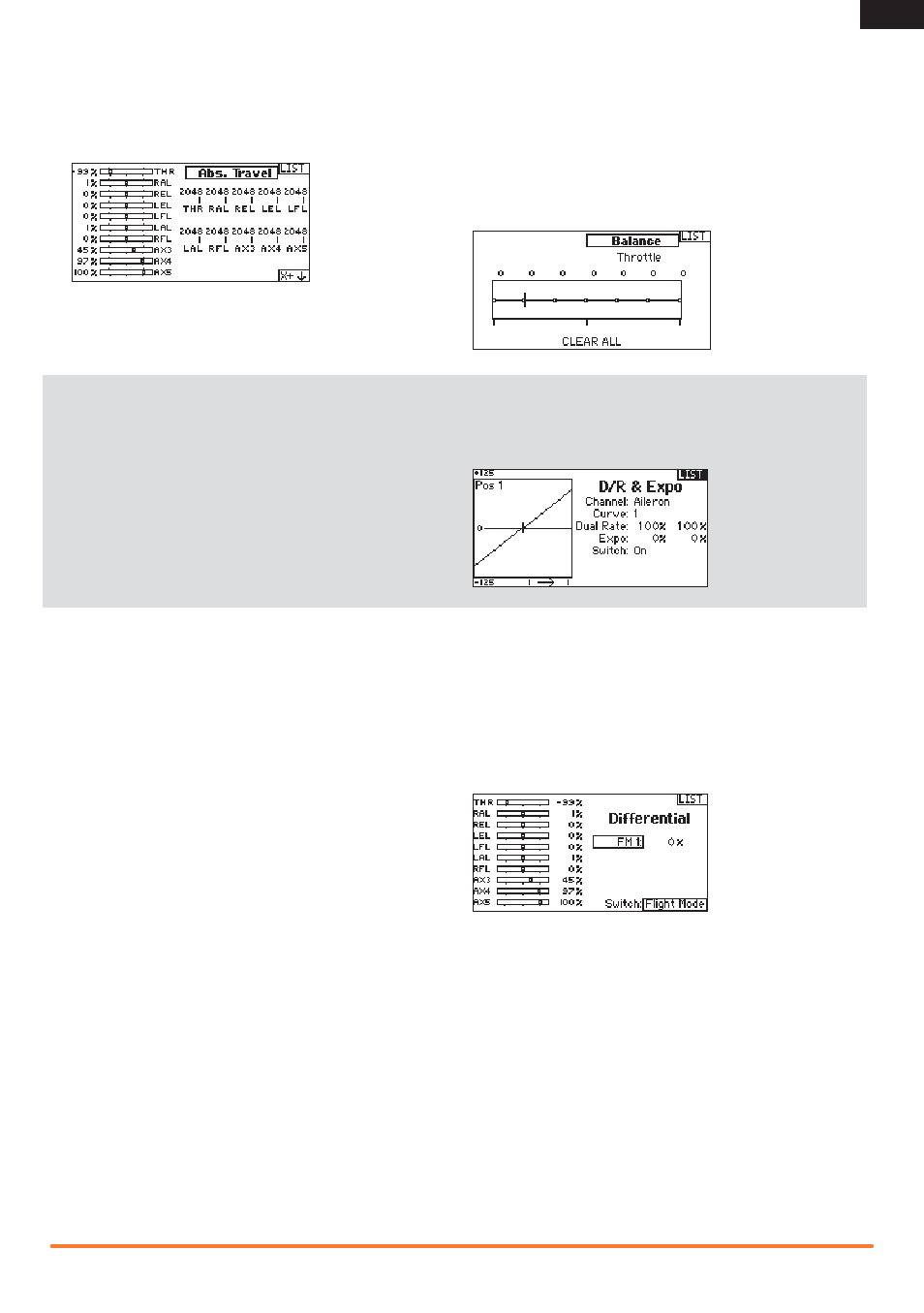

D/R & Exponential
Dual Rates and exponentials is available on the aileron, elevator
and rudder channels.
To adjust the Dual Rate and Exponential:
1. Scroll to the channel and press the scroll wheel once. Scroll
left or right to select the channel you wish to change and
press the scroll wheel again to save the selection.
2. Scroll to dual rate and press the scroll wheel. Scroll left or
right to change the value and press the scroll wheel again to
save the selection.
Exponential affects control response sensitivity around center but
has no affect on overall travel. Positive exponential decreases
the sensitivity around the center of gimbal movement.
Differential (Air and Sail Types only)
The Differential screen enables you to increase or decrease the
amount of differential between aileron control surface throws.
Positive Differential values decrease the amount of “up” travel
without affecting the “down” travel on the opposite control
surface.
Negative Differential values decrease the amount of “down”
travel without affecting the amount of “up” travel on the opposite
control surface.
The Differential menu option only appears when a multi-servo
aileron wing type is active in Aircraft Type.
To adjust the Differential:
1. Scroll to Switch and press the scroll wheel. Scroll right to
select On (Differential is always on) or assign the differential
to a switch position.
2. Press the scroll wheel a second time to save the selection.
3. Scroll to Diff: and press the scroll wheel once to change the
value.
4. Press the scroll wheel again to save the selection.
Absolute (Abs.) Travel
The Abs. Travel function limits the amount of travel on a chan-
nel. Adjust the Abs. Travel value to prevent a throttle servo or
helicopter cyclic servo from binding when a mix is applied.
Balance
Balance is available on all channels to fi ne-tune the servo
position at up to 7 points. This is a precision curve mix that is
normally used to prevent binding when multiple servos are used
on a single control surface.
You can also use the Balance menu option to match throttle
response on twin engine aircraft or level the swashplate on a
helicopter.
