Installation
Final Check and adjustments
BEFORE SWITCHInG THE aPPLIanCE On
Before applying power to the unit for the first time, check
for the following conditions:
• The unit is level.
• All electrical safety provisions have been adhered
to and the electrical connections are correct.
• Water is connected, turned on and all of the connec-
tions are water tight.
• Grease filters are in their proper positions
• The transport cart is inserted into the cooking cavity.
When the cart is not inserted into the unit, water can
spill onto the floor causing it to become slippery. If
the door will not close properly, use the following
adjustment procedure.
• BC-20G only - Check gas fittings with leak detection
solution.
dOOR adJUSTMEnT
The hinges may be adjusted using the following proce-
dure:
1. Adjust the top hinge plate by loosening the three
mounting bolts on the top right corner of the unit.
2. Adjust the bottom hinge pin by loosening the mount-
ing bolt located under the bottom hinge plate on the
lower right corner of the oven.
3. Adjust the hinges so that the door back and the unit
face are parallel.
4. Tighten the bolts so that there is no further movement.
5. The adjustment is correct when the door closes
firmly and no steam leaks from the gasket.
The hinges can also be adjusted as follows:
1. Adjust the door catch by loosening the four mounting
screws located on the inside surface of the oven door.
2. The adjustment is correct when no steam leaks
from the gasket. DO NOT over compress the door
gasket. When closed the door should slightly com-
press the door gasket.
Oven
Door
Oven
Door

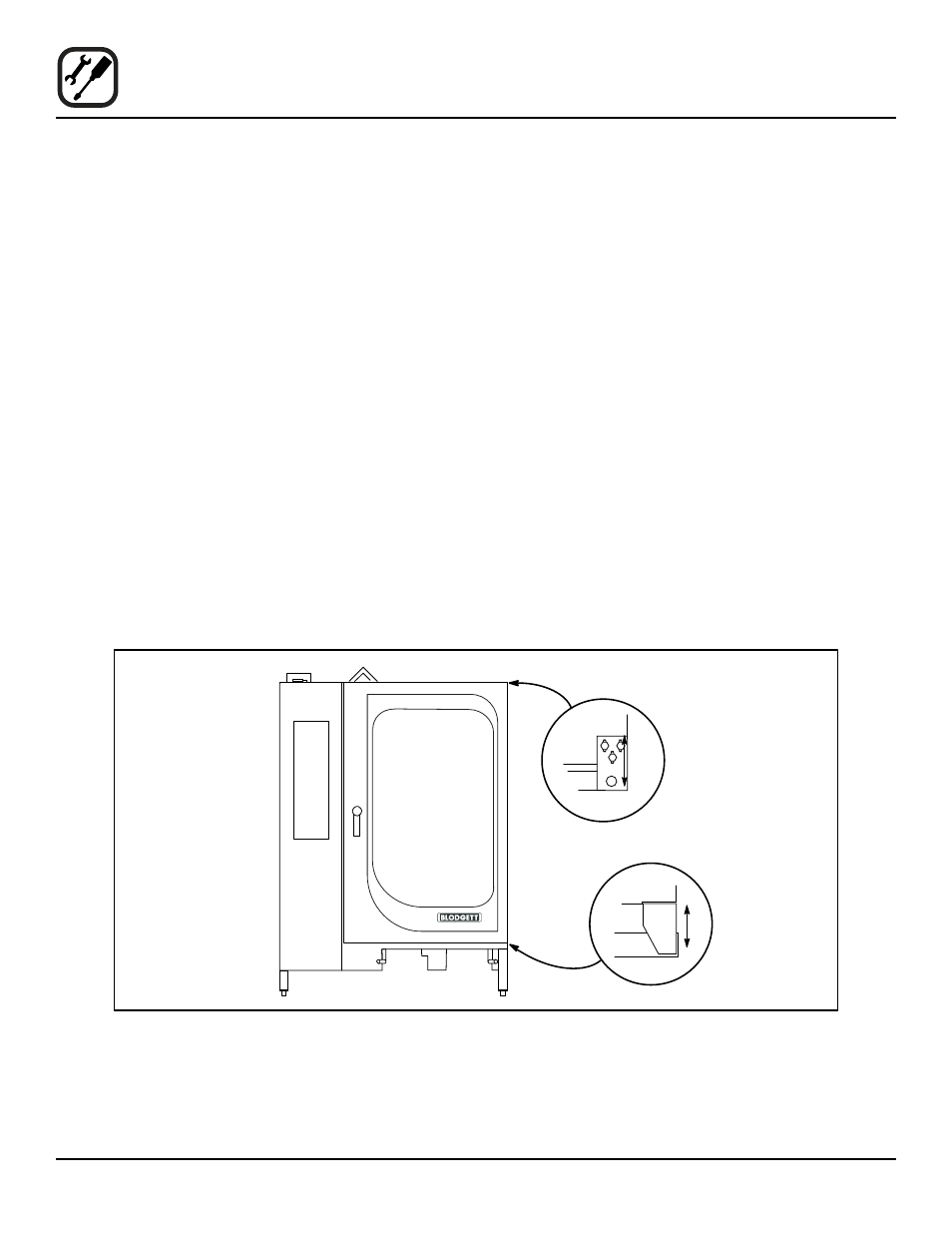

Figure 3
