18
Installing the Switch
You can install the switch on a table or in a 19-inch rack. To install the switch,
perform the following procedure:
1. Remove all components from the shipping package and store the
packaging material in a safe location.
Note
You should use the original packaging material if, for any reason, you
need to return the unit to Allied Telesyn International.
2. Locate a level, secure surface for the switch.
3. To mount the switch in a rack, do the following:
a. Affix one of the rack-mounting brackets to the side of the switch, as
shown in Figure 6.

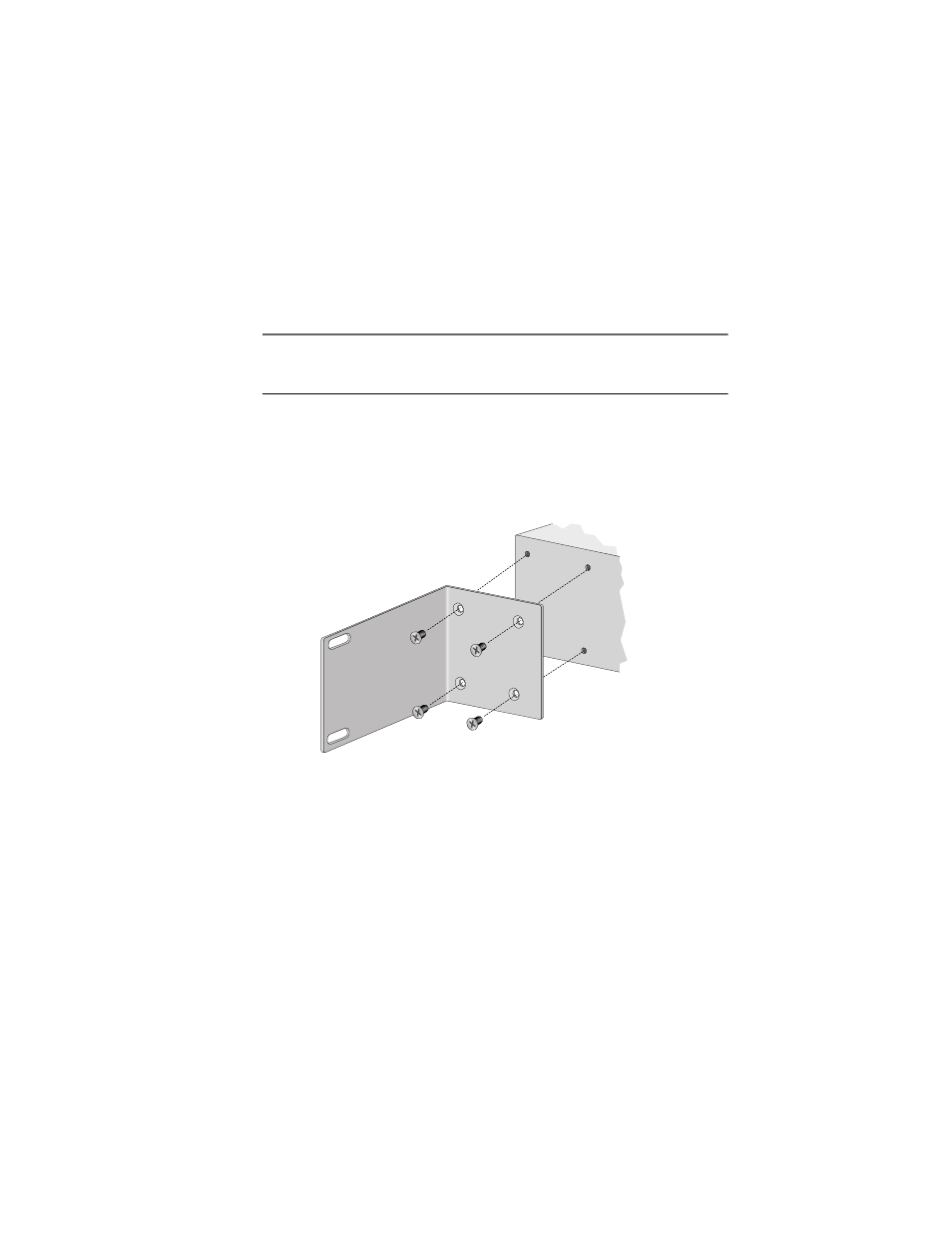

Figure 6 Installing a Rack-mounting Bracket
b. Install the second bracket on the other side of the switch.
c. Install the switch in a 19-inch rack. (Screws for mounting the switch
in the rack are not provided.)
