AT-RPS8000 Quick Install Guide
7
4. Attach the other end of the DC power cord to the R.P.S. Input
connector on the back panel of the Ethernet switch. (Refer to Figure 5
for the R.P.S. Input connector.)
5. Slide the new AT-PWR8000 module into the AT-RPS8000 unit. Use
the handle, shown in Figure 7, to guide the module into the unit.

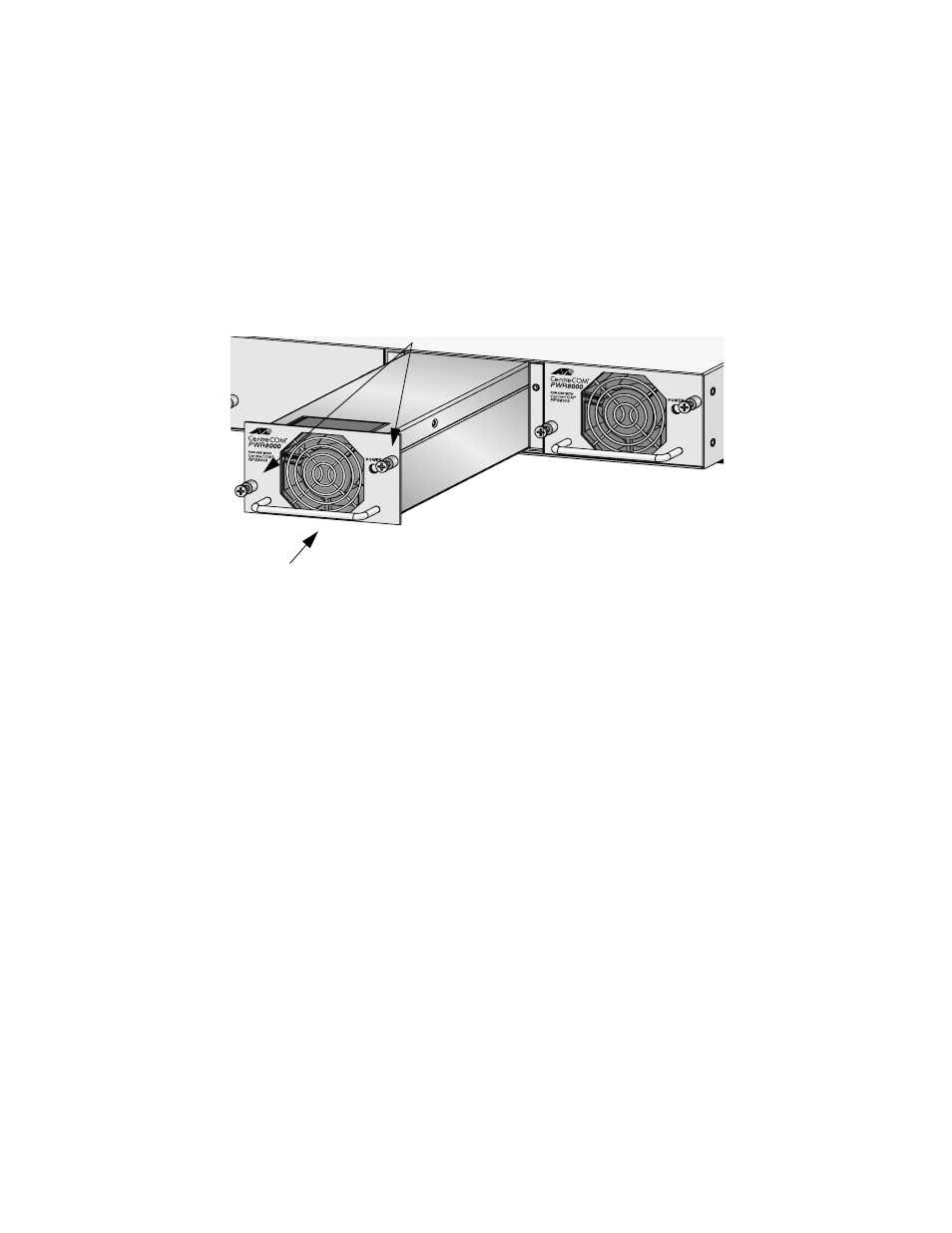

Figure 7 Installing an Additional AT-PWR8000 Module
6. Once firmly installed, use a Phillips screwdriver to tighten the captive
screws on the module to secure it to the AT-RPS8000 unit.
7. Make sure the LED on the front of the AT-PWR8000 module is solid
green.
8. Make sure the RPS LED on the front of the Ethernet switch is solid
green to indicate a good connection to the AT-PWR8000 module.
Handle
Captive Screws
