Pinout
Assignments

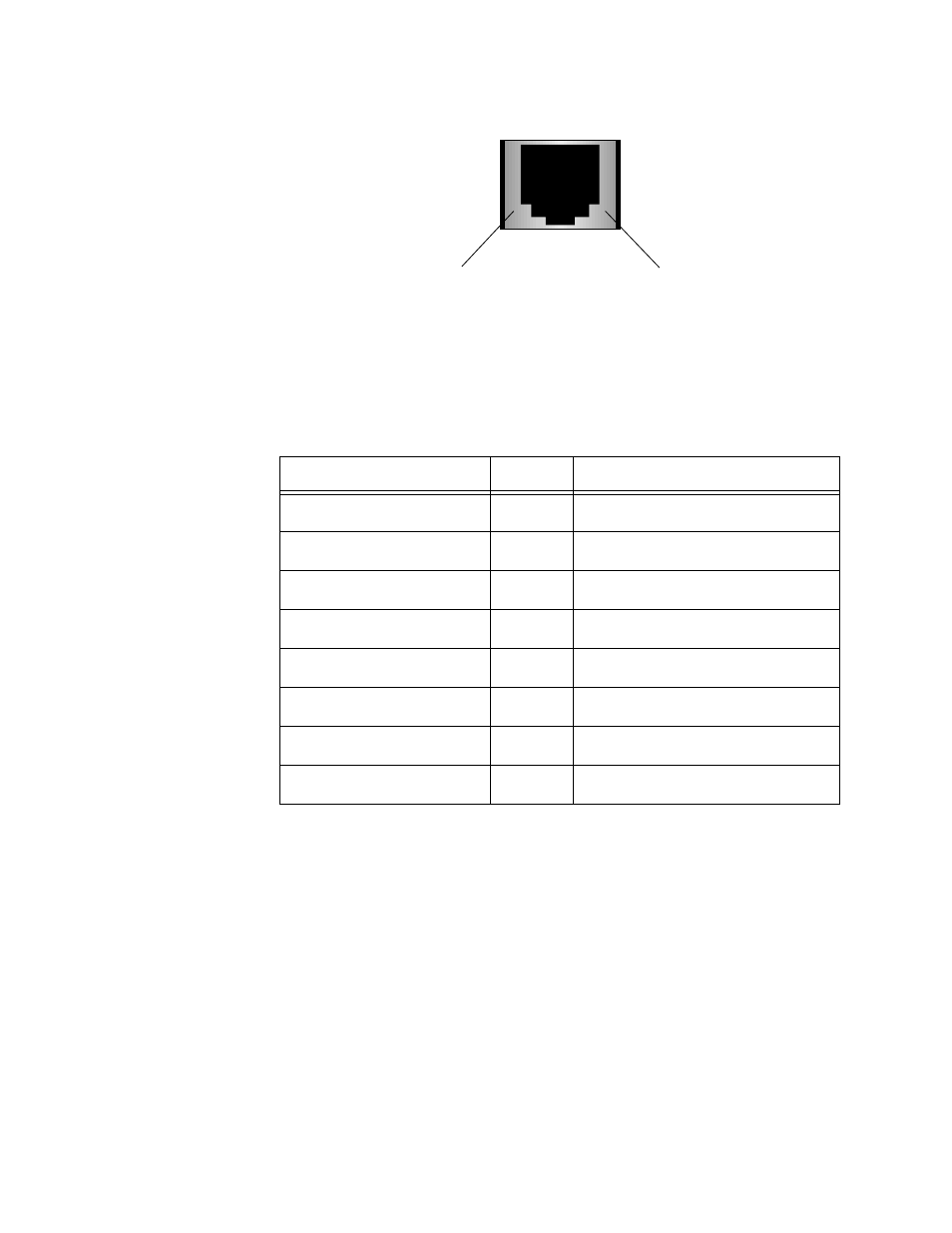

Figure 2 shows the pin assignments of the RJ-45 connector.
Figure 2 RJ-45 Pin Assignments
Table 3 lists the RJ-45 connector pins and their signals for a 1000Base-T.
Table 3 RJ-45 Connector Pinouts
Pinout Pair Signal
1 0 TX and RX+
2 0 TX and RX-
3 1 TX and RX+
4 2 TX and RX+
5 2 TX and RX-
6 1 TX and RX-
7 3 TX and RX+
8 3 TX and RX-
Pin 1 Pin 8
