Allied Telesyn

AT-VIEW PLUS

DEVICE MANAGER

PN 613-50504-00 Rev C

Page 80 of 121

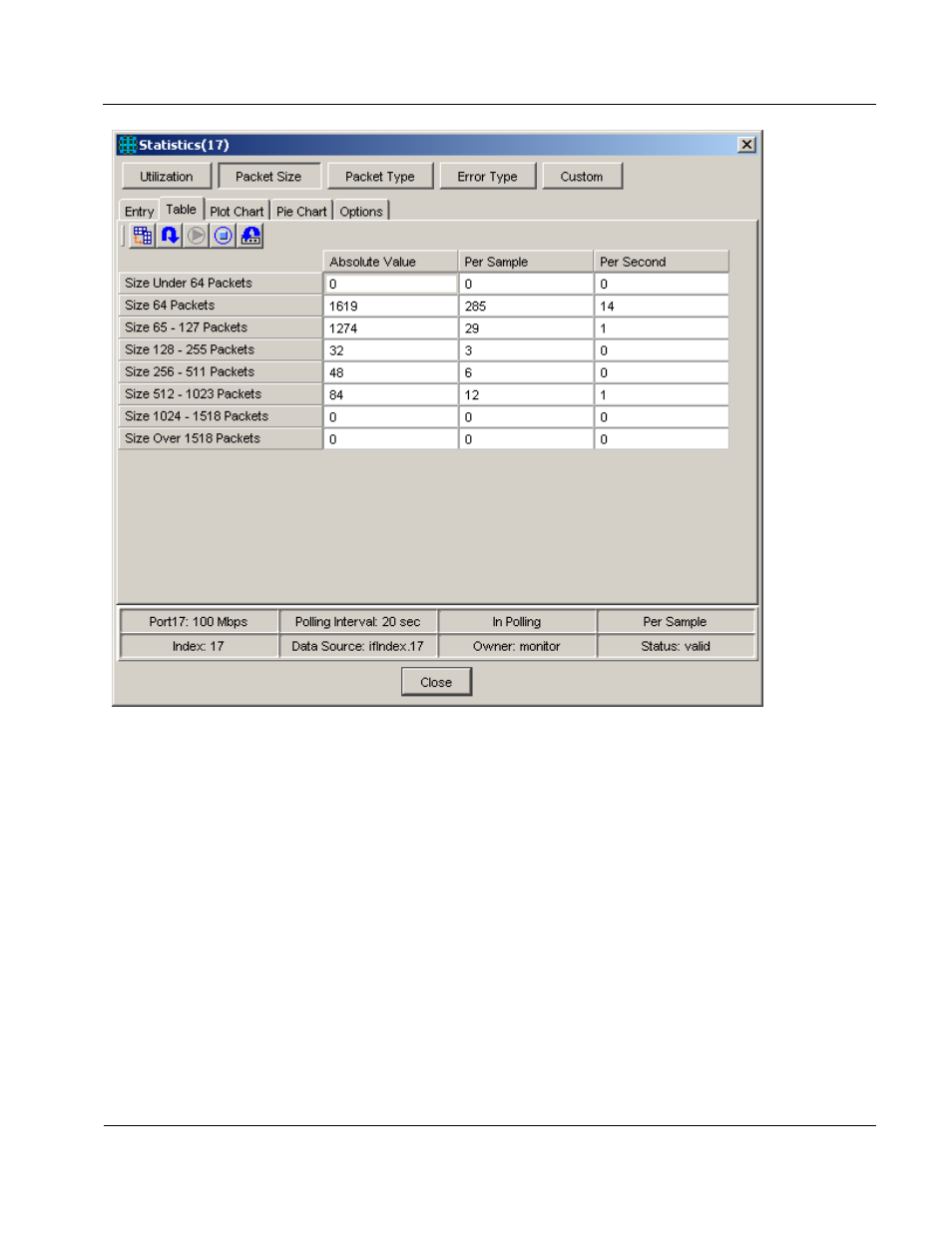

RMON Statistics window

7.2.1 Data Group Buttons

In the RMON Statistics window, you can view various network statistics. Data is grouped by the
type of information. You can view each type of information by clicking a Data Group button at the
top of the window (just below the title bar).

Note

- Data Group buttons change the data to be displayed. The tabs change the view of the data,

that is, how the data selected by the Data Group buttons is displayed.

The following Data Group buttons are available.

Utilization

Shows utilization as a percentage. This is calculated by AT-View Plus Device Manager.

Packet Size

Shows the number of packets by their octet size.
