Installing the Media Converter
The following procedure explains how to install an AT-LMC100SC or an
AT-LMC100ST Media Converter.
To install the media converter, perform the following procedure:
1. Remove all equipment from the package and store the packaging material
in a safe place.
Note
Do not remove the dust cover from the fiber optic port until you are
ready to connect the fiber optic cable. Dust contamination can adversely
impact the operating performance of the port on the media converter.
2. If you are installing the media converter in an AT-MCR12 chassis, refer to
the chassis’s installation guide for instructions on how to install the unit,
then proceed to Step 5.
3. Place the media converter on a flat, secure surface (such as a desk or
table) leaving ample space around the unit for ventilation.
4. Attach the four protective rubber feet to the bottom of the media
converter. See Figure 6. Do not attach the protective feet if you are
installing the unit in an AT-MCR12 chassis.

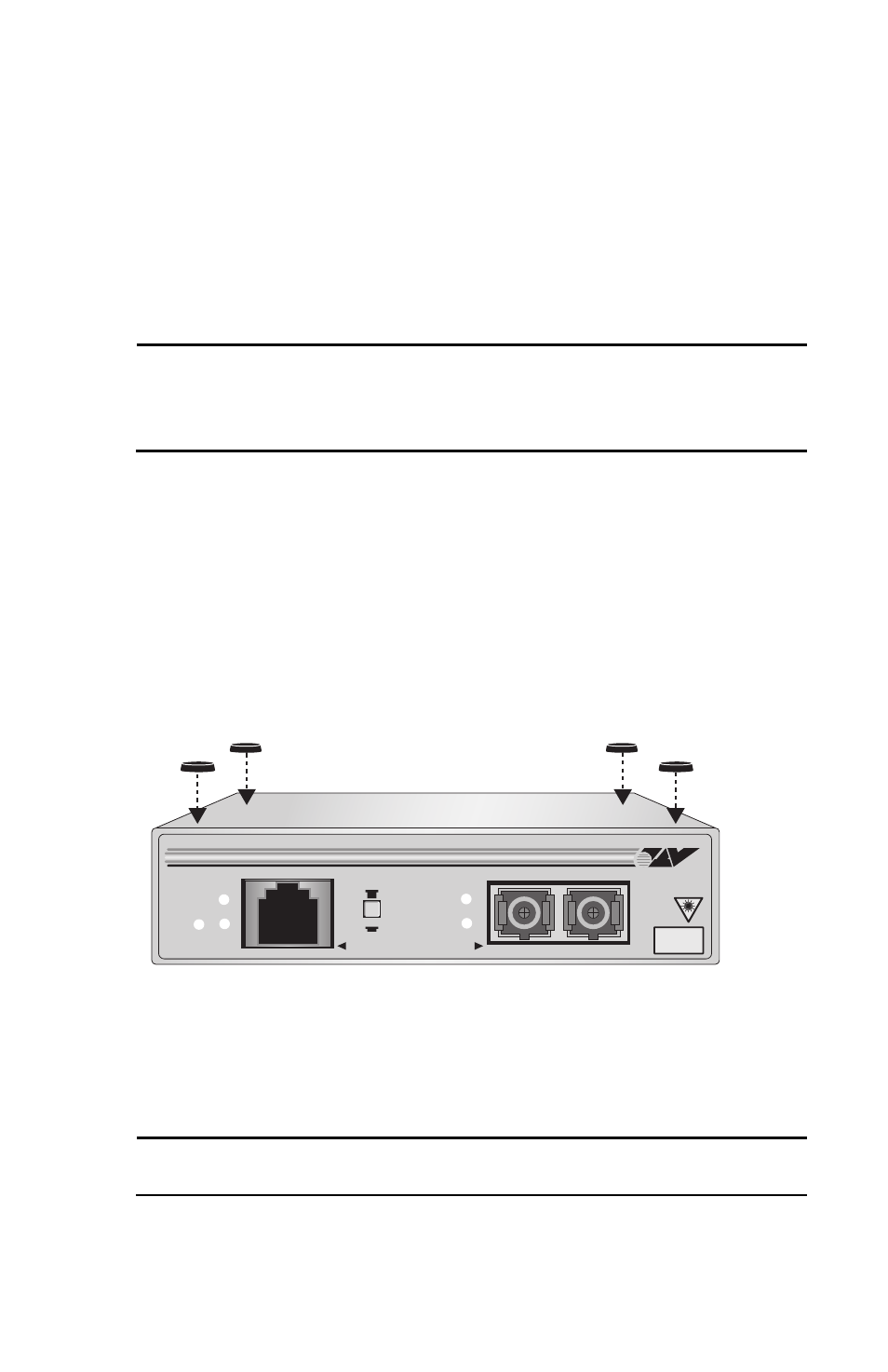

Figure 6 Attaching the Protective Feet
5. Plug the AC/DC power adapter into an appropriate AC power outlet and
insert the power plug into the DC receptacle located on the back of the
unit. Refer to Figure 7 on page 10.
Note
This step does not apply if you installed the unit in an AT-MCR12 chassis.
