Page 16: Standalone
Overview
6
Network Topologies
The AT-FS705L switch can be used in three different topologies: standalone,
cascade, and uplink. Each topology is describe below.
Standalone

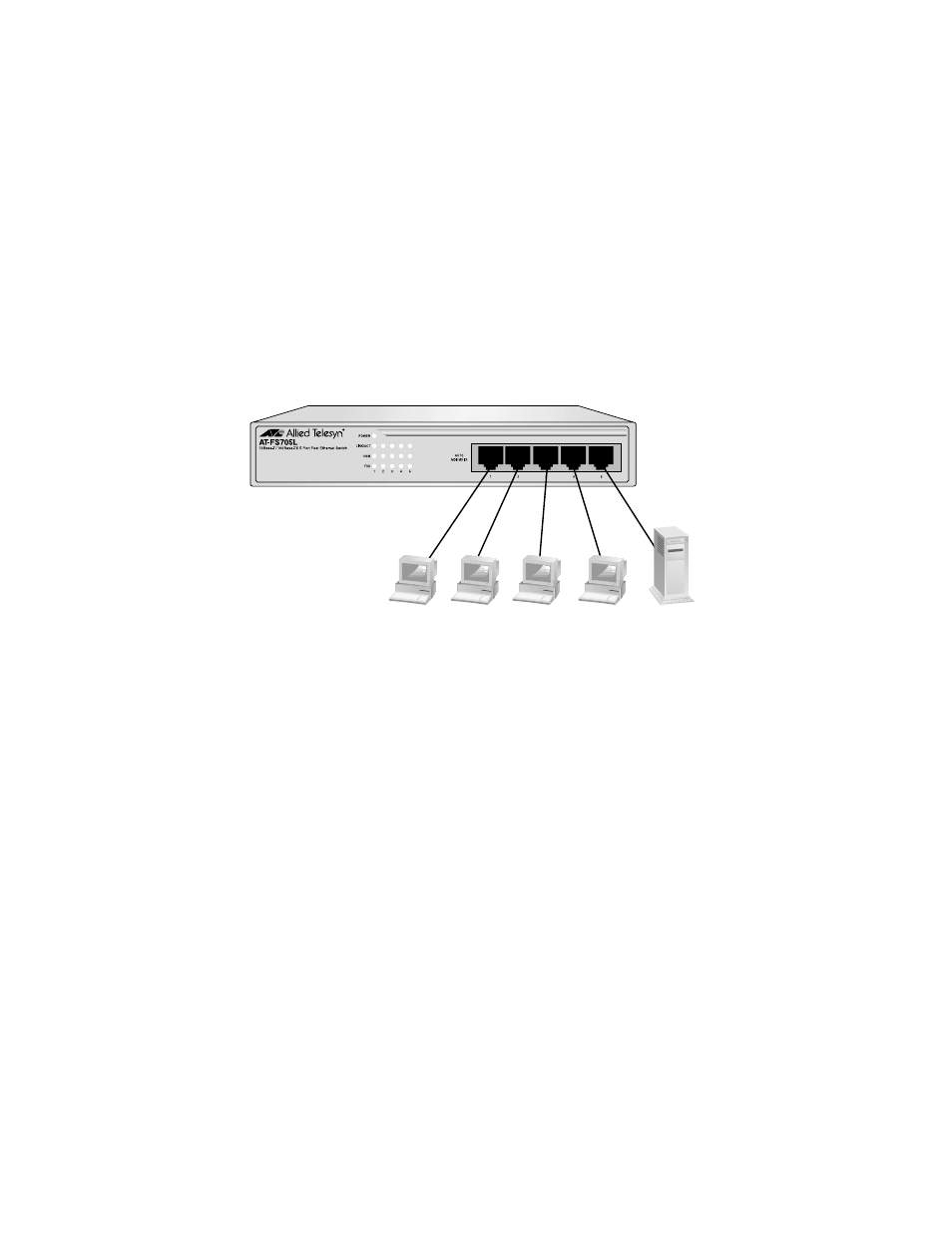

A standalone topology uses one switch to connect the end-nodes. Figure 2
illustrates a standalone topology that uses an AT-FS705L switch to connect
several workstations and a server.
Figure 2 Standalone Topology
