ADSL Router Overview

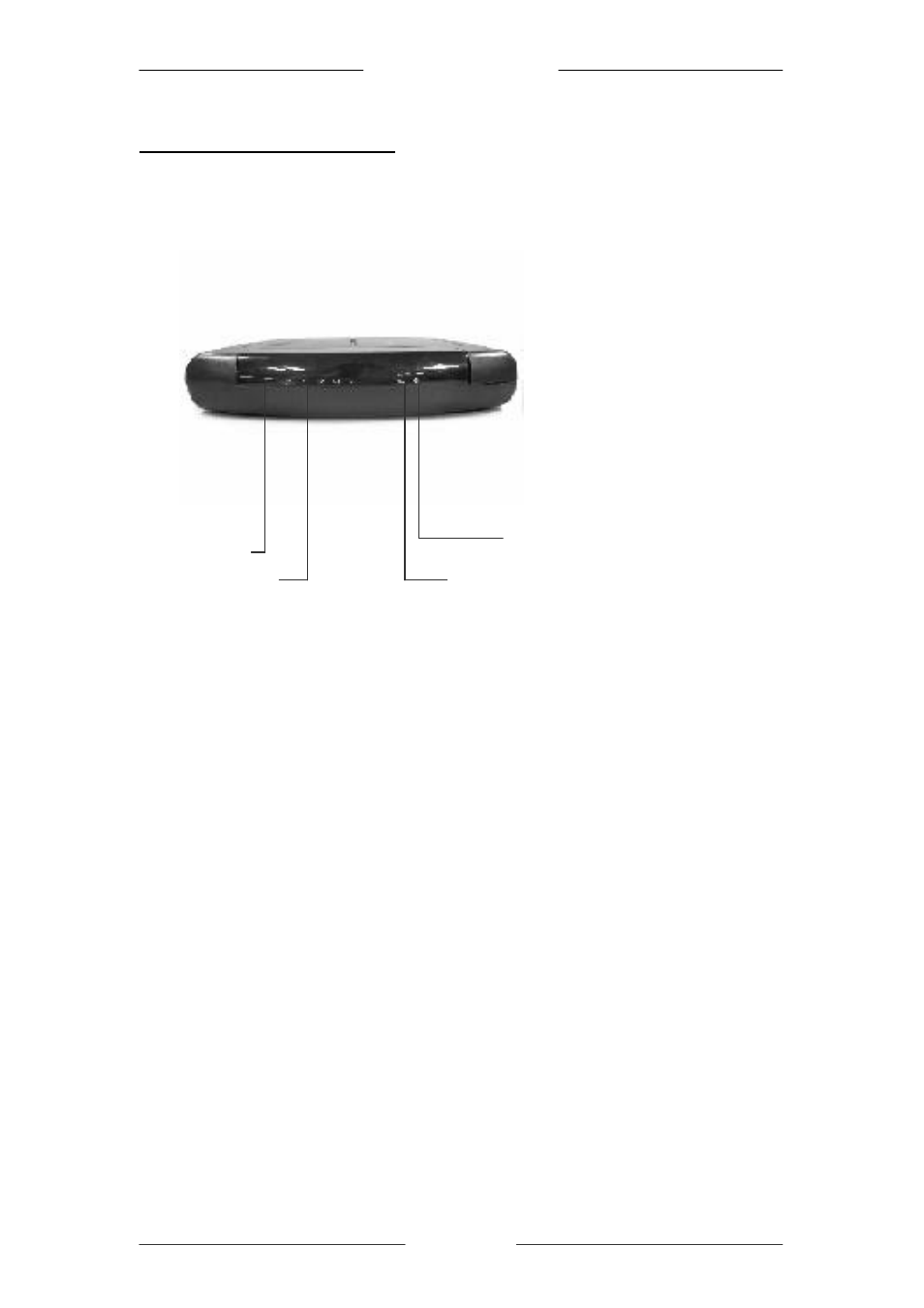

Front Indicators








①

④


②


③


④

①

②

③


① POWER

Lights up when power is supplied to the ADSL router.


② ETH/ACT

Lights up when the Ethernet cable is properly connected from your Ethernet
network card to the ADSL router.
Flickers when the ADSL router is transmitting/receiving data.


③ DSL

Lights up when the ADSL connection is established.

Flickers when the ADSL router is trying to establish a connection to your ADSL
Provider.


④ INTERNET

Lights up when the PPP connection to your ADSL Provider is established.
