AT-MC10x Series Media Converters Installation Guide
33
RJ-45 Twisted Pair Port Pinouts
Figure 16 illustrates the pin layout to an RJ-45 connector and port.

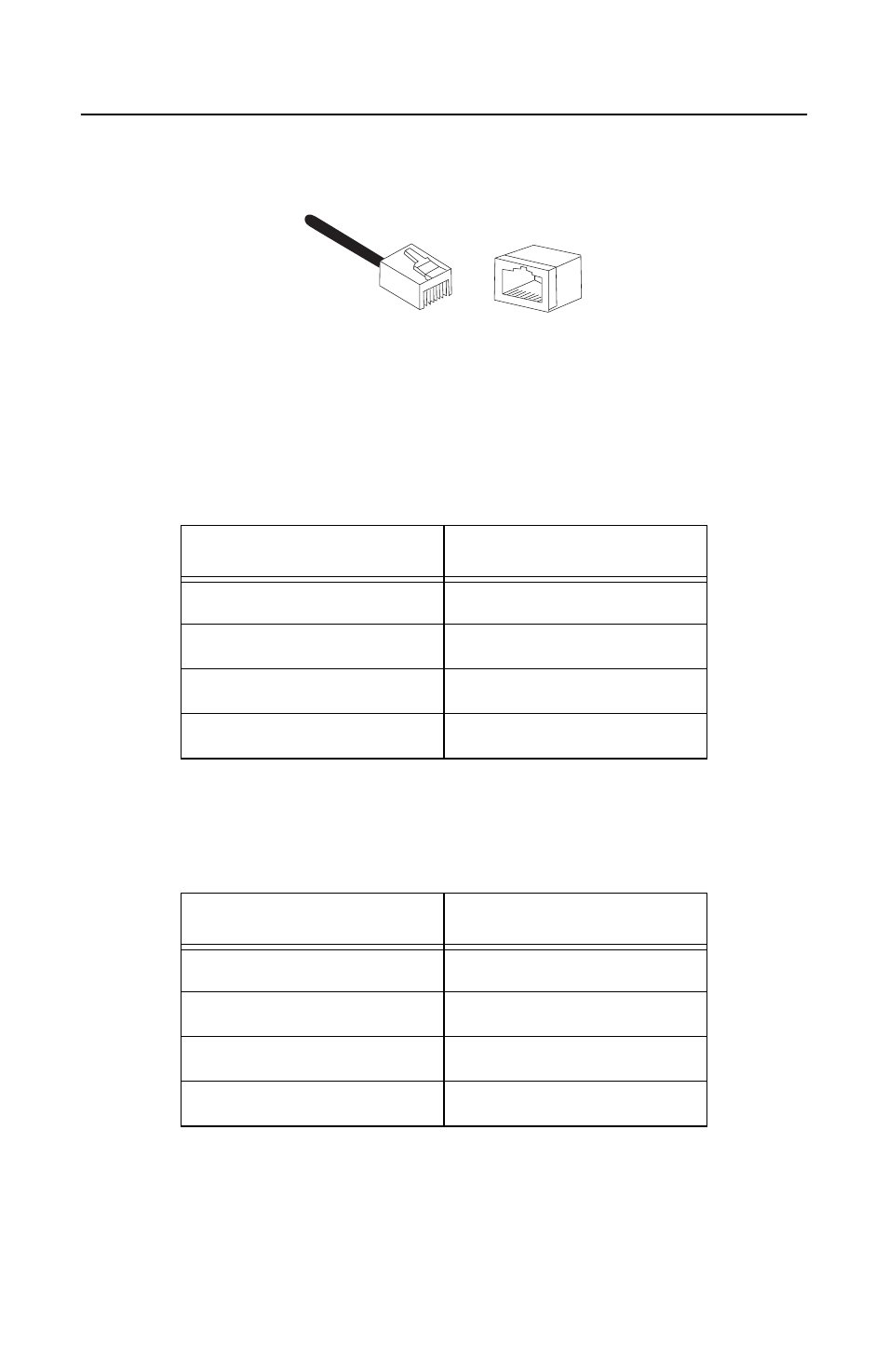

Figure 16. RJ-45 Connector and Port Pin Layout
Table 7 lists the RJ-45 pin signals when a twisted pair port is operating in
the MDI configuration at 100 Mbps.
Table 8 lists the RJ-45 port pin signals when a twisted pair port is
operating in the MDI-X configuration at 100 Mbps.
Table 7. MDI Pin Signals (100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
Table 8. MDI-X Pin Signals (100Base-TX)
Pin Signal
1 RX+
2 RX-
3 TX+
6 TX-
8
8
1 1
