Chapter 1: Overview
4

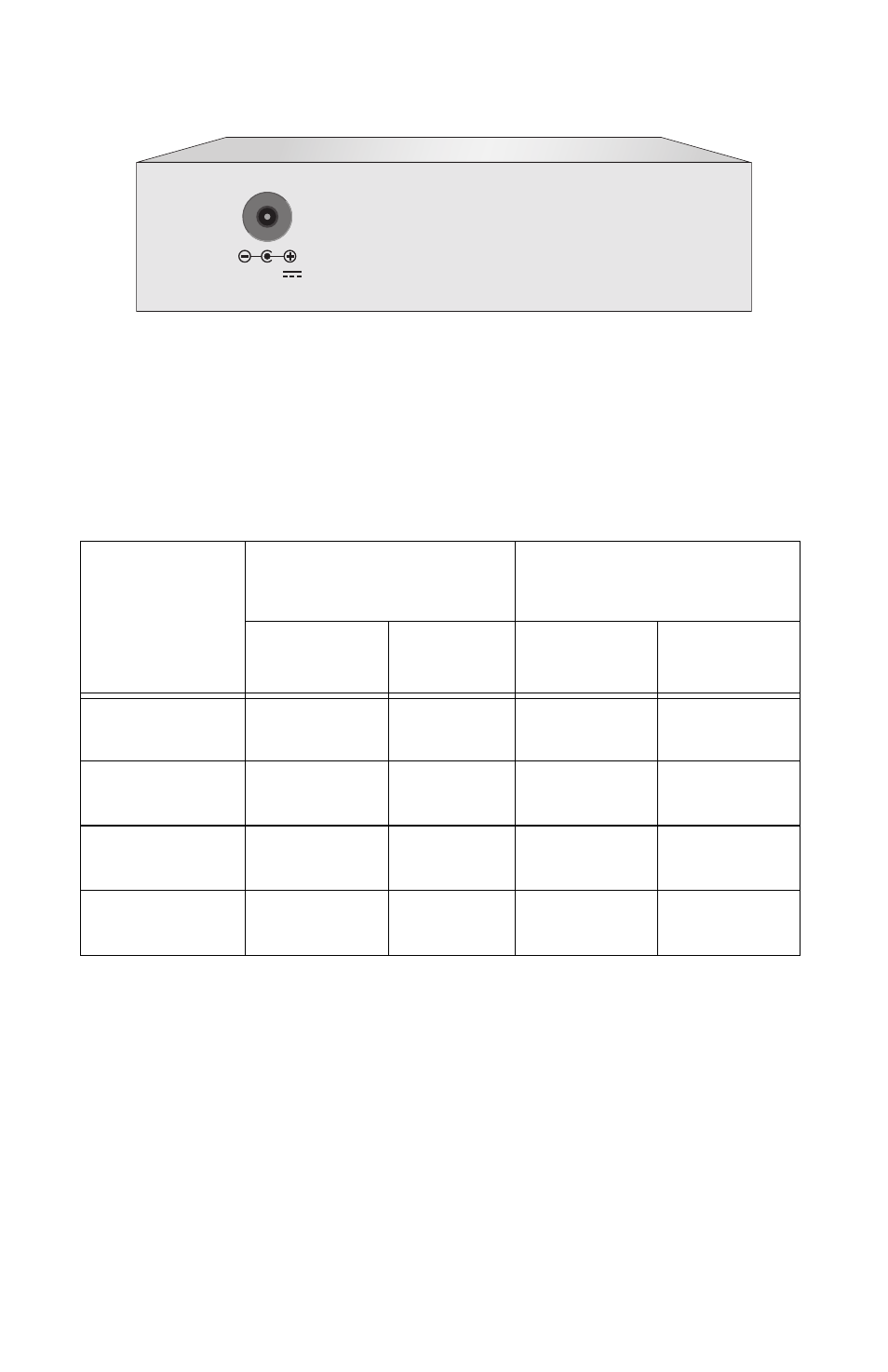

Figure 7 displays an AT-MC103LH Media Converter.
Figure 7. AT-MC10x Series - Rear Panel
Table 1 lists the maximum operating distances for the AT-MC101XL,
AT-MC102XL, AT-MC103XL, and AT-MC103LH media converters.
1. Maximum distance may be less depending on the duplex mode of the end
stations and the type of fiber optic cabling used with the port.
Table 1. Maximum Operating Distances
(AT-MC101XL, AT-MC102XL, AT-MC103XL, and AT-MC103LH)
Model
Type of Connector
Maximum Operating
Distance
1
100Base-
FX
100Base-
TX
100Base-
FX
100Base-
TX
AT-MC101XL
Dual ST
RJ-45
2 km
(1.2 mi)
100 m
(328 ft)
AT-MC102XL
Dual SC
RJ-45
2 km
(1.2 mi)
100 m
(328 ft)
AT-MC103XL
Dual SC
RJ-45
15 km
(9.3 mi)
100 m
(328 ft)
AT-MC103LH
Dual SC
RJ-45
40 km
(24.8 mi)
100 m
(328 ft)
12VDC
