AT-CV1203 Chassis Installation Guide
33

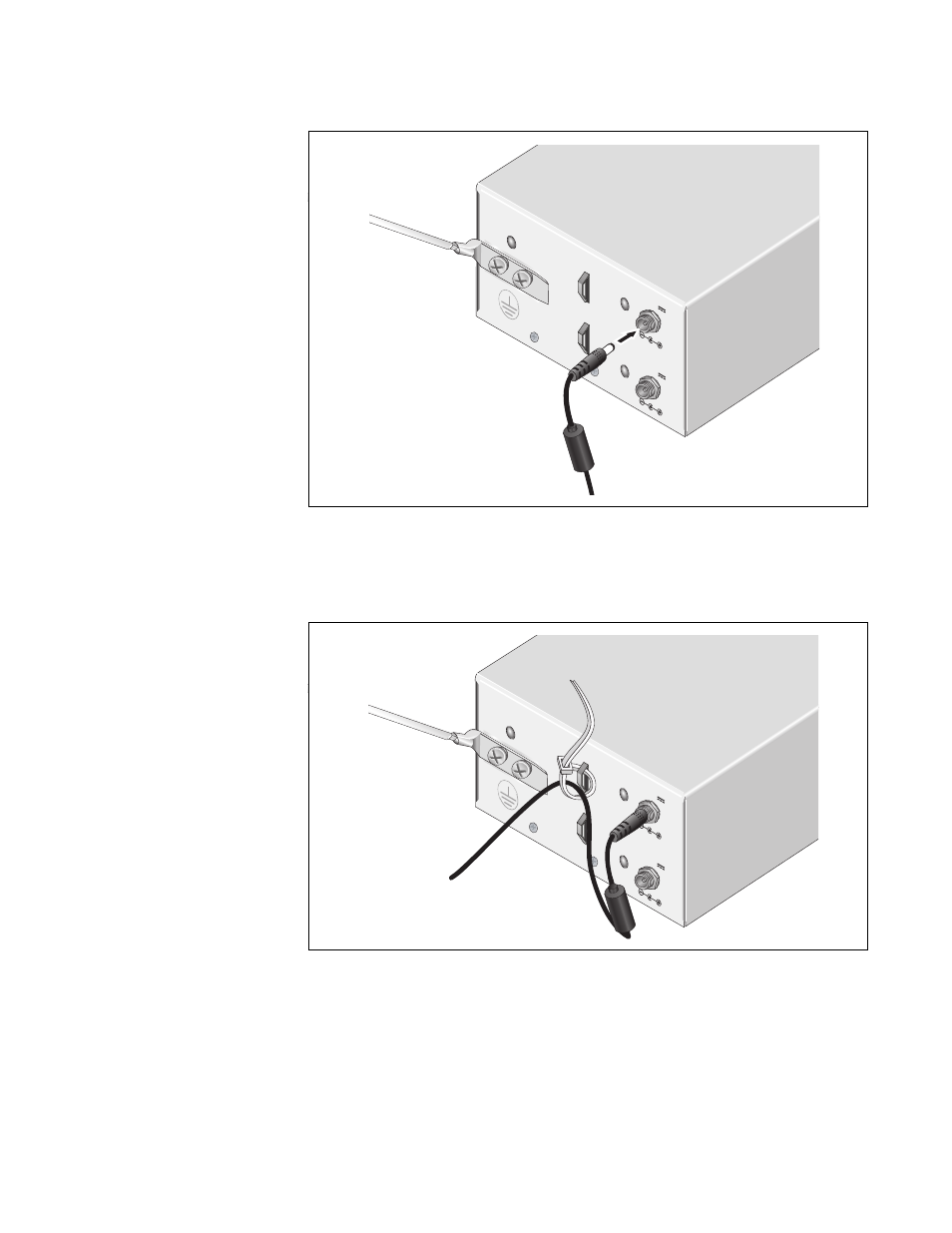

Figure 15. Connecting the Power Cord
3. To prevent accidentally disconnecting the power cord from the
chassis, secure the cord to the tie anchor with a tie wrap.
Figure 16. Securing the Power Cord with a Tie Wrap
