Appendix A: Technical Specifications
28
Certifications
RJ-45 Twisted Pair Port Pinouts
Figure 10 illustrates the pin layout of the RJ-45 connectors and ports.

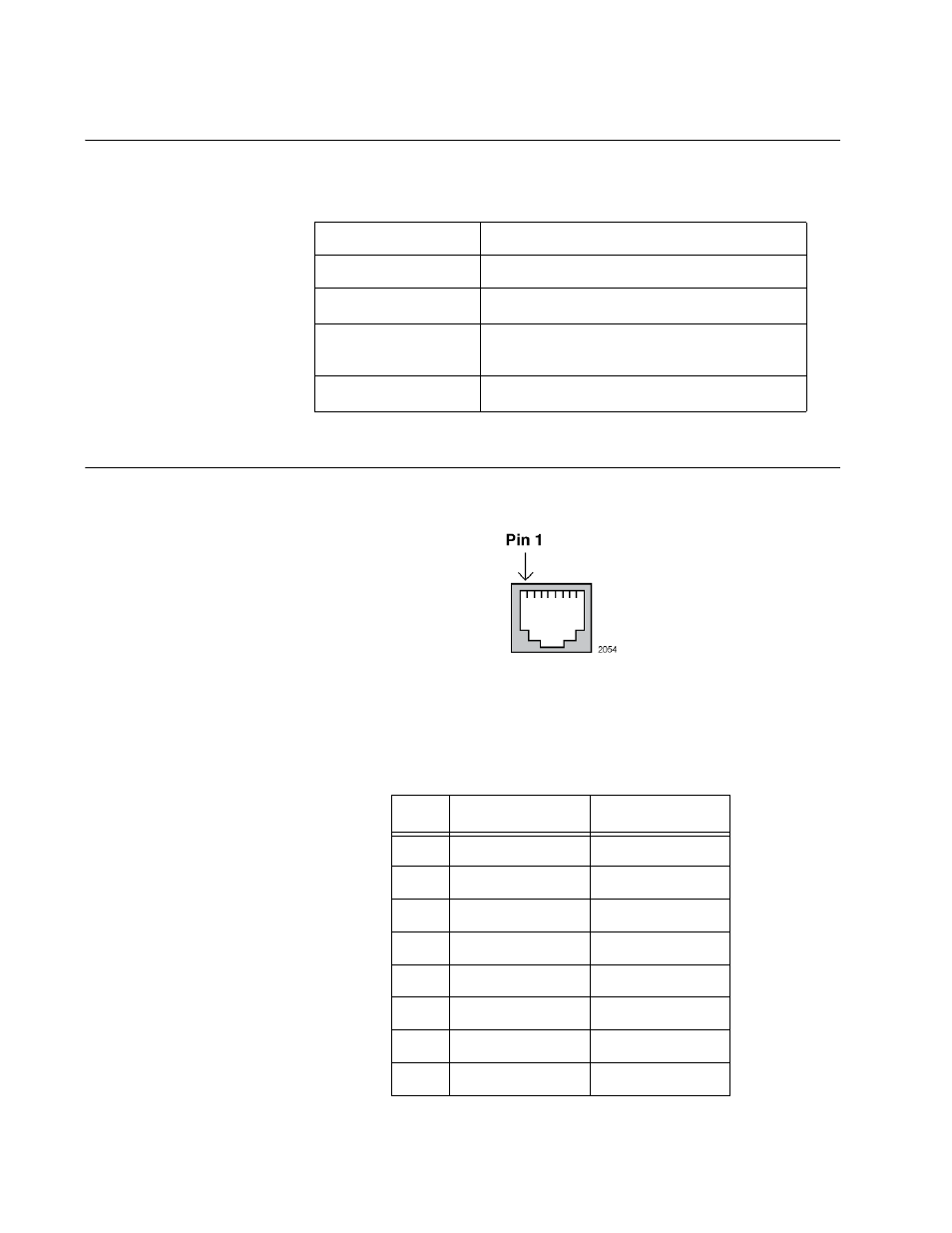

Figure 10. RJ-45 Socket Pin Layout (Front View)
Table 7 lists the pin signals for 10 and 100 Mbps.
Table 6. Certifications
EMI (Emissions) FCC Class B, CE
EMC (Immunity) EN55024
Electrical Safety EN60950-1 (TUV), UL 60950-1 (
C
UL
US
)
Quality and
Reliability MTBF > 116685 hrs @ 25° C
Compliance Marks CE,
C
UL
US
, TUV, C-Tick
Table 7. Pin Signals for 10 and 100 Mbps
Pin MDI Signal MDI-X Signal
1 TX+ RX+
2 TX- RX-
3 RX+ TX+
4 Not used Not used
5 Not used Not used
6 RX- TX-
7 Not used Not used
8 Not used Not used
