AT-6101 PoE Injector Installation Guide
15
LEDs

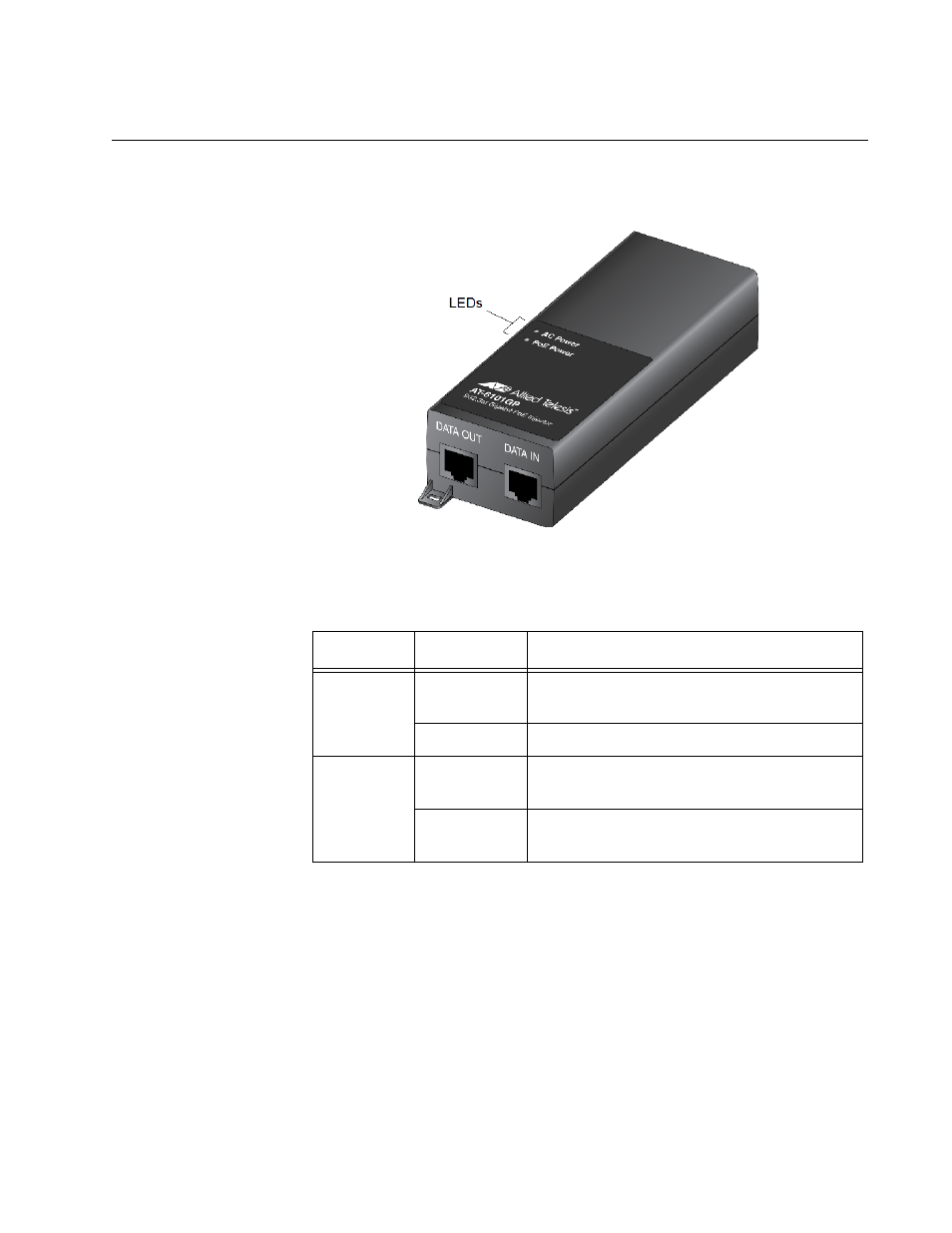

The LEDs of the AT-6101GP PoE Injector are shown in Figure 3 and
described in Table 2.
Figure 3. AT-6101GP LEDs
Table 2. 10/100Base-TX Port LEDs
LED State Description
AC Power
Off No AC power is being provided to the
unit.
Solid Green AC power is being provided to the unit.
PoE
Power
Off The port is not providing PoE power to the
DATA OUT port.
Solid Green The port is providing PoE power to the
DATA OUT port.
