Chapter 1: Overview
14
Hardware Description

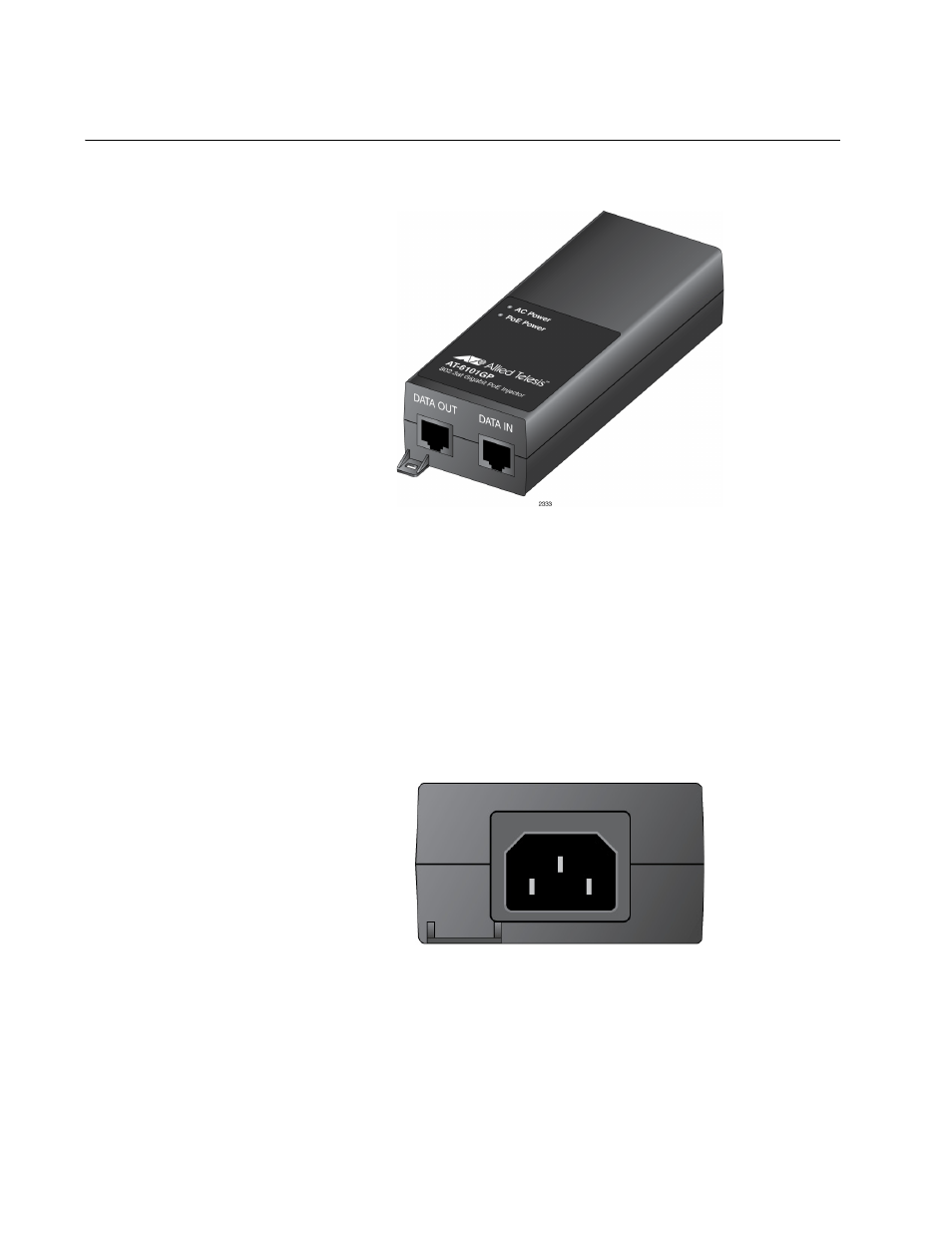

The AT-6101GP PoE Injector is shown in Figure 1.
Figure 1. AT-6101GP PoE Injector
DATA IN Port: This port, shown in Figure 1, in is an RJ-45 Ethernet
connector where data is received and transmitted through the
AT-6101GP PoE Injector.
DATA OUT Port: This port, shown in Figure 1, is an RJ-45 Ethernet
connector where data is received and transmitted through the
AT-6101GP PoE Injector and provides PoE power along with the
Ethernet data to a PoE device.
AC Power Input Connector: This connector, shown in Figure 2,
connects the AC power source to the AT-6101GP PoE Injector.
Figure 2. AC Power Input Connector
