Ac power cord installation – Allied Telesis AT-6101GP User Manual
Page 28
Chapter 2: Installation
24
AC Power Cord
Installation
Depending on your installation, connect the AC power cord as shown in
Figure 8 (table top installation) or Figure 9 (wall installation).

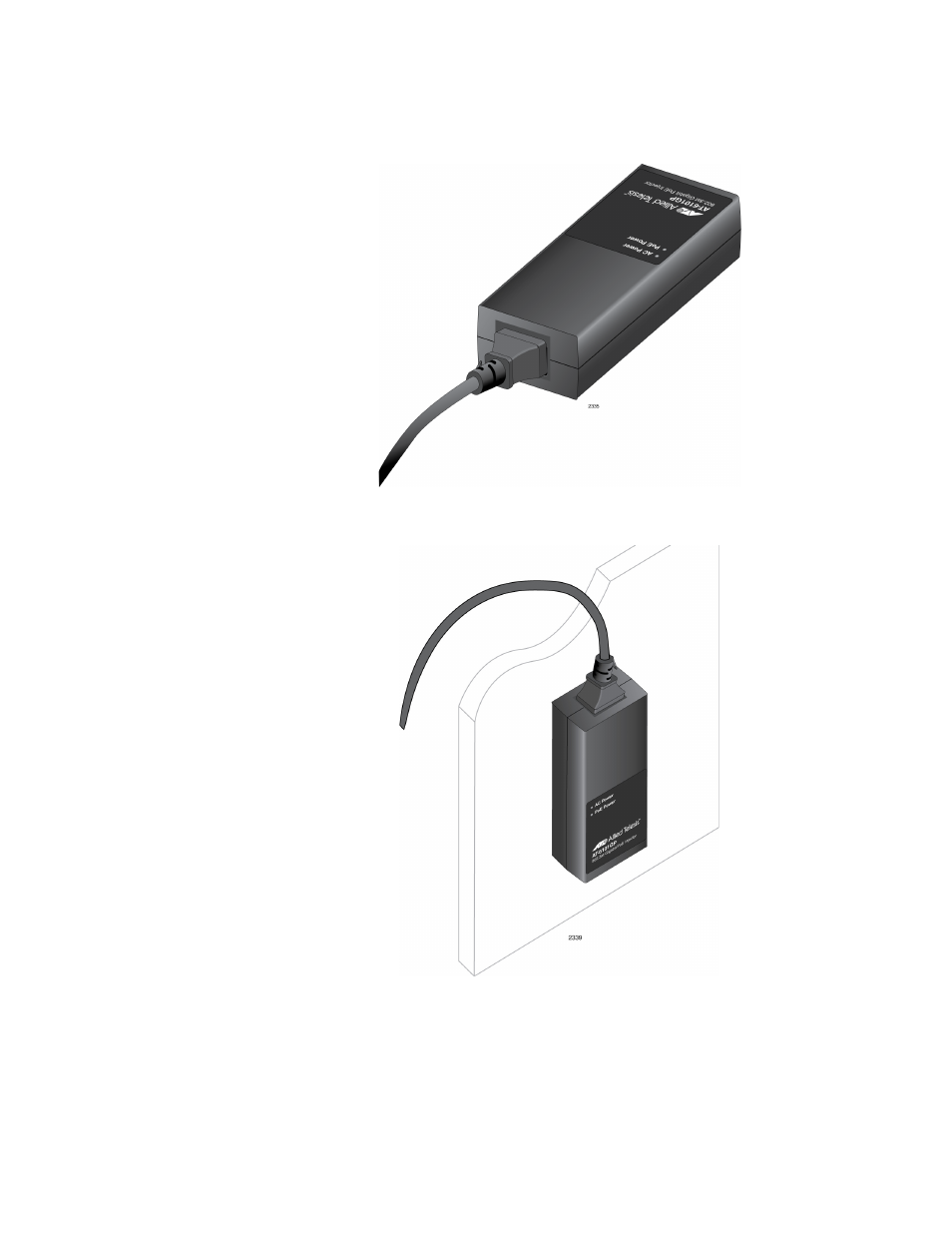

Figure 8. Connecting AC Power Cord for Table Top Installation
Figure 9. Connecting AC Power Cord for Wall Installation
