Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under normal operating conditions for a
period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture or components; it does not cover failure due to
improper installation, misuse, mishandling or damage incurred in transit.
BNSW Series
LED Outdoor Wall Sconce
Models: BNSW20045 LBKCS 120VAC / 60HZ
Page 1 of 1
8060645 Rev 2
Safety Precautions
Read all safety precautions and installation instructions carefully
before installing or servicing this fixture. Failure to comply with
these instructions could result in potentially fatal electric shock
and/or property damage.
It is recommended that a qualified electrician perform all wiring. This
fixture must be wired in accordance with all national and local
electrical codes.
Do not handle any energized fixture or attempt to energize any
fixture with wet hands or while standing on a wet or damp surface or
in water.
This fixture is designed for use in a 120VAC, 60Hz fused circuit. Do
not use luminaire on a dimming circuit.
To reduce the risk of electrical shock, and to assure proper operation,
this fixture must be adequately grounded. To accomplish proper
grounding, there must be a separate ground wire (green) or bare metal
contact (metal conduit) between this fixture and the ground
connection of your main power supply panel. The green ground
screw location is clearly marked on the fixture housing.
This fixture is intended for outdoor lighting in damp locations.
Assembly Instructions
1. Preparing for installation-
A. Disconnect electrical power before installing or servicing any part of this fixture.

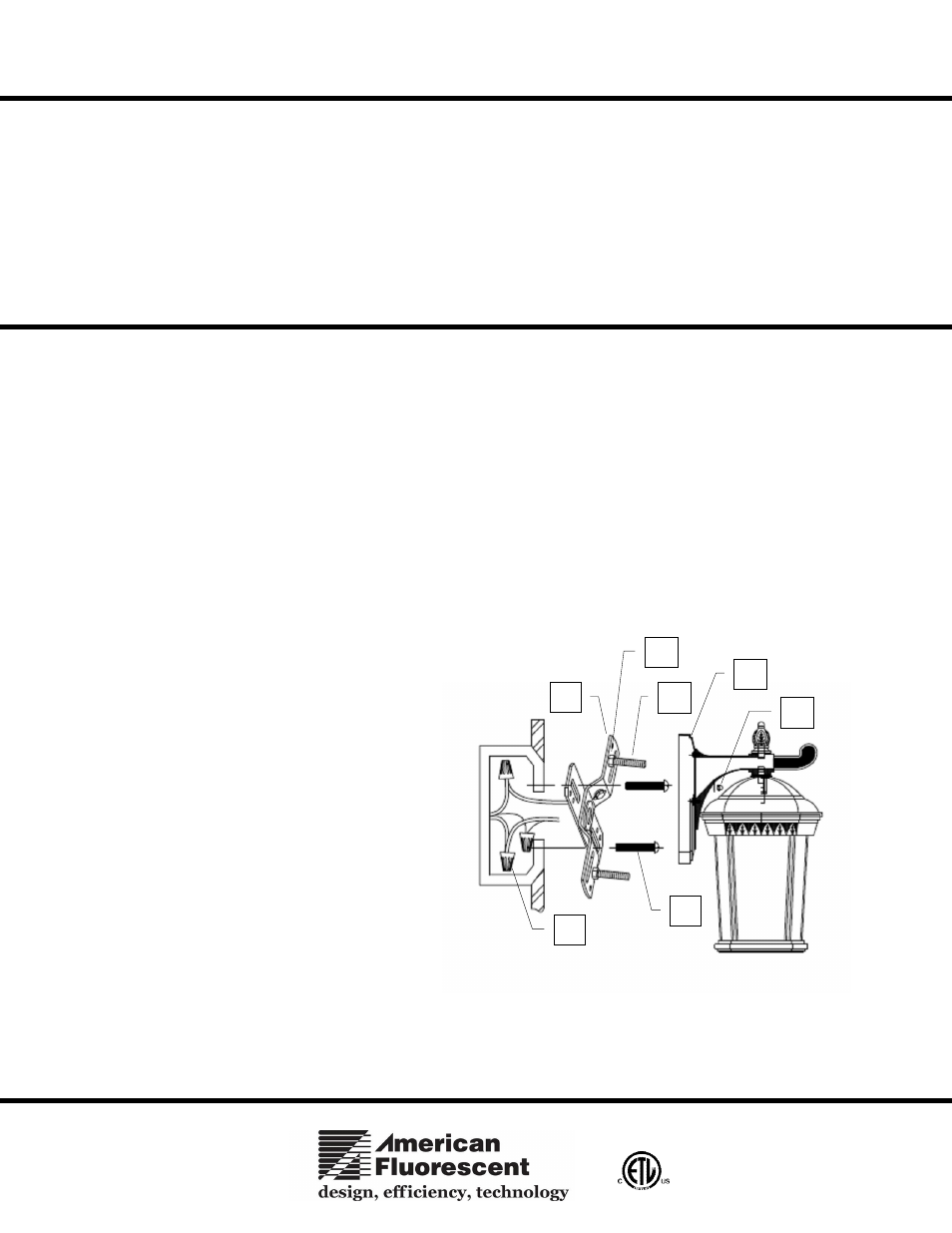

B. Carefully remove the fixture from the carton, and check that all parts are included, as shown in figure below. Be careful not to misplace any
of the screws or parts which are needed for installing the fixture.
2. Wiring- all wiring must take place inside junction box.
Caution: Make sure power is off at fuse or circuit breaker box. Check power wires for damage or scrapes. If power supply wires are within three
inches of ballast use wire suitable for at least 90C (194F). Note: Most dwellings built before 1985 have supply wire rated to 60C. Consult a qualified
electrician before installing.
A. Secure Phillips Head screws (3) to gem bar (1) through the recessed emboss. Head of the screw should be flush to the back side of the gem
bar. Adjust the length of the screws (1) to fit properly the fixture wall plate (4) and secure by tightening the hex nuts (2).
B. Attach gem bar to junction box (not provided) with two provided screws (6). Note: If a 4” square junction box is used. Then a square to
round flat converter must be placed to accept the gem bar provided.
C. Make all wire connections to appropriate wire. Secure with wire nuts (7).
D. The black wire from the fixture is connected to the black wire from power source.
E. The white wire from the fixture is connected to the white (neutral) wire from power source.
F. Attach the ground wire (earth ground) to the cross bar green ground screw.
G. Tuck all connections neatly into junction box.
3. Mounting-
A. Insert Phillips Head screws (3) thru fixture wall plate
(4) and tighten to secure with the two thumb nuts (5).
4. Restore power at fuse or circuit breaker box.
5
2
2
1
2
7
6
4
3
