TYS Series
Fluorescent Wall Sconce
Models 213, 218, & 226
Page 2 of 2 8060610 rev.0
4. Mounting-
A. Adjust threaded stem (8) in gem bar (10) so that approx. 1-3/8” is exposed and tighten with locknut (9). Either use fixture as
a template for mounting bracket plate (17) positioning OR measure 18” from center of threaded stem (8) to the bottom of the
mounting bracket plate (17) and mark for bracket plate mounting hole. Drill 1/8” pilot hole.
B. Attach mounting bracket plate (17) to wall with anchor(s) (if required) and ¾” screw(s) (18) provided.
C. Place the cover plate (20) at the bottom of fixture arm(s) (16) onto mounting bracket plate (17) and
swing up and over stem (8). Secure with thumbscrew (4) and secure the cover plate with the screw
(21) provided.
D. Install wood screw (A) into anti-rotational hole (B) in back pan to prevent the fixture from rotating.
(See Fig 2)
Lamp -Install appropriate lamp(s) (not provided) per label on face of backpan. Insert lamp pins (5) into
lamp holder (12) and press downwards until lamp (5) snaps in place. Lamp Installation (Lamps included
on models ending with “SCTD”).
A. For model with MV at the suffix, use only as required per label on the face of the backpan (7)
fluorescent, quad 4-pin lamps (5). To install, line-up lamp pins with the corresponding holes in the
lamp holder (12) and push lamp into place until a click is heard. Repeat for each lamp.

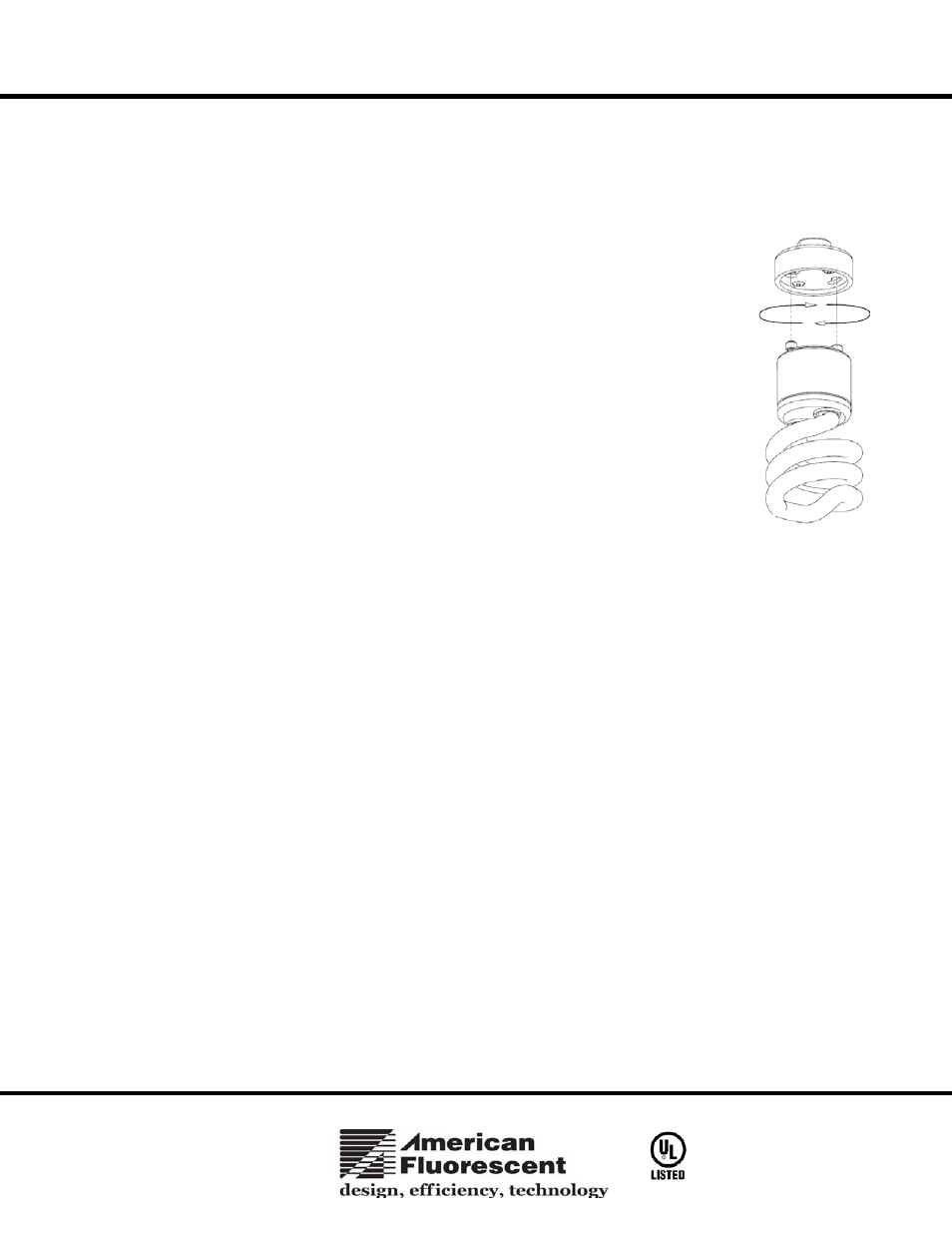

B. For models with SCT at the suffix, (See Fig 3) usable on a dimming circuit with dimmable GU24
base lamps, use only GU24 base lamps (26W max.). To install, line up lamp pins with the
corresponding holes in lamp socket and turn clockwise until a click is heard. Repeat for each lamp.
NOTE: BE CAREFUL TO HOLD THE SOCKET DURING ROTATING LAMP
INSTALLATION/REPLACEMENT
5. Shade -To install the shade assembly (1), align the two holes on the diffuser with the two holes on the top of the backpan (7) and
secure with short screws (6).
6. Restore power at fuse or circuit breaker box.
Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under normal operating
conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture or components;
it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.
FIG 3
