AFX NLS0612118QMVSN - Manual (Page 2)

NLS Series
Nolan Fluorescent Sconce
Models 118, 218, 124
Page 2 of 2 8060519 rev 5
5. Diffuser installation (see below)

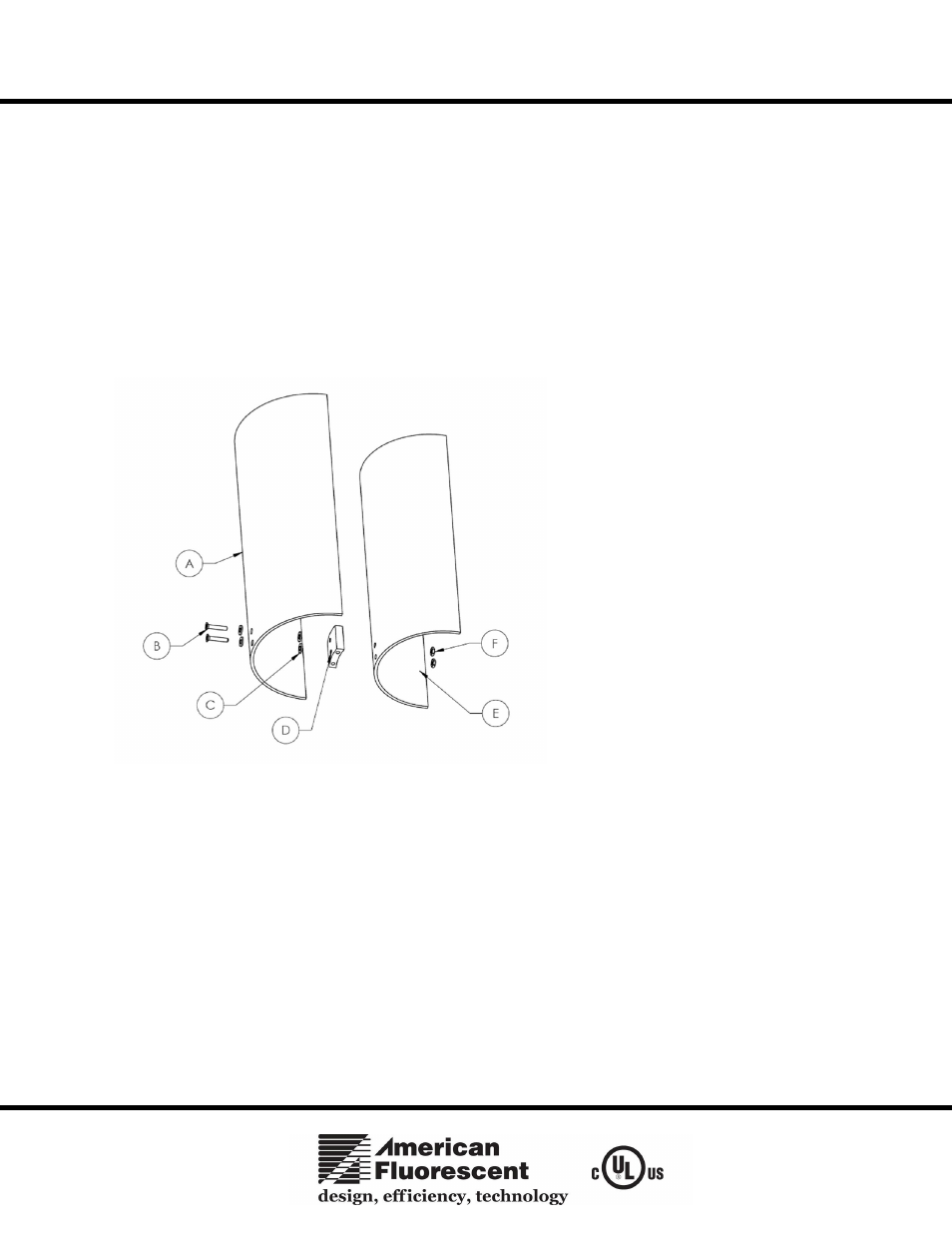

A. To install the diffuser assembly (3), remove the screws (B), rubber washers (C) and nuts (F) from the
bracket (D) and inner diffuser (E). Starting with the glass diffuser (A), place rubber washer (C) onto
screw (B) and insert into hole on glass diffuser (A). Place another rubber washer (C) on the back side of
the diffuser in the bottom hole and then insert into hole on bracket (D) then through the inner diffuser
(E) as shown. Secure with hex-nut. Repeat with other screw placing the rubber washer in the upper hole
of bracket (D). Align the diffuser assembly (3) above arm bracket (2), place diffuser assembly (3) onto
arm bracket (2), align holes on the underside and secure with counter sunk screws (4).
B. Restore power at fuse or circuit breaker box.
Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under normal operating
conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture or components;
it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.
